USB-ME16-FAI-System Manual
10.2 Pin Layout USB-ME16-FAI-System
MPA8I Input to USB-ME16-FAI

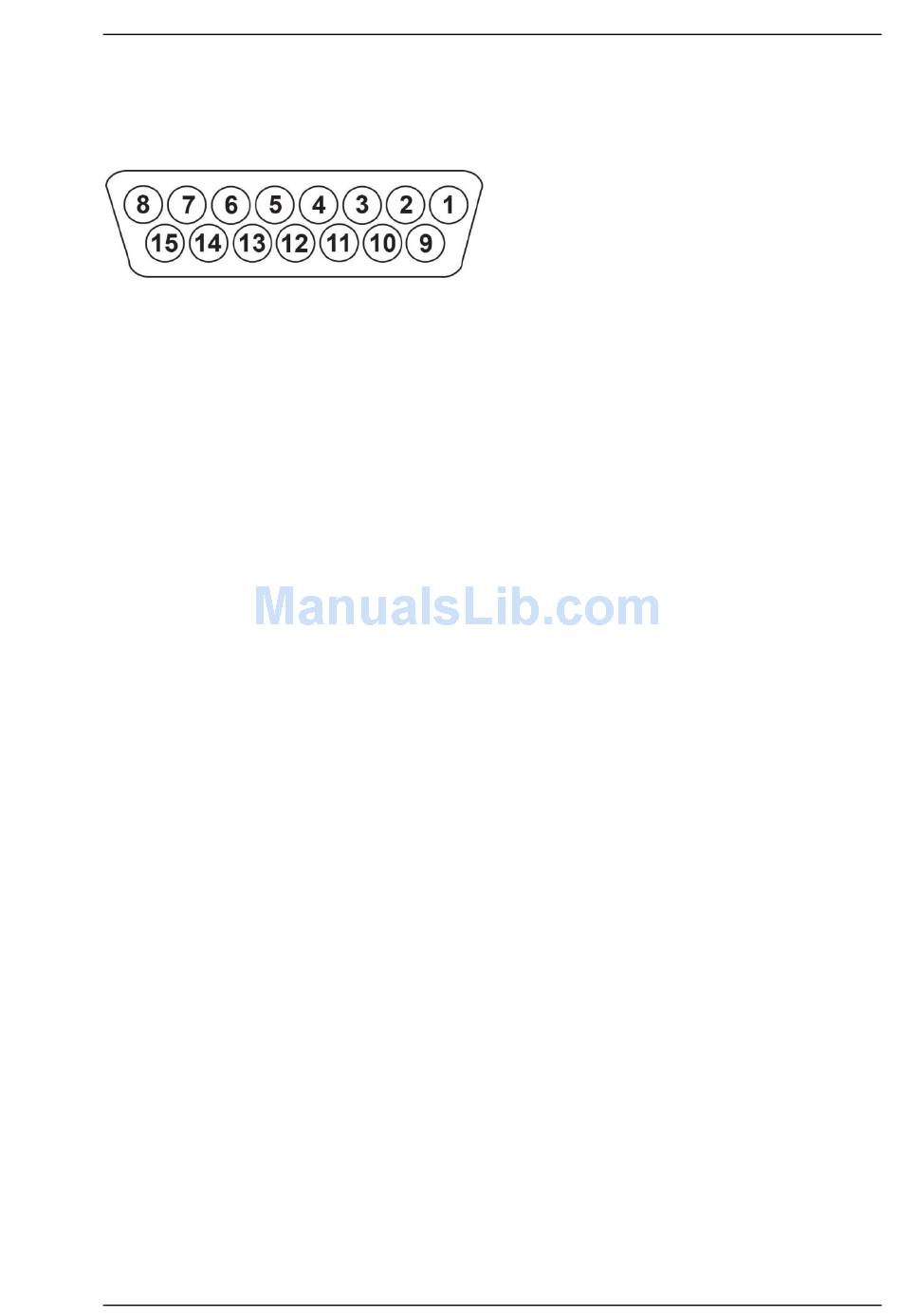

MPA8I Input (Female D-SUB 15 Connector)
Pin
1
Pin
9
Pin
2
Pin 10
Pin
3
Pin 11
Pin
4
Pin 12
Pin
5
Pin 13
Pin
6
Pin 14
Pin
7
Pin 15
Pin
8
The recording channel numbers refer to the channel numbers in the MC_Rack program. Please make sure
that you have selected the USB-ME16-Layout in the MC_Rack program. See the MC_Rack Manual or Help
for details.
34
MPA8I Input 1
GNDP (power ground)
GNDS (signal ground)
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
GNDP (power ground)
GNDP (power ground)
GNDP (power ground)
Positive supply voltage
Negative supply voltage
MPA8I Input 2
GNDP (power ground)
GNDS (signal ground)
Channel 9
Channel 10
Channel 11
Channel 12
Channel 13
Channel 14
Channel 15
Channel 16
GNDP (power ground)
GNDP (power ground)
GNDP (power ground)
Positive supply voltage
Negative supply voltage
