Logik L05CBIG10 Instruction Manual

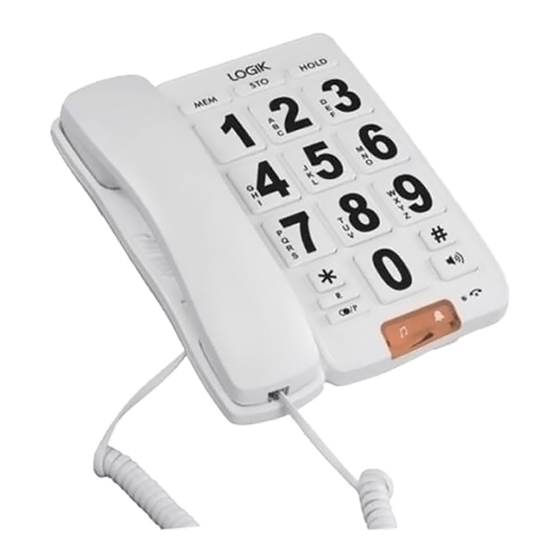

Corded big button telephone with speakerphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
Corded Big Button
Telephone with
Speakerphone
L05CBIG10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L05CBIG10 and is the answer not in the manual?

Questions and answers

MR STUART P BANKS
April 14, 2025

Does the LOGIK L05CBIG10 have I.D. CALLER facility installed

0
1 comments:
Mr. Anderson
April 15, 2025

No, the Logik L05CBIG10 does not have a caller identification (I.D. caller) facility.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Logik L05CBIG10

Summary of Contents for Logik L05CBIG10

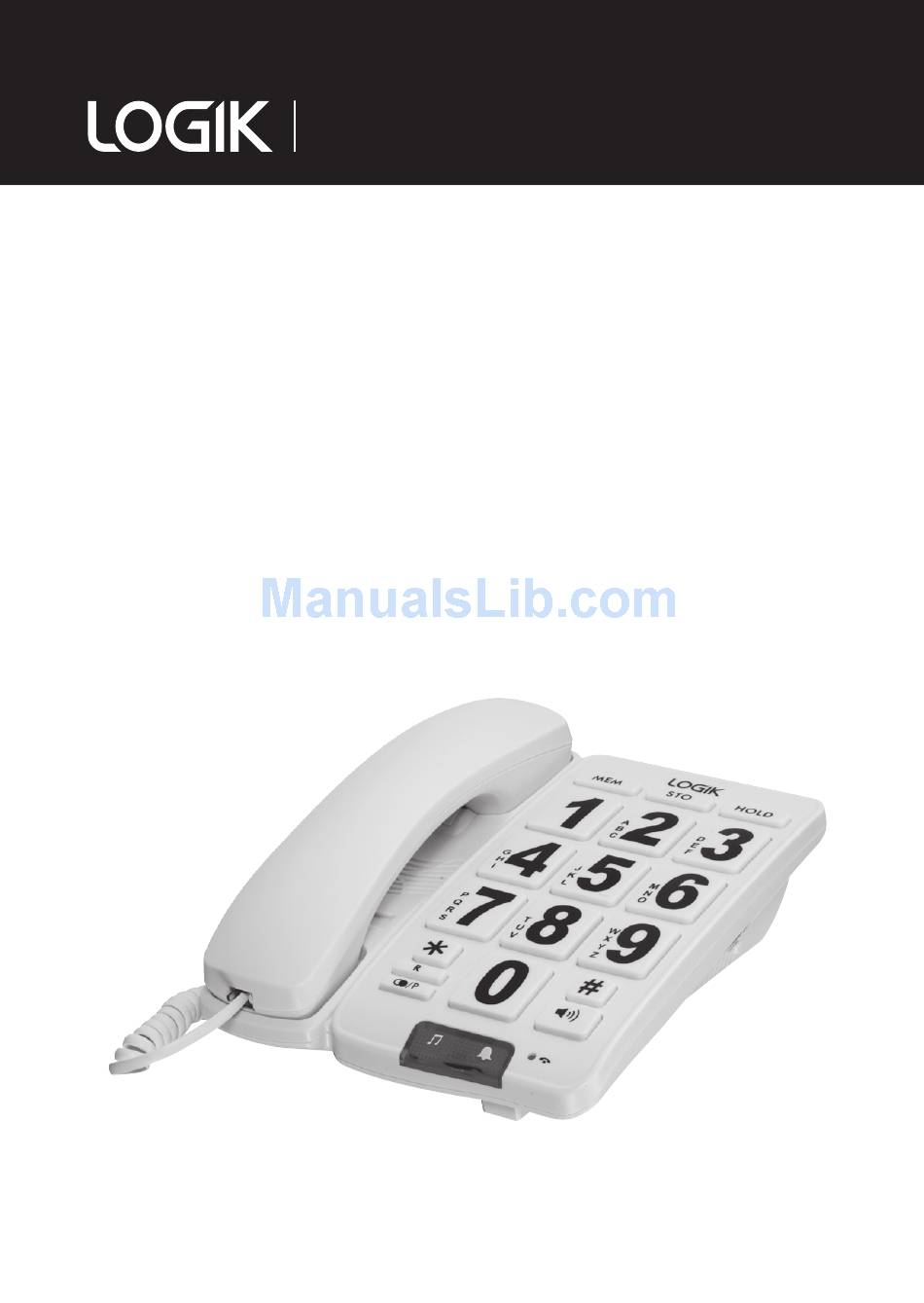

  • Page 1 Instruction Manual Corded Big Button Telephone with Speakerphone L05CBIG10...

  • Page 3: Table Of Contents

    Contents Safety First ....................4 Unpacking ....................6 Getting Started ................... 7 Locating the Base Unit ....................7 Wall Mounting (optional) ................8 Control Overview ..................10 Operation ....................12 To Make a call ......................12 To Answer a Call ......................12 To Adjust the Handset Volume ................

  • Page 4: Safety First

    Safety First For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the telephone and keep them for future reference. • Retain the manual. If you pass the telephone onto a third party, make sure to include this manual.
  • Page 5 CAUTION: Installation • Never install telephone wiring during a lightning storm. • Never install a telephone wall socket in wet locations unless it is specifically design for wet locations. • Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. • Use caution when installing or modifying telephone lines.

  • Page 6: Unpacking

    Thank you for purchasing your new Logik Corded Big Button Telephone with Speakerphone. We recommend that you spend some time to read this Instruction Manual in order to fully understand how to install and operate it. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

  • Page 7: Getting Started

    Getting Started Locating the Base Unit 1. The base unit should be placed on a level surface, in a position where: • The telephone line cord will reach your telephone line wall socket. • It is not close to a sink, bath or shower, or anywhere else where it might get wet.

  • Page 8: Wall Mounting (Optional)

    Wall Mounting (optional) Before you drill any holes, make sure there is no electrical wiring or pipes hidden in the wall. 1. Mark two points on the wall that are 80mm apart to lay the fixing centres as shown below. Wall Wall plug Screw...
  • Page 9 6. You may need to remove the telephone from the wall and tighten the screws so that the base unit is securely fixed and does not wobble. Place the Handset on the base unit with the parking hook on the base unit arranged to fit in the parking recess under the earpiece on the handset.

  • Page 10: Control Overview

    Control Overview...
  • Page 11 1. Switch Allows you to make a follow-on call without replacing the handset. 2. Wallmount hook Allows your handset to rest securely on the base unit when it’s wall mounted. 3. Speaker For the speakerphone function. 4. Handset volume adjust switch Memory button Store button Hold button...

  • Page 12: Operation

    Operation To Make a call 1. Lift the handset, listen for the dial tone. 2. Dial the telephone number you wish to call. 3. To end the call, return the handset to the base unit. To Answer a Call When the phone rings, lift the handset or press the button to answer the call.

  • Page 13: Mute Function In Handset Mode

    Mute Function in Handset mode 1. During a call press the button. When the phone is holding, the person at the other end of the call can hear music from the phone, but cannot hear you. You can hear the music, as well, but can also hear the caller if they speak.

  • Page 14: Dial Out Stored Number (0-9) Two-Touch Memories

    Dial out Stored number (0-9) two-touch memories 1. To dial a number stored in two-touch memory (0-9). 2. Lift up the handset. 3. Press the button. 4. Key in the memory location number (0-9). 5. The number dials automatically.

  • Page 15: Helpful Information

    Helpful Information • Environment Place the unit in a room where the temperature is between 0°C and 40°C. Allow 5cm clearance around the unit for proper ventilation. Avoid excessive smoke, dust, mechanical vibration, shock, or direct sunlight. • Cleaning Wipe the unit with a soft cloth. Do not use benzine, thinner, or any abrasive cleaners.
  • Page 16 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
