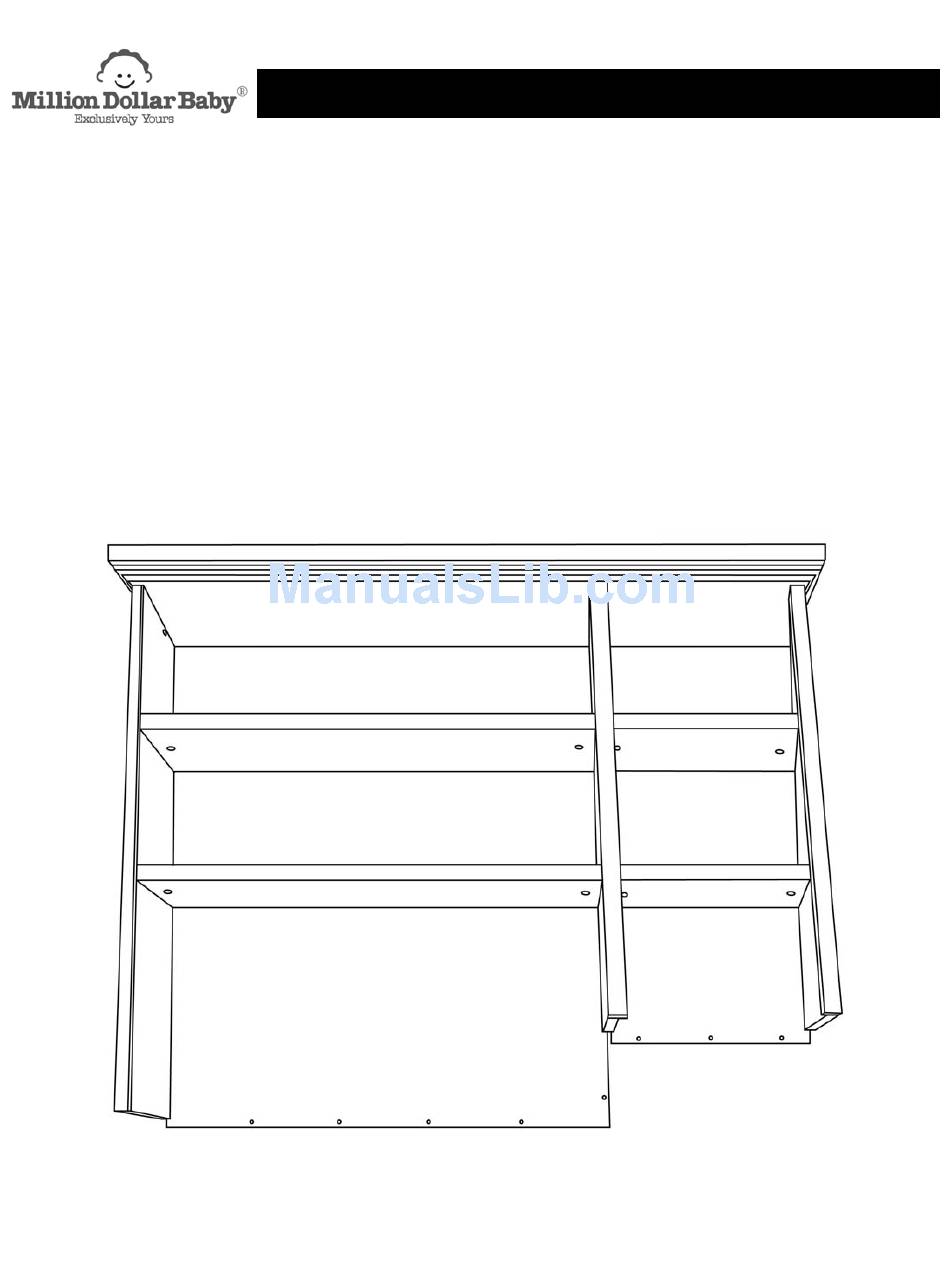

Emily II Hutch (M4749) Assembly and Operation Manual
Congratulations on purchasing this product. This product will provide many years of service if you adhere to the following guidelines for
assembly, maintenance, and operation. This product is for residential use only. Any institutional use is strictly prohibited.
Please be sure to follow the instructions for proper assembly. Use a Phillips head screwdriver for assembling the product in addition to
the Allen wrench included in the hardware box. Do not use power screwdrivers. All of our products are made from natural woods.
Please understand that natural woods have color variations which are the result of nature and not defects in workmanship.
DO NOT SUBSTITUTE PARTS. ALL MODELS HAVE THE SAME QUANTITY OF PARTS AND HARDWARE. YOUR MODEL MAY
LOOK DIFFERENT FROM THE ONE ILLUSTRATED DUE TO STYLISTIC VARIATIONS.
