Please ensure that you read this manual thoroughly before you install this unit. In conjunction
with this Rev Limiter, we recommend the use of a high quality shift light, such as the Omex
Shift Light Pro or Sequential.
This Rev Limiter is suitable for most 4-stroke petrol engines and most ignition types, but not
capacitor discharge (CDi) systems or positive earth vehicles. It should only be used to limit
engine revs, never a vehicle's road speed.
COIL POSITIVE (+)
COIL NEGATIVE (-)
EARTH
ORANGE
BUTTON
Ensure that the ignition is turned off before starting installation.
Remove the backing from the adhesive pad on the back of the unit and mount it to a clean,
flat, grease-free surface. Keep the unit away from hot or exposed areas. Ensure that the
unit and all wires are kept as far as possible from the HT parts of the ignition system.
The unit is connected to the engine using the attached colour coded wires and the supplied
cable connectors.
BLUE WIRE
RED WIRE
BLACK WIRE
Keep wires clear of hot or rotating parts using the supplied cable ties.

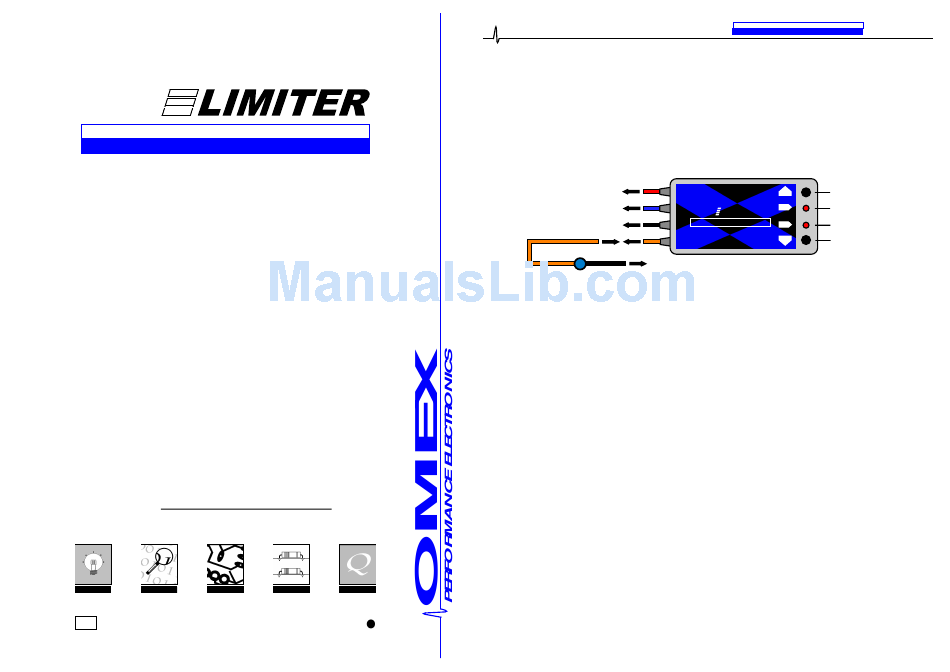

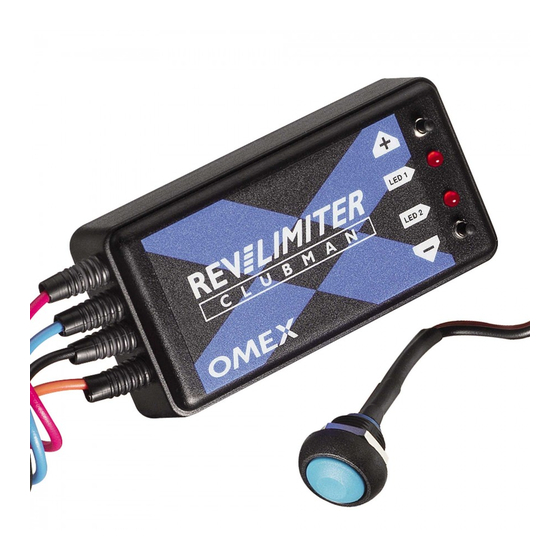

The two buttons and LED indicators allow you to set and control all the functions on your
Rev Limiter Clubman. During manufacture, the unit is programmed to the most common
settings. These may be changed by the following procedures:-
WWW.RACE-SHOP.SK
WITH LAUNCH CONTROL
RED
BLUE
REV LIMITER
BLACK
C L U B M A N
ORANGE
OMEX
BLACK
EARTH
INSTALLATION
Connect this to the coil negative (-) terminal
Connect this to the coil positive (+) terminal. If this is not easily accessible
then this wire can be connected to any positive feed that is switched by
the ignition switch.
Connect this wire to any good electrical connection on the car bodywork.
A self-tapping screw and spring washer are supplied for this purpose if no
bolt heads are within easy reach of the wire. It is essential that a good
quality connection is made.
SETTING UP
Orange: 0915 44 11 22
SINGLE COIL
+
'+' BUTTON
LED 1
LED 1
LED 2
LED 2
-
'-' BUTTON
