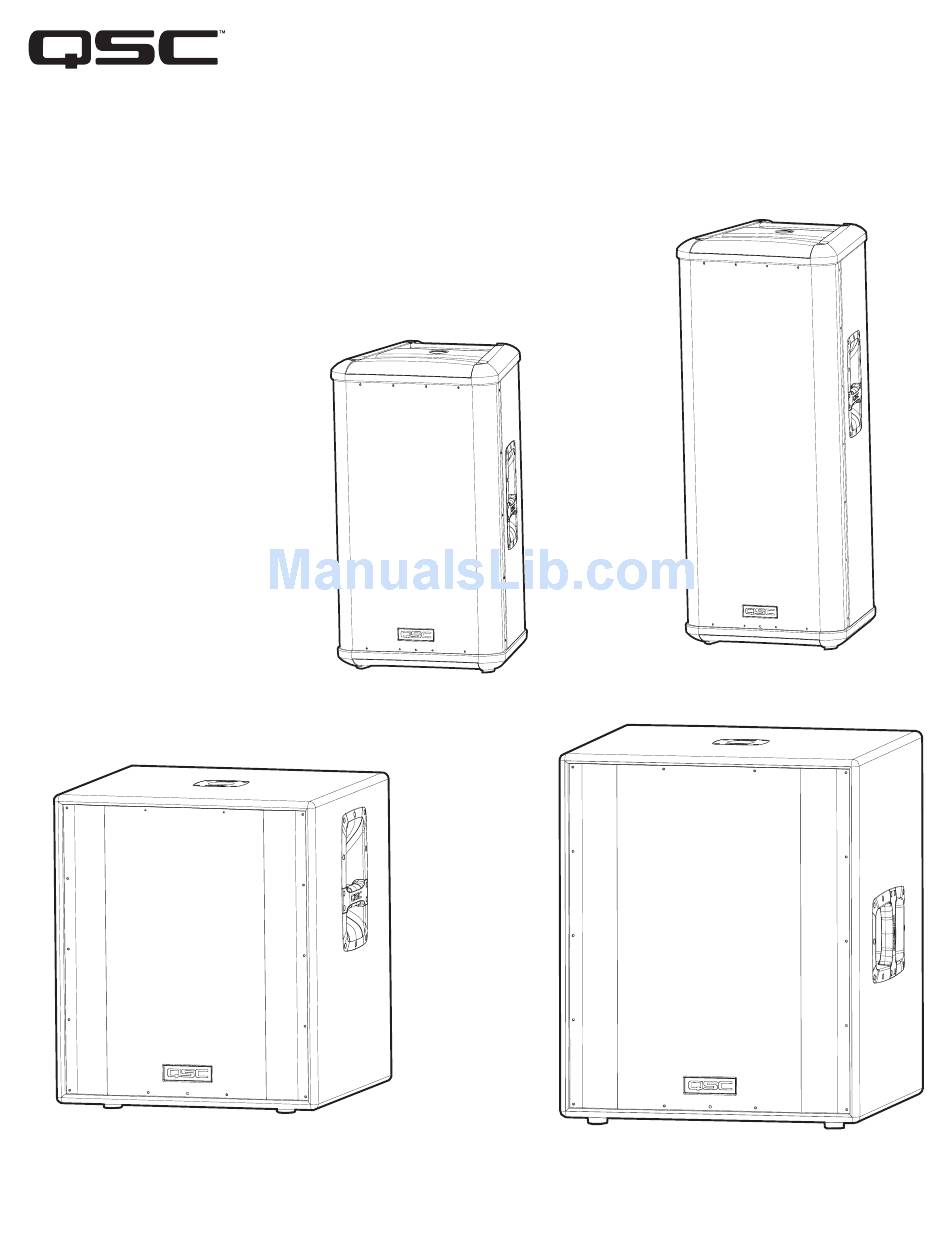

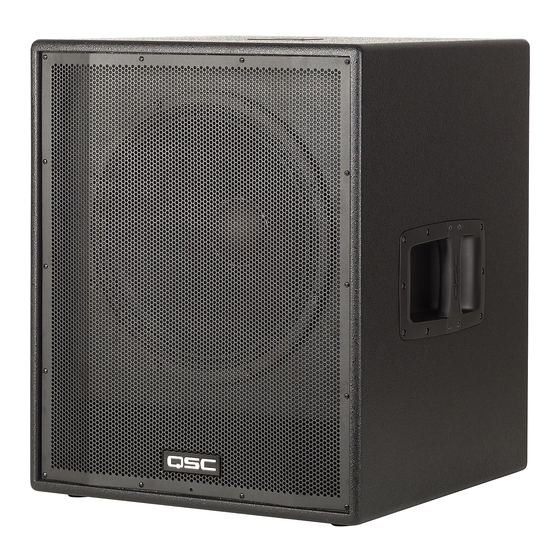

HPR Series Powered Loudspeaker Products
User Manual
HPR153F
HPR152F
HPR151W
HPR181W
*TD-000212-01*
TD-000212-01 rev.D
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number (714) 754-6175 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
15-inch three-way
15-inch two-way
15-inch subwoofer
18-inch subwoofer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPR151W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QSC HPR151W

Summary of Contents for QSC HPR151W

  • Page 1 Main Number (714) 754-6175 or toll free (USA only) (800) 854-4079 Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834 HPR Series Powered Loudspeaker Products User Manual HPR153F 15-inch three-way HPR152F 15-inch two-way HPR151W 15-inch subwoofer HPR181W 18-inch subwoofer *TD-000212-01* TD-000212-01 rev.D...
  • Page 2 18-HPR152F WARNING! Do not use a loudspeaker support pole longer than 26” (660mm) when supported by QSC’s HPR151W or HPR181W subwoofer. 19- Do not use any HPR product oriented horizontally. Horizontal orientation can cause overheating and thermal limiting. The cooling fins on the am- plifier module must be vertically oriented in order to efficiently dissipate the heat generated by the amplifier.
  • Page 3 Introduction Congratulations and thank you for your purchase of this professional, powered loudspeaker product. To get the most from your invest- ment, we recommend you review all the information provided in this User Manual. The HPR self-powered loudspeakers provide excellent sound quality, durable construction and clean, efficient, on-board amplification. Amplifiers are matched to the drivers with active equalization and precise crossover control.
  • Page 4 HPR151W Features 1- Pole Cup 2- Handles (2 each) 3- Grill Full Range Amplifier Detail 1- Input and Output Connector(s) 2- Gain Control 3- Power, Signal, and Clip LED Indicators 4- Front LED Switch 5- 100 Hz Low-Cut Filter Switch (Full Range Only) 10- Phase switch (Subwoofer Only)

  • Page 5: Installation

    There is no pole cup provided. HPR151W: The HPR151W was designed to sit on the floor or on the stage. A pole cup on the top of the enclosure accepts 35mm loudspeaker mounting poles. Rubber feet on the enclosure’s bottom help to minimize enclosure move- ment during operation.

  • Page 6: Power Switch

    AC Mains Connect AC power to the IEC socket on the back of the amplifier by locating the IEC connector-end of the AC power cord and inserting it fully into the IEC inlet on the power amplifier module. NOTE: Turn off the AC power switch before connecting AC power.

  • Page 7: Output Connections

    HPR152F and HPR153F: Insert the male XLR input into the jack marked FULL RANGE LINE IN. Ensure the connector is fully seated. HPR151W and HPR181W: Insert the left channel’s XLR input into the left channel’s (L) FULL RANGE LINE IN connector. Insert the right channel’s XLR connector into the right channel’s (R) FULL RANGE LINE IN connector.

  • Page 8: Gain Control

    Output Connections (continued) HPR151W and HPR181W FULL RANGE LINE OUT: Use the outputs marked FULL RANGE LINE OUT (Left and/or Right) when connecting to down-stream powered loudspeakers which accept full-range audio or have their own filtering. 100 Hz LOW-CUT: Use the outputs marked 100 Hz LOW-CUT OUT (L and/or R) when connecting to downstream powered loudspeakers that have no low-frequency filtering but the low-frequency roll-off is desired.
  • Page 9 For applications where the LED may distract audience members, it is easily disabled by sliding the FRONT LED switch to the OFF position. Phase Switch (HPR151W and HPR181W) When all loudspeakers in system are properly phased, a positive polarity drive signal results in a forward excursion of all loudspeaker cones.
  • Page 10 SIGNAL Indicator LED The green SIGNAL indicator alerts the user to the presence of an input signal to the HPR loud- speaker. Normal Indication The green SIGNAL indicator illuminates when the input signal exceeds -25 dB. If No Indication Check Gain settings and increase gain if necessary. Check input connections and audio source for signal.

  • Page 11: Application Example

    Application Example #1 This example shows a two-channel (stereo) setup utilizing two top-boxes. Audio signals for the Left and Right channels are supplied by the mixer console. This signal source can be just about any variable-output level audio source, such as DJ mixers, profes- sional CD players, or computer-based audio signal sources.
  • Page 12 Mixer or Other Audio Source Application Example #2 physical diagram. Channel 1 Left Channel HPR151W or HPR181W Application Example #2 hookup diagram. Use only high-quality balanced cables for interconnecting the audio equipment. Ensure the top-boxes have their 100 Hz LOW-CUT FILTER switched ON when connecting to the subwoofer’s FULL...
  • Page 13 Left (L) channel connector, no signal will reach the top-box (no sound from the top-box). Application Example #3 physical diagram. Channel 1 Left Channel HPR152F or HPR153F HPR151W or HPR181W Mixer or Other Audio Source Channel 2 Right Channel HPR151W or HPR181W...
  • Page 14 Left (L) channel connector, no signal will reach the top-box (no sound from the top-box). HPR152F or HPR153F Channel 1 Left Channel HPR151W or HPR181W Channel 2 Right Channel HPR152F or HPR153F...
  • Page 15 Dimensions, HPR152F Dimensions, HPR153F...
  • Page 16 Dimensions, HPR151W Dimensions, HPR181W...
  • Page 17 Specifications, Full Range Models HPR152F Frequency Response, ±6dB 53-18k Hz Frequency Range, -10dB limit 50-20k Hz Maximum Peak SPL 135dB Nominal coverage, H x V 90°x60° Directivity Index Directivity Factor Transducer Description 15” (381mm) transducer with 3” (76mm) voice coil 1”...
  • Page 18 5- Input Sensitivity: The sine-wave input voltage required to reach amplifier clipping, measured within the frequency range used to determine Maximum Peak SPL, with the gain on “normal” and no gain reduction due to limiting. 6- Input Headroom/Clipping: Maximum input voltage. 7- Input Connector/Impedance: RF shunt capacitance should not reduce impedance by more than 30% at 20k Hz. HPR151W 47-110 Hz 43-140 Hz 133dB Not applicable (N/A) 15”...
  • Page 19 Notes:...
  • Page 20 Warranty (USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, Inc. is not liable for any damage to amplifiers or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
