Operating instructions
Internet Radio RF-IR-PSOCKET1
Item No. 1581726

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-IR-PSOCKET1 and is the answer not in the manual?

Questions and answers

Related Manuals for Renkforce RF-IR-PSOCKET1

Summary of Contents for Renkforce RF-IR-PSOCKET1

  • Page 1 Operating instructions Internet Radio RF-IR-PSOCKET1 Item No. 1581726...

  • Page 2: Table Of Contents

    Table of contents Page Introduction ................................3 Explanation of symbols ............................3 Intended use ................................4 Delivery content ..............................4 Safety instructions ...............................5 Features and functions ............................6 Components and controls ............................7 Electrical connection ............................8 Using the radio ..............................8 a) Basic functions ..............................8 b) Initial setup ..............................9 c) Menu overview ............................10 d) Internet radio mode .............................15 e) Media center mode ............................17...

  • Page 3: Introduction

    1. Introduction Dear Customer, thank you for purchasing this product. This product complies with the statutory national and European specifications. To maintain this status and to ensure safe operation, you as the user must observe these operating instructions! These operating instructions are part of this product. They contain important notes on commissioning and handling.

  • Page 4: Intended Use

    3. Intended use This product is designed to play Internet radio stations. You can also use it to stream music over your home network via UPnP and DLNA. It features a clock with an alarm function. The radio connects to the Internet via your home Wi-Fi network. This product is only designed for connection to a 100–240 V/AC wall-mounted mains socket.

  • Page 5: Safety Instructions

    5. Safety instructions Read the operating instructions and safety information carefully. If you do not follow the safety instructions and information on proper handling in this manual, we will assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee. •...

  • Page 6: Features And Functions

    • Always read these operating instructions before using, installing, configuring or servicing this product. • Never place objects containing liquid (e.g. glasses, buckets, vases or plants) on or directly next to the device. Liquids may seep into the casing and impair the electrical safety of the device. There is also the risk of a fire or a fatal electric shock.

  • Page 7: Components And Controls

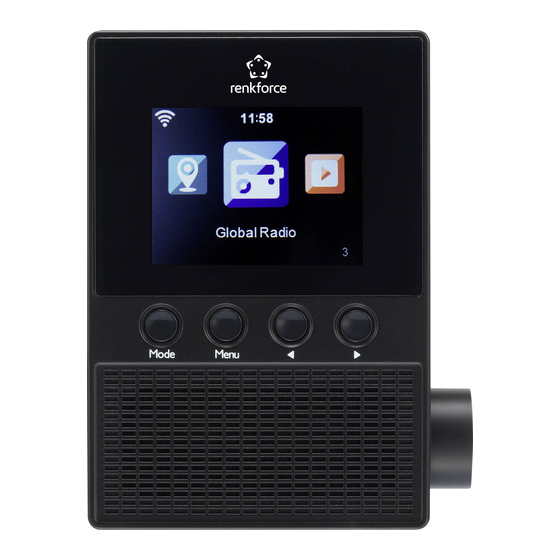

    7. Components and controls 1 Display 2 MODE button 3 MENU button button button 6 STANDBY button 7 PRESET button 8 ALARM button 9 SLEEP button 10 NAVIGATE/VOLUME control...

  • Page 8: Electrical Connection

    8. Electrical connection Make sure that the voltage indicated on the product corresponds with your household mains voltage. Never attempt to operate the device with any other type of voltage. Exercise caution when handling power adapters and mains connections. Mains voltages can cause fatal electric shocks.

  • Page 9: B) Initial Setup

    b) Initial setup “WELCOME” will appear on the display when you switch the radio on for the first time, or when you switch it on after disconnecting it from your home network. Wait for a few seconds while the radio turns on. The progress bar indicates the loading status.

  • Page 10: C) Menu Overview

    - Select “YES” if you want to configure the Wi-Fi connection manually. The Internet radio will automatically search for available Wi-Fi networks. Use the NAVIGATE/VOLUME control (10) to select the desired network. Press the NAVIGATE/VOLUME control (10) to confirm your selection. Enter the password for the selected Wi-Fi network.
  • Page 11 “MEDIA CENTER” Refer to “Media center mode” for a detailed description of this mode. • “UPnP” (Universal Plug and Play) Use this menu option to access your media server. The server must support UPnP. When you select this option, the radio will display a list of available servers.
  • Page 12 • “NETWORK” - “WIRELESS NETWORK CONFIGURATION” Use this menu option to search for wireless access points and connect to a network. Refer to “Initial setup” and follow the instructions for the “YES” option to connect to the desired network. - “WIRELESS NETWORK (WPS PBC)” Use this menu options to enable WPS and connect the radio to your router.
  • Page 13 • “ALARM” Refer to “Alarm” for detailed instructions on how to configure the alarm settings. - “ALARM 1 (TURN OFF)” Alarm 1 settings. - “ALARM 2 (TURN OFF)” Alarm 2 settings. - “NAP ALARM (TURN OFF)” This feature turns on the alarm after a preset duration (e.g. when you take a midday nap). - “ALARM VOLUME”...
  • Page 14 • “BUFFER” Use this menu to buffer radio reception for 2,4 or 8 seconds. The Internet radio will store audio data for a few seconds to prevent interrupted playback. • “WEATHER” - “SET LOCATION” Use this menu to select the city for which you want to view weather data. Select the desired continent, and then select the country and city.

  • Page 15: D) Internet Radio Mode

    • “SOFTWARE UPDATE” This feature is only designed for use by service technicians and for factory configuration. • “RESET TO DEFAULT” Use this menu option to reset the Internet radio to the factory settings. Select “YES” to proceed or “NO” to exit. “LOCAL RADIO”...
  • Page 16 • Example: Use the NAVIGATE/VOLUME control (10) to navigate to “RADIO STATION/MUSIC”, and then press the NAVIGATE/VOLUME control to confirm your selection. • A number of subcategories will appear on the display. Use the NAVIGATE/VOLUME control (10) to navigate through the subcategories, and then press to confirm your selection.

  • Page 17: E) Media Center Mode

    e) Media center mode Media center mode allows you to stream music from a computer on your home network (UPnP playback). Switching to Media center mode • To switch to Media center mode, scroll to “MEDIA CENTER” using the NAVIGATE/VOLUME control (10) or the (4) and (5) buttons.

  • Page 18: F) Dlna Playback

    Creating a playlist • To add the current track to your playlist, hold down the NAVIGATE/VOLUME control (10) until a symbol appears on the display (1). • The current track will be added to the playlist. • To add another track to the playlist, select the desired track and hold down the NAVIGATE/VOLUME control (10) until a symbol appears to the left of the time display.

  • Page 19: G) Alarm

    g) Alarm Configuring the alarm settings • Press the ALARM button (8) to access the alarm menu. • Alternatively, go to the “CONFIGURATION” menu, and then select “ALARM”. Setting the alarm The radio has two separate alarms. Each alarm is configured in the same way. •...

  • Page 20: H) My Mediau

    h) My mediaU You can use your computer to create your own list of favourite radio stations. Proceed as follows: • Go to the “CONFIGURATION” menu, and then select “MANAGE MY mediaU”. • Change the setting from “DISABLE” to “ENABLE”. •...

  • Page 21: Troubleshooting

    11. Troubleshooting The radio does not connect to your Wi-Fi network. • Check whether another device (e.g. a computer or tablet) can connect to the Internet over the Wi-Fi network. • Check whether your router is running a DCHP server and that you have configured the static IP address (including the subnet mask and standard gateway) correctly.

  • Page 22: Maintenance And Cleaning

    The radio keeps buffering and playback is intermittent. • The radio streams Internet radio stations over a broadband connection. If your Internet bandwidth is too low or other users are downloading large amounts of data, playback may be intermittent. • Check your Internet connection and try switching to another station. “Buffering”...

  • Page 23: Technical Data

    14. Technical data Operating voltage ..........100–240 V/AC 50/60 Hz Power consumption ..........Max. 3.5 W Output power ............2 W Display ..............240 x 320 pixel TFT colour screen Alarms ..............2 + NAP alarm Transmission frequency........2.4 GHz Transmission power..........Max. 17 dBm Dimensions ............89 x 82 x 117 mm Weight ..............230 g Operating conditions .........0 to +40 °C / 10–95% rel.
  • Page 24 This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.
