OPERATOR'S MANUAL & PARTS LIST
MODEL – THLCVCM
PORTABLE VERTICAL ELECTRIC CEMENT MIXER
Spares & Support: 01793 333212
Please read & understand this manual, paying particular attention to the safety
instructions, before use.
The manufacturer reserves the right to change the product specification and
livery according to continued product improvements.
193858001
01/09/2015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for The Handy THLCVCM
Summary of Contents for The Handy THLCVCM

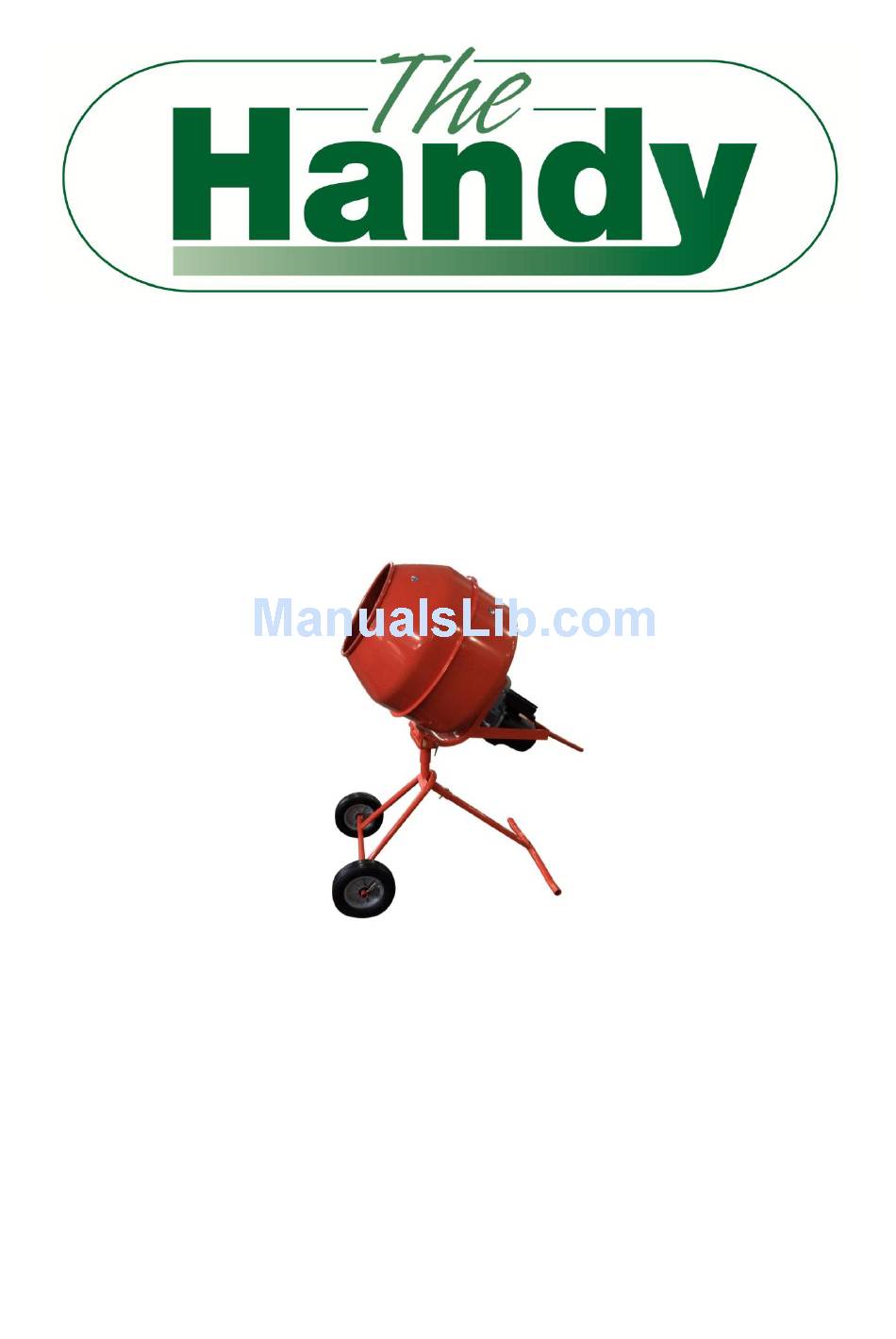

- Page 1 OPERATOR’S MANUAL & PARTS LIST MODEL – THLCVCM PORTABLE VERTICAL ELECTRIC CEMENT MIXER Spares & Support: 01793 333212 Please read & understand this manual, paying particular attention to the safety instructions, before use. The manufacturer reserves the right to change the product specification and livery according to continued product improvements.
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS GENERAL SAFETY INSTRUCTIONS ELECTRICAL CONNECTION MAINTENANCE & STORAGE ASSEMBLY OPERATION PARTS DIAGRAM & LIST GUARANTEE DECLARATION OF CONFORMITY NOTES... -
Page 4: Specifications
SPECIFICATIONS Model THLCVCM Product Number 193858001 Motor Power 375 watt Motor Voltage 230V/50HZ Drum Opening 370mm Drum Capacity 134 litres Maximum Mixing Capacity 90 litres Drum Speed 23rpm Cable Length 3 metre Protective System IP44 Unladen Weight 53kgs Noise Level... -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 STAY ALERT Do not operate the mixer while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this mixer when you are tired or distracted from the job at hand. Be aware of what you are doing at all times.
-
Page 7: Electrical Connection
NEVER LEAVE MIXER RUNNING UNATTENDED Do not leave the mixer unattended until it has come to a complete stop. MAINTAIN YOUR MIXER WITH CARE Clean the mixer immediately after use. Keep the mixer clean to ensure it operates to it’s full and safest performance. -
Page 8: Maintenance & Storage
MAINTENANCE & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. MAINTENANCE Before each use, check all nuts & bolts to be sure they are sufficiently tightened. ... -
Page 9: Assembly
ASSEMBLY It is recommended the Cement Mixer is assembled by two persons. Remove the Mixer and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the Mixer, please contact us: Tel: 01793 333212 - Mon –... - Page 10 WARNING The following instructions should be carried out by two people, due to the weight and size of the components. STEP 3 Anchor Pin Motor Rotation Base Assembly Frame C - Attach the drum rotation base to the motor assembly frame, using the heavy duty anchor pin, which should be placed through both sections.
- Page 11 STEP 5 Drum F - Mount the cement mixer drum onto the gearbox shaft, ensuring the guide notch on the drum is aligned with the pin on the gearbox shaft. STEP 6 Mixing Paddle Tilting Handle G - Mount the two mixing paddles inside the drum, using the large head bolt and nut. Ensure the screw head bolt head is on the outside of the drum, placed through the drum and paddle, before securing with the nut securely.
-
Page 12: Operation
OPERATION Before operating the machine, please ensure you are fully aware of the below instructions, failure to do so, could invalidate your manufacturer’s warranty. Completely unwind the electrical cable. Always start the mixer before loading the drum. GENERAL USE ... -
Page 13: Parts Diagram & List
PARTS DIAGRAM & LIST Item No Handy Part Number Handy Description Quantity Item No Handy Part Number Handy Description Quantity TH216-203001001-1 MIXING PADDLE TH216-203001013-13 HEX BOLT M10X60 TH216-203001002-2 DRUM TH216-203001014-14 ROLLOVER PREVENTION PIN TH216-203001003-3 SCREW M12X25 TH216-203001015-15 MOTOR FRAME TH216-203001004-4 SPLIT PIN TH216-203001016-16 TILTING HANDLE... - Page 14 GJ HANDY & CO LTD USER WARRANTY POLICY 1. Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 15 GJ HANDY & CO LTD USER WARRANTY POLICY 3. Not covered by this warranty The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
- Page 16 EC Declaration of Conformity We, Importer Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY Declare that the product Model: THLCVCM VERTICAL PORTABLE ELECTRIC CEMENT MIXER Complies with the following directives: The Machinery Directive 2006/42/EC Annex I The Low Voltage Directive 2006/95/EC...
- Page 17 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
- Page 18 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
- Page 20 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Support Tel: 01793 333212 Mon – Fri 8.30am – 5.30pm (excl. Bank Holidays) Email: customerservice@handydistribution.co.uk This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
