Working with the MFCB

For instructions on making the power and data connections between the Multi-Function Cable Box (MFCB)
and Aurora, please read the MFCB Operator's Manual, available at www.DigiTrak.com.

Enabling the MFCB

Until you have made the proper power and data connections between the MFCB and Aurora, the check box
to Enable MFCB on the MFCB tab of the Peripherals screen (shown below) will be grayed out as
unavailable.
Once the MFCB is properly connected to Aurora, an MFCB icon displays in the Status bar. If the MFCB
appears as disabled , enable it as follows:
1. Tap Main Menu
2. Tap the MFCB tab (shown below).
3. Tap the check box to Enable MFCB. This selection will remain in effect even after a power cycle.
4. Tap
to return to the Home screen.

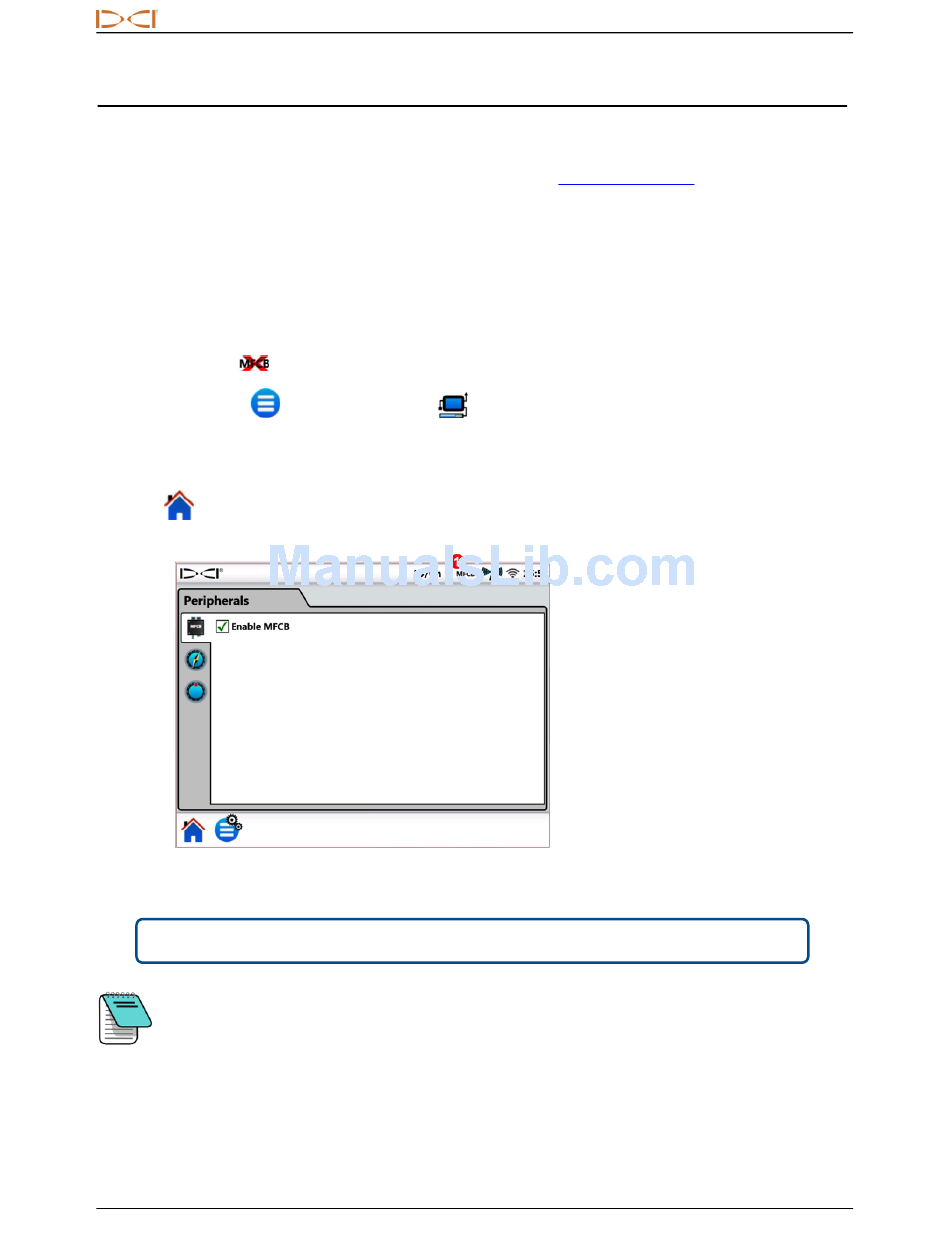

Enabling MFCB on the Peripherals Screen
Menu shortcut
To use a standard battery-powered transmitter while the MFCB is connected, simply clear the
Enable MFCB check box. Aurora will now receive drilling data from the receiver.
