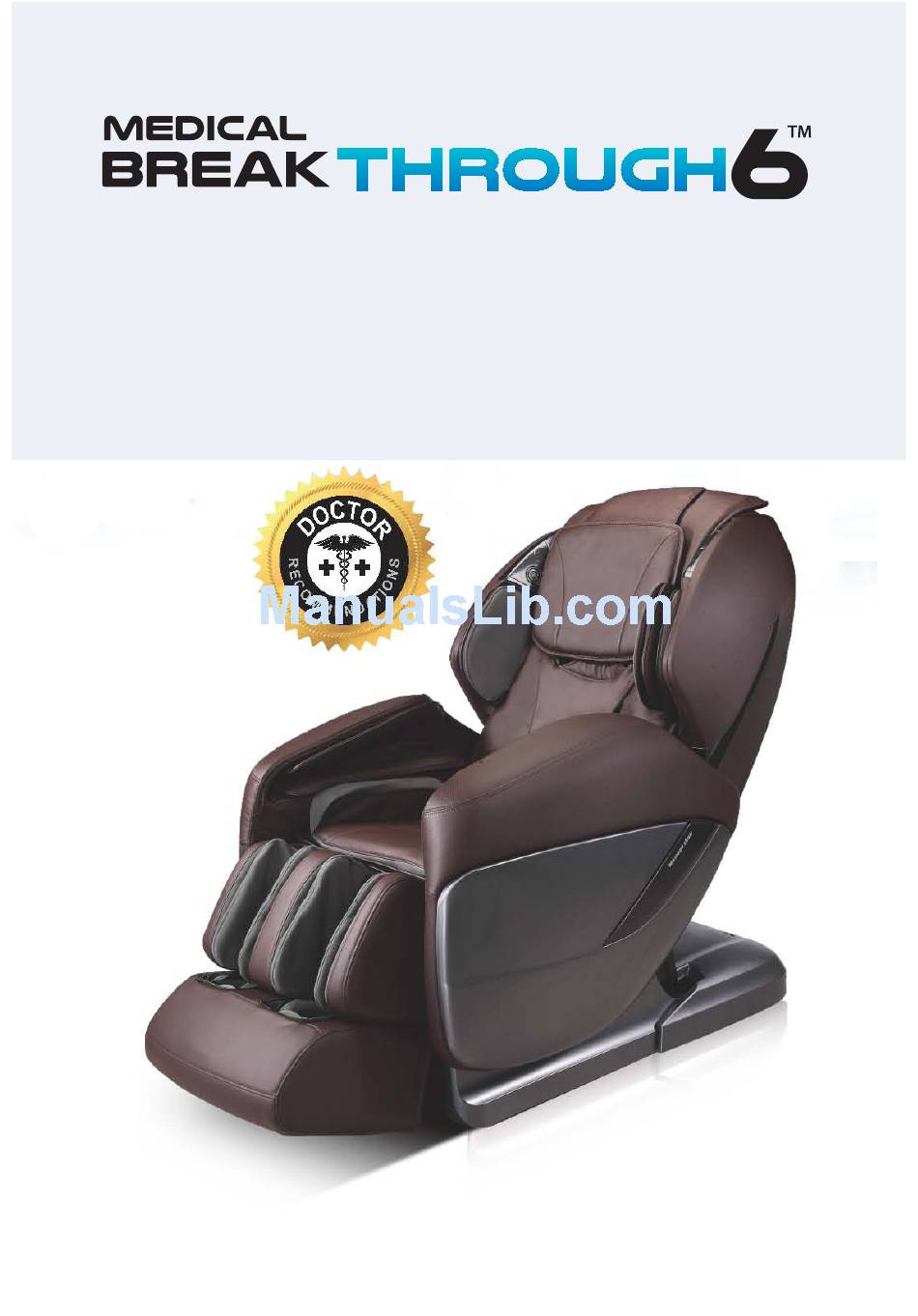

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
Medical Breakthrough 6 Contents Medical Breakthrough 6 Thanks for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly. Please pay close attention to safety waming section and keep this manual for future use. - Page 3 Medical Breakthrough 6 Safety and maintenance Important Safety Warnings To prevent injuries, children andlor pets should not play around the chair when it is in peration. Ÿ Users must stop and turn the power off immediately if they feel ill.
-
Page 4: Medical Breakthrough 6
Medical Breakthrough 6 Safety and maintenance Safety Check the voltage if it is suitable to the specification of this product. Ÿ Do not use wet hand to pull the plug. Ÿ Do not make water go inside this product to avoid electric shock or cause damage to this Ÿ... -
Page 5: Name And Function Of Components
Medical Breakthrough 6 Name and function of components Name and function of components 1.Pillow Pad 2.3D Digital Audio 3.Arm Air Bag Assembly 4.Seat Cushion 5.Ca|f Massage Assembly 6.Foot Massage Assembly 7.Negative Oxygen Ion Function 8.Upper Arm Air Bag Assembly 9.Back Cushion 10.Armrest... -
Page 6: Functions
Medical Breakthrough 6 Function Functions This product is designed with a set of smart 3D mechanical hands, which can Ÿ move up and down, stretching back and forth, four-wheel driven with muted design. The shoulder part is designed with automatic detection and micro adjustment Ÿ... -
Page 7: Method Of Usage
Medical Breakthrough 6 Method of usage Standard functions 1.Negative oxygen ion function (button on left upper arm). innovative negative oxygen ionizer design on head part, it can emit negative Ÿ oxygen ion ceaseless. By the national infrared and industrial electric products quality supervision and Ÿ... -
Page 8: Lcd Manual Controller Control The Massage Chair
Medical Breakthrough 6 Method of usage LCD manual controller control the massage chair NOTE: This is for reference only. Instruction manual 07... - Page 9 Medical Breakthrough 6 Method of usage Switch the main power supply on Diagram of plug in Diagram of the switch position of power supply To Start a Massage Press the red power button to start the massage, the massage chair will Ÿ...
- Page 10 Medical Breakthrough 6 Method of usage Choose massage methods Ÿ Emory massage: When it is on shoulder position detection, you can use M1 or Ÿ M2 memory button to start massage, no need to wait till detection finished, it will back to the stored massage models to massage.
- Page 11 Medical Breakthrough 6 Method of usage Uppr body manual operation, lower body manual operation Ÿ upper body manual operation Buttons Description On Display Shoulder grasp: auto turn to shoulder grasp massage, speed and intensity adjustable SHOULDER GRASP Kneading: speed and intensity adjustable...
- Page 12 Medical Breakthrough 6 Method of usage Air compression massage functions. Ÿ Description On Display Buttons Lower body air compression function (total 3 modes: Feet lower body, back and waist, calf ) Back Buttocks LOWER BODY Lower body, back and waist, calves air compression...
- Page 13 Medical Breakthrough 6 Method of usage The angle of backrest and calf rest Ÿ Description Buttons Auto lay down mode : with 3 auto lay down mode , when press the button, turn into one mode, follow by cycle. Calf rest lifting button: press this button, calf rest lifting slowly, stop when release it.
- Page 14 Medical Breakthrough 6 Method of usage iPhone or Android tablet system operate massage chair Application program interface Number Description Number Description function keys status-bar massage status information display area 8 Service upper body intensity adjustment operation/pause key massage button function setting function...
-
Page 15: Switch On The Machine
Medical Breakthrough 6 Method of usage USB connect the tablet and computer, install the program in the tablet through the Ÿ software tools (such Peasecod, 360 mobile phone assistant}. After install successfully, the program icon will be shown in tablet application program. Any questions, please consult the tablet supplier when install the program. -
Page 16: Massage Function Control Operation
Medical Breakthrough 6 Method of usage Massage function control operation 1.To start a massage In pad screen, unfold the APP listing, click “ to start up the massage chair · control program. First into startup interface after you start up the program, after 5 seconds into massage ·... - Page 17 Medical Breakthrough 6 Method of usage 3.Massage function running and pausing In massage information interface, when the massage chair in running state, press · “running /pausing” button, all the massage function will stop, and into pausing state; in pausing state, press “running / pausing" button, the massage function will continue to running as paused before.
- Page 18 Medical Breakthrough 6 Method of usage 5.Auto massage Click “ ” , popup massage function selecting menu, choose what you need. · Click “ ” , into auto function selecting interface, click auto icon choose auto · massage mode. In auto massage state, the speed and width are nonadjustable.
- Page 19 Medical Breakthrough 6 Method of usage 6.Manua| massage Click “ ” into manual massage function selecting interface, select manual massage methods, back stretch mode, speed, width function. In flapping, 3D, shiatsu, stop state, the width of massage hands is adjustable. Except the stop state,...
- Page 20 Medical Breakthrough 6 Method of usage 2)Manual massage-stretch mode In manual function selecting interface, click “ ” into stretch mode interface, click the corresponding stretch mode icon choose your personalized massage function. Note At the shoulder grasping mode, stretching mode selection is invalid.
- Page 21 Medical Breakthrough 6 Method of usage 1)Air compression massage-arms intensity, 3 grades adjustable In arm air compression mode, adjust the intensity, 3 grades available. Air compression massage-arms interface Air compression Description function Switch on or off the arms air compression massage function...
- Page 22 Medical Breakthrough 6 Method of usage 8.Other massage function 1 )Other massage function thermal therapy function Press “ ” button to enter massage function interface, press “ ” button to start or stop backrest infrared heating function Notes: You will have warm sensation 3 minutes after when you switch on.
- Page 23 Medical Breakthrough 6 Method of usage 3) Other function massage-Updated program working Open application menu “ " choose “ service " into auto-massage program update interface . App auto-function choice , with APP auto modes . Confirm your choice, the speaker will alarm if the selected APP is invalid.
-
Page 24: Setting
Medical Breakthrough 6 Method of usage Settings language selection Click “ ” icon into setting function interface, then click “ ” icon, popup language list box, select language type, the system with 3 language (simplified Chinese, traditional Chinese, English}. volume adjust Click“... -
Page 25: Wireless Blue Tooth Music Player
Medical Breakthrough 6 Method of usage Buttons Description Start or exit app upgrade downloaded function Start/exit Auto massage program No. Choice Auto-massage programs Number selection Confirm download address Intelligent terminal and the blue tooth of massage chair are in Testing good connection Choose the downloaded app document ( document. - Page 26 Medical Breakthrough 6 Method of usage End massage, power off When the massage function in a state of start-up, click “ massage on/off" will turn off all the massage function. Turn off power Diagram of the switch position of power supply...
- Page 27 5} 6.Hold the arm rest with your hands, the back armrest is higher than the front, front armrest pin respond to box on the front part of the steel board , ( check the connect...
-
Page 28: Floor Protection
Medical Breakthrough 6 Method of usage The disassemble and using of pillow pad and back cushion Using head cushion can reduce knead massage strength for neck and shoulder, it all depends on you whether to use it {we suggest you using it). Head cushion and backrest are connection through a zipper (figure 1), up turn the back side of the... -
Page 29: Moving The Chair
Please must turn off the power switch, then unplug the power cord and remote control wire before moving the chair. NOTED Product specification Model: MEDICAL BREAKTHROUGH 6 Description: Massage Chair Rated voltage: 110-120V ~ 60Hz 220-240V ~ 50Hz/60Hz Rated power input: 240W Rated time: 20 Min Noise: <... - Page 30 SAVE THESE INSTRUCTIONS Products refer to the actual product without prior notice.
