Calix 804Mesh Quick Start Manual page 3

Mounting the 804Mesh
The 804Mesh can be placed in one of two confi gurations:
1. Placed on a tabletop or shelf in an upright orientation.
2. The 804Mesh also supports wall or ceiling mount using the optional mounting
bracket (ordered separately).
Powering the 804Mesh
To power the equipment:
1. Remove any protective packaging or fi lms prior to powering up the 804Mesh.
2. Plug in the power adapter to an available wall socket and attach the other end to
the 804Mesh's power port. Note the power cord is 5 feet (1.5 meters) long.

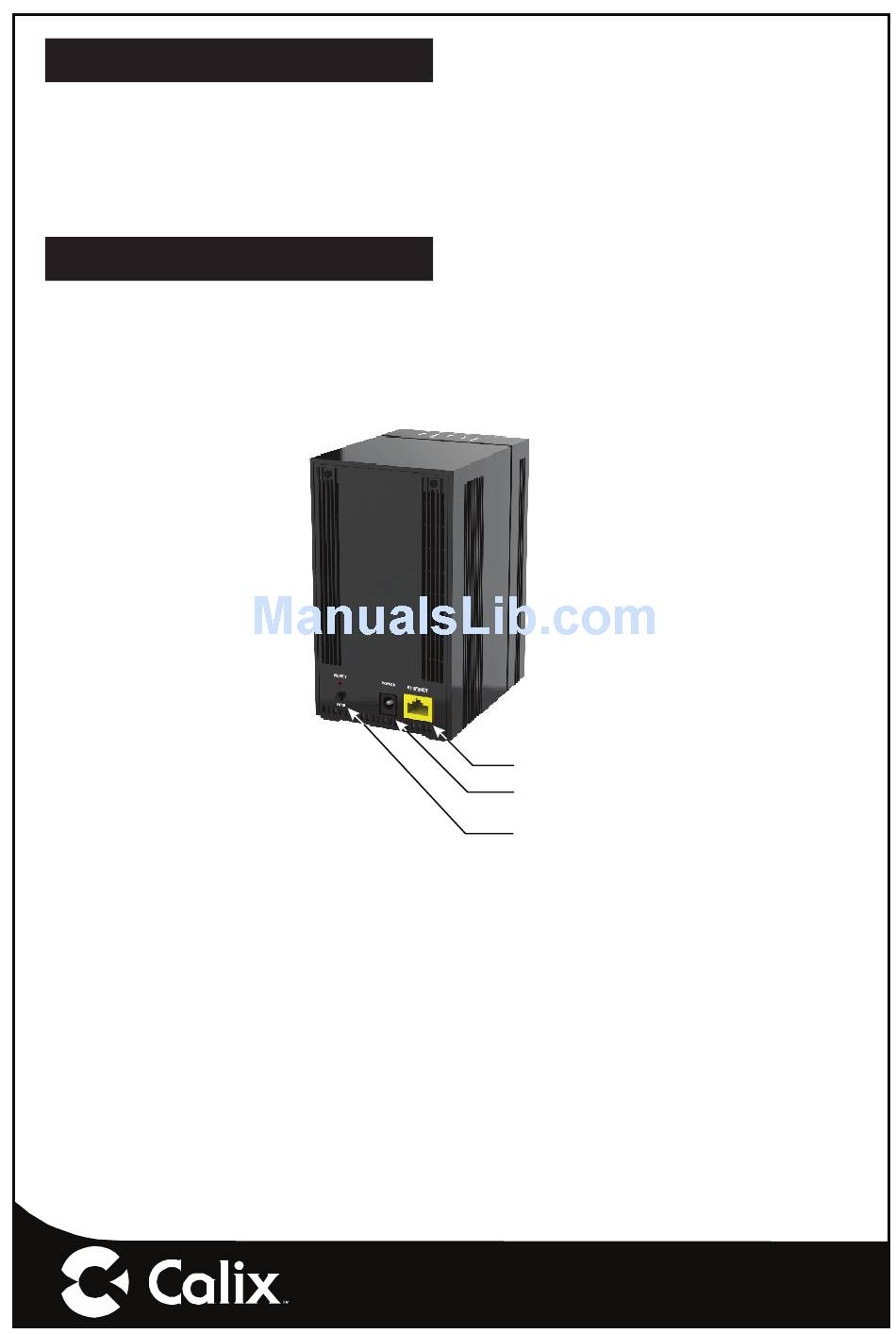

7719
Ethernet Port
(Optional)
Power Interface
Wi-Fi Protected
Set-up (WPS)
— 3 —
