804Mesh Quick Start Guide

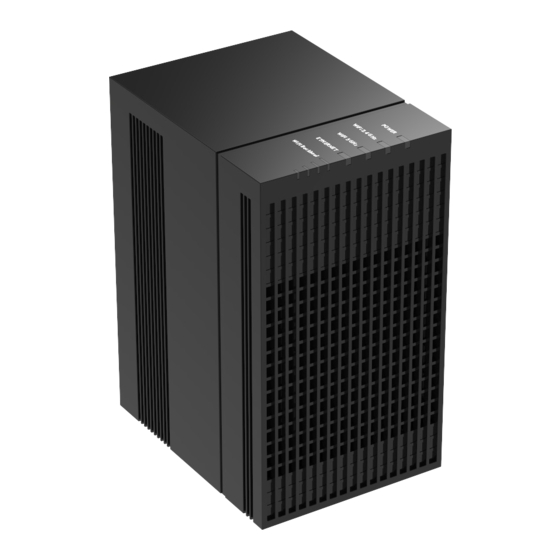

This document provides general installation practices for the Calix 804Mesh Satellite.
This document also provides guidance for site preparation, installation, and basic
troubleshooting.
Scan the QR code at left to access the installation instructions for
this product. All product documentation is available online from the
Calix Resource Center (support.calix.com).
Package Contents
GigaMesh - Model 804
Power Adapter (Type A or Type C)
804Mesh Quick Start Guide (this document)
Product identifi cation labels with login credentials (x2)
P/N 220-01041, Rev 10
www.calix.com

Advertisement

Table of Contents
loading

Related Manuals for Calix 804Mesh

Summary of Contents for Calix 804Mesh

  • Page 1 804Mesh Quick Start Guide This document provides general installation practices for the Calix 804Mesh Satellite. This document also provides guidance for site preparation, installation, and basic troubleshooting. Scan the QR code at left to access the installation instructions for this product. All product documentation is available online from the Calix Resource Center (support.calix.com).

  • Page 2: A Quick Look

    GigaHub. Calix recommends placing the 804Mesh at a distance such that 2 or 3 green LEDs are lit. Lastly, if only the 1st signal bar fl ashes, it indicates the 804Mesh is too far from the GigaCenter/GigaHub and the performance may be less than expected.
  • Page 3 Remove any protective packaging or fi lms prior to powering up the 804Mesh. Plug in the power adapter to an available wall socket and attach the other end to the 804Mesh’s power port. Note the power cord is 5 feet (1.5 meters) long. 7719...
  • Page 4 804Mesh Management The 804Mesh can be managed via a Calix Cloud/Consumer Connect Plus application. With this interface, service providers or subscriber’s can view statistical information and/or troubleshoot various service delivery problems. The 804Mesh is part of the entire GigaFamily eco-system.

  • Page 5: Frequently Asked Questions

    Backhaul signal strength can be monitored via the bank of LED’s located on the top of the 804Mesh. This four LED array provides information as to the relative signal strength of each 804Mesh in the network. The following table displays possible LED states as it pertains to RSSI.

  • Page 6: Utilisation Prévue

    Q: What if the User Name or login keys are forgotten? A: Press the reset button of the 804Mesh for at least fi ve seconds. Q: What mounting options are available for installing the 804Mesh? A: The 804 Mesh has an optional mounting bracket for ceiling or wall mounting. It can also be installed on a desktop or shelf without additional hardware.

  • Page 7: Power Supply

    Power Supply • Ensure that a suitable AC power outlet is situated near the 804Mesh and easily accessible. • Connect the power supply cord only to the AC power outlet that meets the speci- fi cations marked next to the appliance AC power inlet on the 804Mesh.

  • Page 8: Environmental Conditions

    Entree: 90-264 VCA, 47/63 Hz, 1.0A, Sortie: Valeur nominale 12 VDC, 1.5A Minimum, 18W Children Do not allow children to play with the 804Mesh. It contains small parts that could become detached and create a choking hazard. Environmental Conditions Maximum environmental values during use: Temperature: 0°...
  • Page 9 Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
