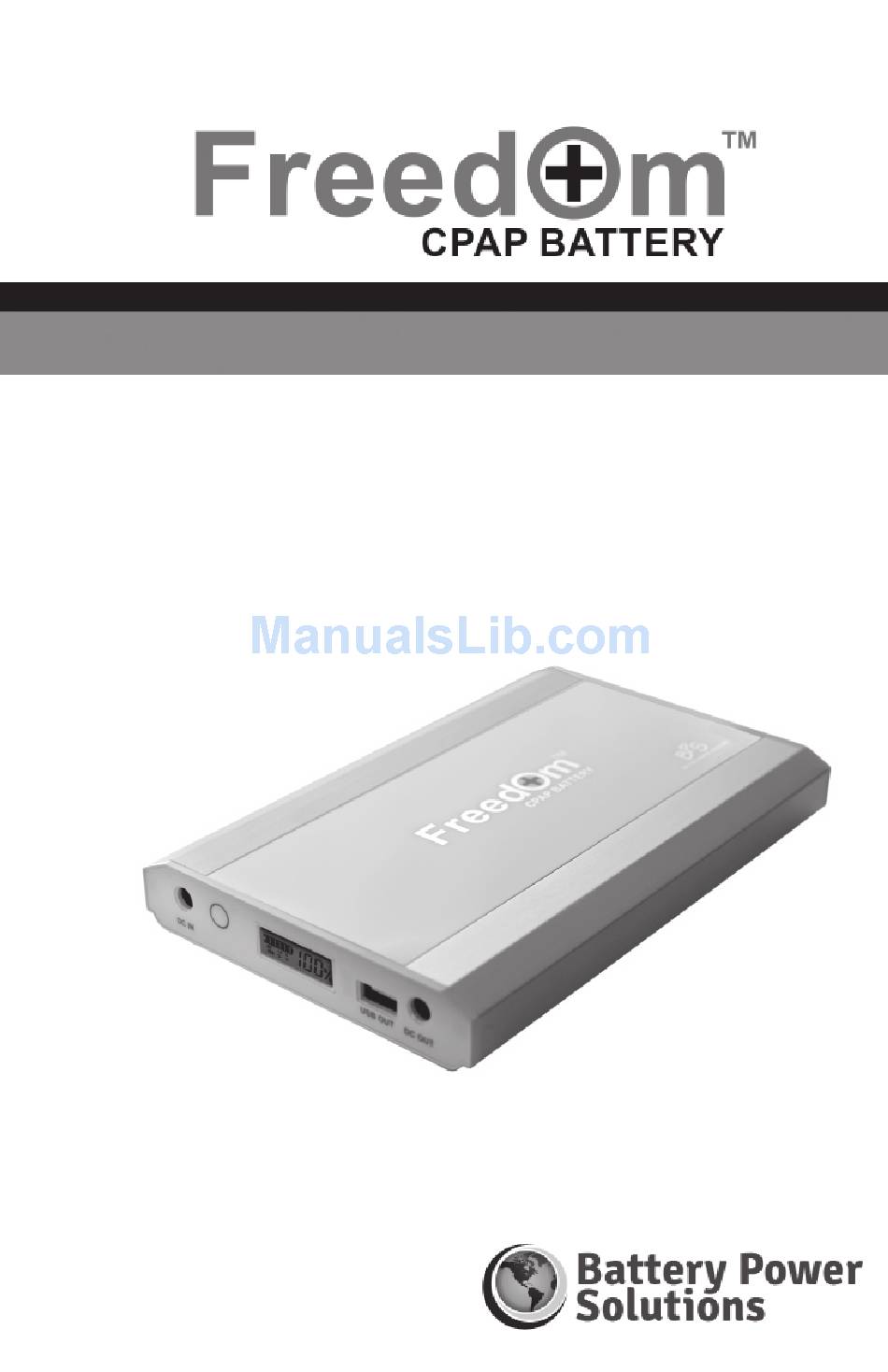

- Page 1 USER MANUAL Batteries to Power Your World!
-
Page 2: Table Of Contents
Table of Contents Please read this manual carefully before using the Freedom™ CPAP Ba ery for the fi rst me and observe all safety warnings. Package Contents................Connec on Components Sold Separately........Product Specifi ca ons..............Safety Features................Safety Warnings................Warranty &... - Page 3 Table of Contents Powering Your PAP Device ResMed Air 10 & S9 Series..........13-15 ResMed S8 Series............... DeVilbiss IntelliPAP & IntelliPAP 2 Series......Other PAP Devices & Travel CPAP Models......17-19 Air Travel Usage................Power Backup Usage..............Respironics DreamSta on Series........21-22 Respironics System One &...
-
Page 4: Package Contents
Package Contents The Freedom™ CPAP Ba ery Kit includes the following components: AC Power Supply DC Power Pigtail Cord Freedom™ CPAP Ba ery Connector Tips (3) DC Input Cord Le ers: N, W, J NOTE: The included connector ps are compa ble with Respironics System One series, Respironics M series and DeVilbiss IntelliPAP 1 series devices. -
Page 5: Product Specifi Ca Ons
Product Specifi ca ons Cell Type: Industrial grade rechargeable lithium-ion cells (LG® brand) Capacity: 97.68 Wh Output Voltage Range: 9V-12.6V DC USB Output Voltage: 5V DC | 2A Output Current: 8A maximum DC Input Voltage Range: 12.6V-17V AC Power Supply Input Range: 100-240VAC | 50-60Hz |1.5A AC Power Supply Output Current: 13.5V | 6.75A Charging Condi ons: 32°F to 104°F Discharging Condi ons: 23°F to 104°F... -
Page 6: Safety Warnings
Warranty & Usage Disclaimer All Battery Power Solutions products are under warranty for manufacturing and quality defects for 1 (one) year. This warranty does not cover damage resul ng from modifi ca on of ... -
Page 7: Intended Use
Intended Use The Freedom™ CPAP Ba ery provides external power to PAP (posi ve airway pressure) devices when AC power is unavailable during travel or power outages. The Freedom™ ba ery may also be used to charge many common portable electronic devices such as cell phones and tablets. Use of the ba ery with a device that has higher amperage requirements than the output of the ba ery (over 8A) may cause the internal circuitry of the ba ery to shut off... -
Page 8: Average Run Times
Average Run Times Mul ple factors will aff ect how long the Freedom™ ba ery will power a PAP device, including, but not limited to the PAP device type, pressure se ng, heated humidifi ca on or heated tubing usage, and the required connec on component type (see page 31 for addi onal informa on). -
Page 9: Ini Al Ba Ery Usage
Ge ng Started INITIAL BATTERY USAGE Before using the Freedom™ ba ery for the fi rst me be sure to fully charge it using AC power. It may only take a short me for the charge level to reach 100% as it is already par ally charged before it leaves the factory. -
Page 10: General Charging Notes
Charging the Ba ery GENERAL CHARGING NOTES It is normal for the AC power supply and the ba ery to be slightly warm to the touch during the charging process. The digital display screen will show the charge level of the ba ery. ... -
Page 11: Other Charging Op Ons
Other Charging Op ons When AC power is not available you can s ll keep your Freedom™ ba ery charged up and ready to go. Op onal accessories are available for charging the ba ery in a vehicle or by using the power of the sun. Detailed informa on on these charging accessories is available on our website at www.ba erypowersolu ons.net. -
Page 12: Respironics Dreamsta On Series
Respironics DreamSta on Series The DC input port on Respironics DreamSta on series devices require a proprietary signal in order to recognize a valid power source; therefore, the use of a 12V power adapter is required with the Freedom™ ba ery. Our 12V power adapter was designed specifi... -
Page 13: Respironics Dreamsta On Series
Respironics DreamSta on Series DUAL BATTERY CONNECTION * Dual ba ery connec on will require an addi onal Freedom™ ba ery. Plug the 12V power adapter into the DC power pigtail cord. Plug the DC power pigtail cord into the DC OUT jacks of the ba eries. ... -
Page 14: Respironics System One & M Series
Respironics System One & M Series Respironics System One and M series devices can be connected directly to the Freedom™ using the DC power pigtail cord and the appropriate connector p included in the ba ery kit. *Using heated humidifi ca on and/or heated tubing will signifi cantly reduce run mes! For op mal run mes turn these features off... -
Page 15: Respironics System One & M Series
Respironics System One & M Series DUAL BATTERY CONNECTION *Dual ba ery connec on will require an addi onal Freedom™ ba ery. Plug the DC power pigtail cord into the DC OUT jacks of the ba eries. Insert the appropriate connector p into the DC power pigtail cord. ... -
Page 16: Resmed Air 10 & S9 Series
ResMed Air 10 & S9 Series ResMed Air 10 and S9 series devices operate from 24V direct current and the Freedom™ ba ery provides 12V direct current; therefore, the use of a 24V power converter is required in conjunc on with the ba ery. Our 24V power converter was designed specifi... - Page 17 ResMed Air 10 & S9 Series REQUIRED COMPONENTS Freedom™ CPAP Ba ery Kit ResMed 24V Power Converter *Using heated humidifi ca on and/or heated tubing will signifi cantly reduce run mes! For op mal run mes turn these features off . SINGLE BATTERY CONNECTION Remember to follow all connec on steps in exact sequence.
-
Page 18: Resmed Air 10 & S9 Series
ResMed Air 10 & S9 Series DUAL BATTERY CONNECTION *Dual ba ery connec on will require an addi onal Freedom™ ba ery. Remember to follow all connec on instruc ons in exact sequence. Plug the DC power pigtail cord into the DC OUT jacks of the ba eries. ... -
Page 19: Resmed S8 Series
ResMed S8 Series ResMed S8 series devices operate from 12V direct current but the DC input port runs opposite polarity from the Freedom™ ba ery; therefore, the use of the 150W sine wave power inverter is required. DO NOT connect a ResMed S8 device to the ba ery without using the sine wave power inverter as doing so will cause irreversible damage to the PAP device. -
Page 20: Other Pap Devices & Travel Cpap Models
Other PAP Devices & Travel CPAP Models The Freedom™ ba ery can power most all other common PAP devices and travel CPAP models including, but not limited to the following: Fisher & Paykel ICON DeVilbiss IntelliPAP 2 3B Medical RESmart & Luna ... -
Page 21: Other Pap Devices
Other PAP Devices & Travel CPAP Models *Using heated humidifi ca on and/or heated tubing will signifi cantly reduce run mes! For op mal run mes turn these features off . REQUIRED COMPONENTS Freedom™ CPAP Ba ery Kit 150W Sine Wave Power Inverter (power inverter) ... -
Page 22: Other Pap Devices & Travel Cpap Models
Other PAP Devices & Travel CPAP Models DUAL BATTERY CONNECTION *Dual ba ery connec on will require an addi onal Freedom™ ba ery. Plug the DC power pigtail cord into the DC OUT jacks of the ba eries. Plug the DC input cord into the DC power pigtail cord. ... -
Page 23: Air Travel Usage
Air Travel Usage The Freedom™ CPAP Ba ery meets current FAA requirements for spare lithium-ion ba eries (not installed in a device) taken in carry-on baggage as each ba ery is less than 100Wh (97.68Wh) and is protected from damage and short circuit. Spare lithium-ion ba eries are not allowed in checked baggage and must only be taken in carry-on baggage. -
Page 24: Respironics Dreamsta On Series
Power Backup: Respironics DreamSta on Series REQUIRED COMPONENTS Freedom™ CPAP Ba ery Kit DreamSta on 12V Power Adapter SINGLE BATTERY CONNECTION Plug the ba ery AC power supply into the DC IN jack of the ba ery. ... -
Page 25: Respironics Dreamsta On Series
Power Backup: Respironics DreamSta on Series DUAL BATTERY CONNECTION * Dual ba ery connec on will require an addi onal Freedom™ ba ery and an addi onal DC power pigtail cord (item # BPS PIGTAIL.FD) Plug the ba ery AC power supply into the fi rst DC power pigtail cord. ... -
Page 26: Respironics System One & M Series And Devilbiss Intellipap Series
Power Backup: Respironics System One & M Series and DeVilbiss IntelliPAP Series REQUIRED COMPONENTS Freedom™ CPAP Ba ery Kit SINGLE BATTERY CONNECTION Plug the ba ery AC power supply into the DC IN jack of the ba ery. Plug the AC power supply into a wall outlet. -
Page 27: Devilbiss Intellipap Series
Power Backup: Respironics System One & M Series and DeVilbiss IntelliPAP Series DUAL BATTERY CONNECTION * Dual ba ery connec on will require an addi onal Freedom™ ba ery and an addi onal DC power pigtail cord (item # BPS PIGTAIL.FD) ... -
Page 28: Resmed Air 10 & S9 Series
Power Backup: ResMed Air 10 & S9 Series REQUIRED COMPONENTS Freedom™ CPAP Ba ery Kit ResMed 24V Power Converter SINGLE BATTERY CONNECTION The connec on instruc ons below must be followed in exact sequence. See pages 13-15 for addi onal informa on. Plug the ba ery AC power supply into the DC IN jack of the ba ery. -
Page 29: Resmed Air 10 & S9 Series
Power Backup: ResMed Air 10 & S9 Series DUAL BATTERY CONNECTION * Dual ba ery connec on will require an addi onal Freedom™ ba ery and an addi onal DC power pigtail cord (item # BPS PIGTAIL.FD) The connec on instruc ons below must be followed in exact sequence. See pages 13-15 for addi onal informa on. - Page 30 Power Backup: Other PAP Devices REQUIRED COMPONENTS Freedom™ CPAP Ba ery Kit 150W Sine Wave Power Inverter (power inverter) SINGLE BATTERY CONNECTION Plug the ba ery AC power supply into the DC IN jack of the ba ery. ...
- Page 31 Power Backup: Other PAP Devices DUAL BATTERY CONNECTION * Dual ba ery connec on will require an addi onal Freedom™ ba ery and an addi onal DC power pigtail cord (item # BPS PIGTAIL.FD) Plug the ba ery AC power supply into the fi rst DC power pigtail cord. ...
-
Page 32: Powering Other Devices
Powering Other Devices The Freedom™ ba ery can be used to power many portable electronic devices such as cell phones and tablets via the 5V USB port, DC input cord or the 150W sine wave power inverter. USB PORT CONNECTION Plug the device USB cord into the USB OUT port of the ba ery. -
Page 33: Understanding Lithium-Ion Ba Eries
Understanding Lithium-Ion Ba eries Understanding common phenomenon with rechargeable lithium-ion ba eries can help you be er care for your Freedom™ CPAP Ba ery and answer many common ques ons regarding usage. Lithium-ion ba eries do not suff er the memory eff ects that are ... -
Page 34: Faq & General Troubleshoo Ng
FAQ & General Troubleshoo ng LOWER THAN EXPECTED RUN TIMES Below are the most common factors that impact how long the Freedom™ ba ery will power a PAP device: Heated Humidifi ca on & Heated Tubing: Using these features will ... -
Page 35: Faq & General Troubleshoo Ng
FAQ & General Troubleshoo ng BATTERY STARTS THEN STOPS WORKING If the ba ery stops func oning you can reset its internal circuitry by using the instruc ons below. If the ba ery con nues to shut down, the device you are a emp ng to power may not be compa ble. - Page 36 1-877-445-5228 www.ba erypowersolu ons.net FREEDOM™ CPAP BATTERY USER MANUAL January 2018...
