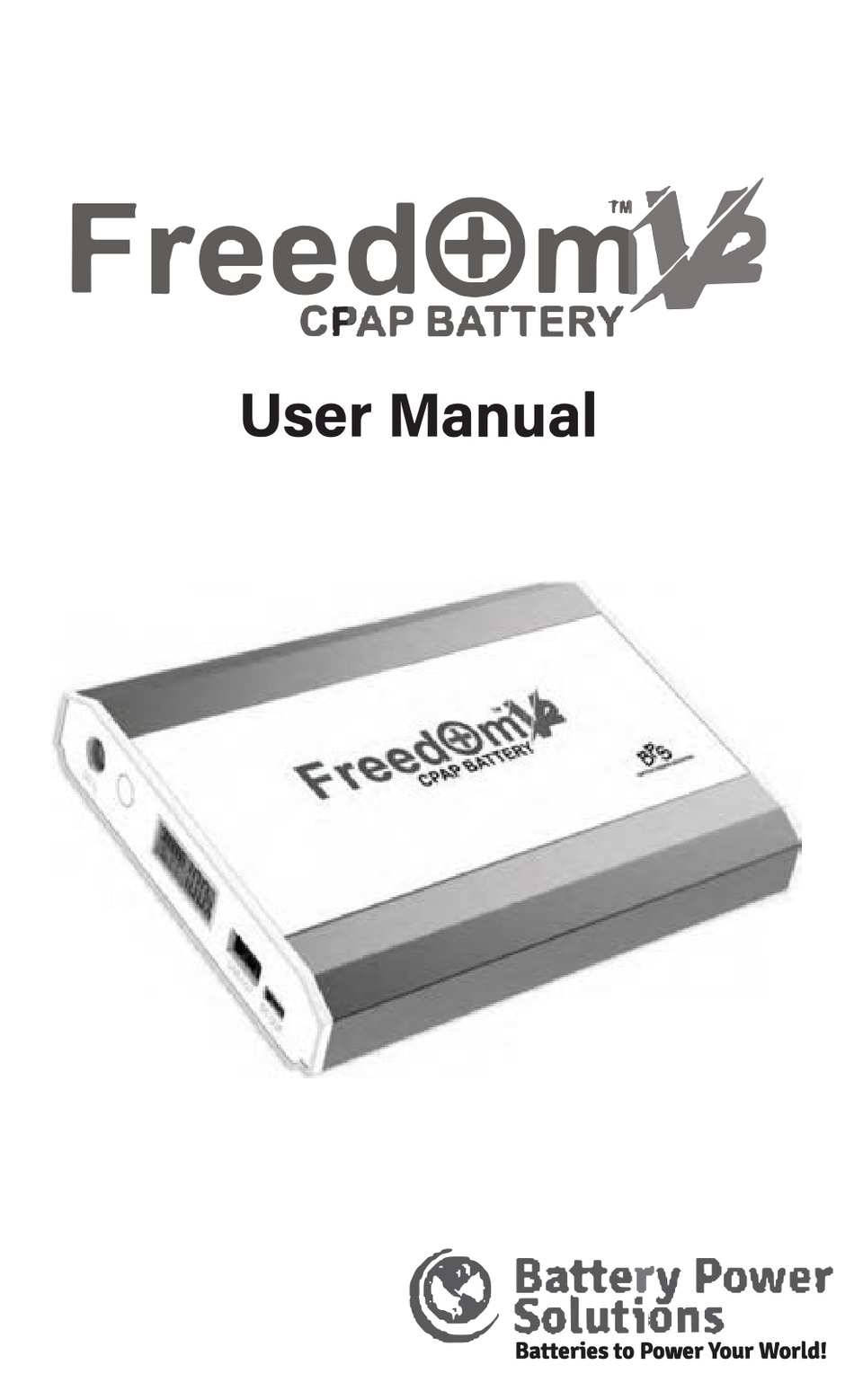

- Page 1 F r e � � User Manual Batte, y Power � So lut ii o ns Batteries to Power Your World!
-
Page 2: Table Of Contents
14-15 USB Port Connection Specifications Battery Storage & Disposal Frequently Asked Questions If you have any questions regarding the use of your Freedom V CPAP Battery or any other Battery Power Solutions product please contact us at 1-877-445-5228 or info@batterypowersolutions.net. -
Page 3: The Freedom
Package Contents The Freedom CPAP Battery comes packaged in a variety of kits that include the output cables required to connect the battery to specific PAP device models. These kits will include the following items: ResMed Air 10 Series Kit {Model: SV2-A10} Freedom V CPAP Battery... - Page 4 Package Contents Respironics DreamStation Kit {Model: SV2-DS} ■ Freedom V CPAP Battery ■ DreamStation Output Cable - also fits System One 60 Series devices ■ User Manual The DreamStation or System One 60 Series power supply is used to charge the battery and connects directly Freedom v to the DC IN port of the battery.
-
Page 5: Charging Accessories (Sold Separately)
PAP devices as the voltage output is determined by the power path of the DC output cable. Battery Power Solutions manufactures DC output cables to fit the most common PAP device models. All other models connect to the battery using the 150W Sine Wave Power Inverter. -
Page 8: Battery Charging
Battery Charging The Freedom battery is designed to be charged using your PAP device original power supply or the Freedom power supply. Your PAP device power supply will either connect directly to the battery or via a Power Supply Adapter included in the battery kit (see pages 1-2). - Page 9 Battery Charging Dual Battery Charging Two batteries may be bridged together for charging; however, they will not charge simultaneously. As shown in the image below, battery B will charge first and then battery A will begin charging. To begin the dual charging process battery A must be charged to at least 15%.
-
Page 10: Standard Connection: Dc Output Cable
Standard Connection: Output Cable The most common PAP device models will connect to the Freedom battery using a unique Output Cable included in your battery kit. Once the Output Cable is connected to your PAP device it should begin receiving power. When not in use we recommend disconnecting your device from the battery to allow the battery to completely shut down. - Page 11 Standard Connection: Output Cable Example images shown with ResMed AirSense 10 CPAP device and Air 10 Output Cable. Single Battery .c-� «<.. """- Output Cable DC OUT Dual Battery Bridge Cable...
-
Page 12: Standard Connection: 150W Sine Wave Power Inverter
Standard Connection: Power Inverter PAP device models that do not connect to the Freedom battery via a unique Output Cable will connect using the Mobile Power Receptacle and 150W Sine Wave Power Inverter (Power Inverter). Once your PAP device is connected to the battery it should begin receiving power. -
Page 14: Power Backup Connection: Dc Output Cable
Power Backup Connection: Output Cable The Freedom CPAP Battery can be setup as an uninterrupted battery backup system for your PAP device in the event of a power outage. When AC power is available it will bypass the lithium-ion cells of the battery and power your device normally. -
Page 16: Power Backup Connection: 150W Sine Wave Power Inverter
Power Backup Connection: Power Inverter The Freedom CPAP Battery can be setup as an uninterrupted battery backup system for your PAP device in the event of a power outage. When AC power is available it will bypass the lithium-ion cells of the battery and power your device normally. -
Page 18: Usb Port Connection
USB Port Connection The Freedom battery features a Quick Charge 3.0 USB port for charging portable electronics like cell phones, tablets and MP3 players. ■ Plug the USB power cable of the electronic device into the USB OUT port of the battery. ■... -
Page 19: Battery Storage & Disposal
Battery Storage & Disposal ■ Fully charge the battery before storage. For optimal performance charge and discharge the battery once every 90 days. ■ Store the battery in a dry, cool and well ventilated place away from ° extreme heat(> 104 F) and direct sunlight. - Page 20 Technical Support Visit our website for more product and troubleshooting information. If you have any questions or concerns please contact us toll-free at 1-877-445-5228 or via email at info@batterypowersolutions.net. Do not disassemble or attempt to service the Freedom V CPAP battery or any of the connection or charging cables or components.
