Operating conditions

The following points should be noted particularly when using the device:
The maximum permissible pressure pmax of the transmitter may not be
exceeded.
The temperature of the medium in contact with the transmitter may
not exceed +80 ÀC.
Avoid formation of ice on the process input of the transmitter because
this could damage the diaphragm.
Prevent soiling of the transmitter input.
Avoid obstruction to the vent pipes in the special cable (influences the
measuring accuracy).
Consider the chemical resistance of sensor, case, O-ring and connection
cable with the media.
Connect the sensor to a low voltage power supply with safe separa-
tion (SELV).

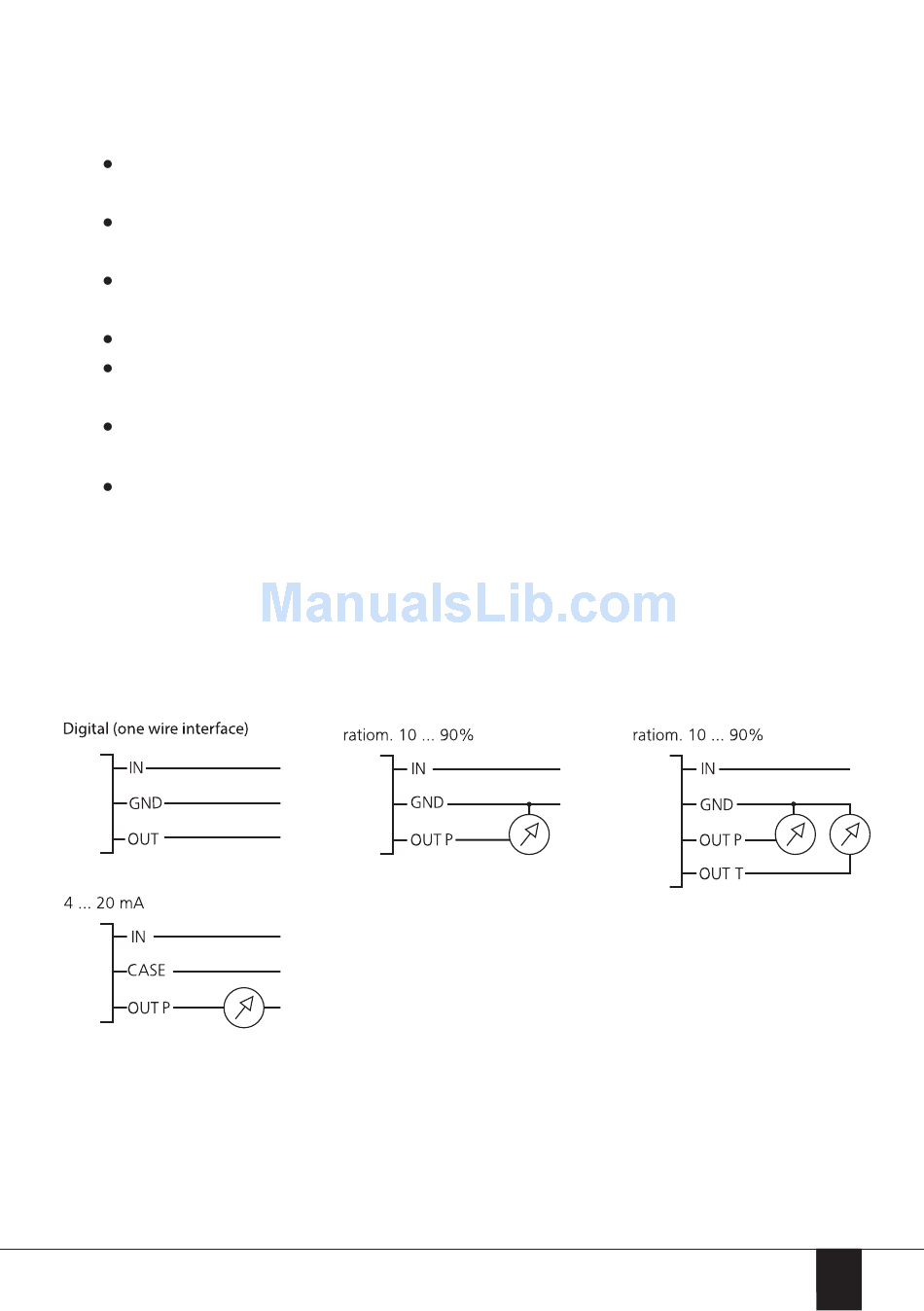

Electrical connections

The electronic GND is connected with a 1MΩÃresistor to the level transmitter
housing.
brown
white
green
brown
white
green
Communication interface version digital
https://www.hubacontrol.com/fileadmin/user_upload/domain1/Produkte/
DE_EN_FR/713_app_note.pdf
Technische Änderungen vorbehalten | Technical data subject to change | Sous réserve de modifications techniques
Huba Control AG - Industriestrasse 17, CH-5436 Würenlos - Edition 08/2017 - 120311
brown
white
digital
green
The case connection is connected with the level
transmitter housing.
with temperature
brown
white
green
yellow
