Instructions for mounting
Qualified Personnel
are persons familiar with the insallation, assembly, commisioning and ope-
ration of the product and who have the appropriate qualifications for their
activities such as:
training or instruction or authorization to operate and maintain devices/
systems according to the standard of safety technology for elecrical
circuits, high pressures and corrosive as well as hazardous media.
training or instruction according to the standards of safety engineering in
the care and use of suitable safety equipment.
Only trained qualified personnel shall execute this work.
Modules which are sensitive to electrostatic charge may be destroyed by
voltages which are far below the human level of perception. These voltages
occur already when you touch a component or electrical connections of a
module without first discharging yourself electrostatically. The damage in-
curred by a module as a result of an overvoltage is not usually immediate-
ly perceptible but only becomes noticeable after a long time in operation.
Therefore, a suitable equipotential bonding must be guaranteed when repai-
ring the device.

Installation

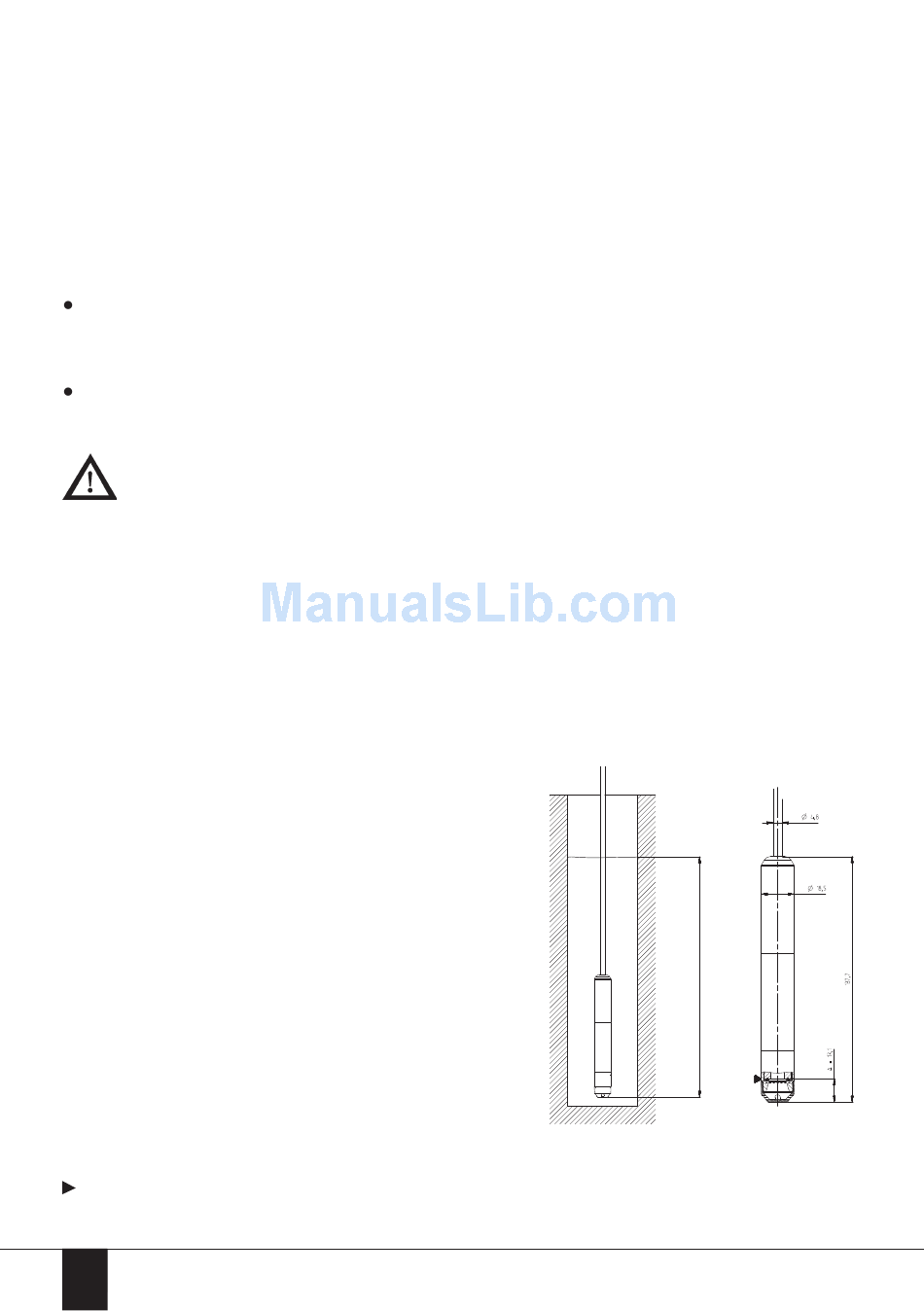

The level pressure transmitter 713 is ins-
talled hanging downwards on the cable.
In moving media, the transmitter must be
fixed to prevent measuring errors. This can
be done with a guide tube. Make sure that
the inlet openings on the protective cap of
the level pressure transmitter are not soiled
in order to guarantee perfect functioning.
h - Fluid level
- Measurement reference height
4
