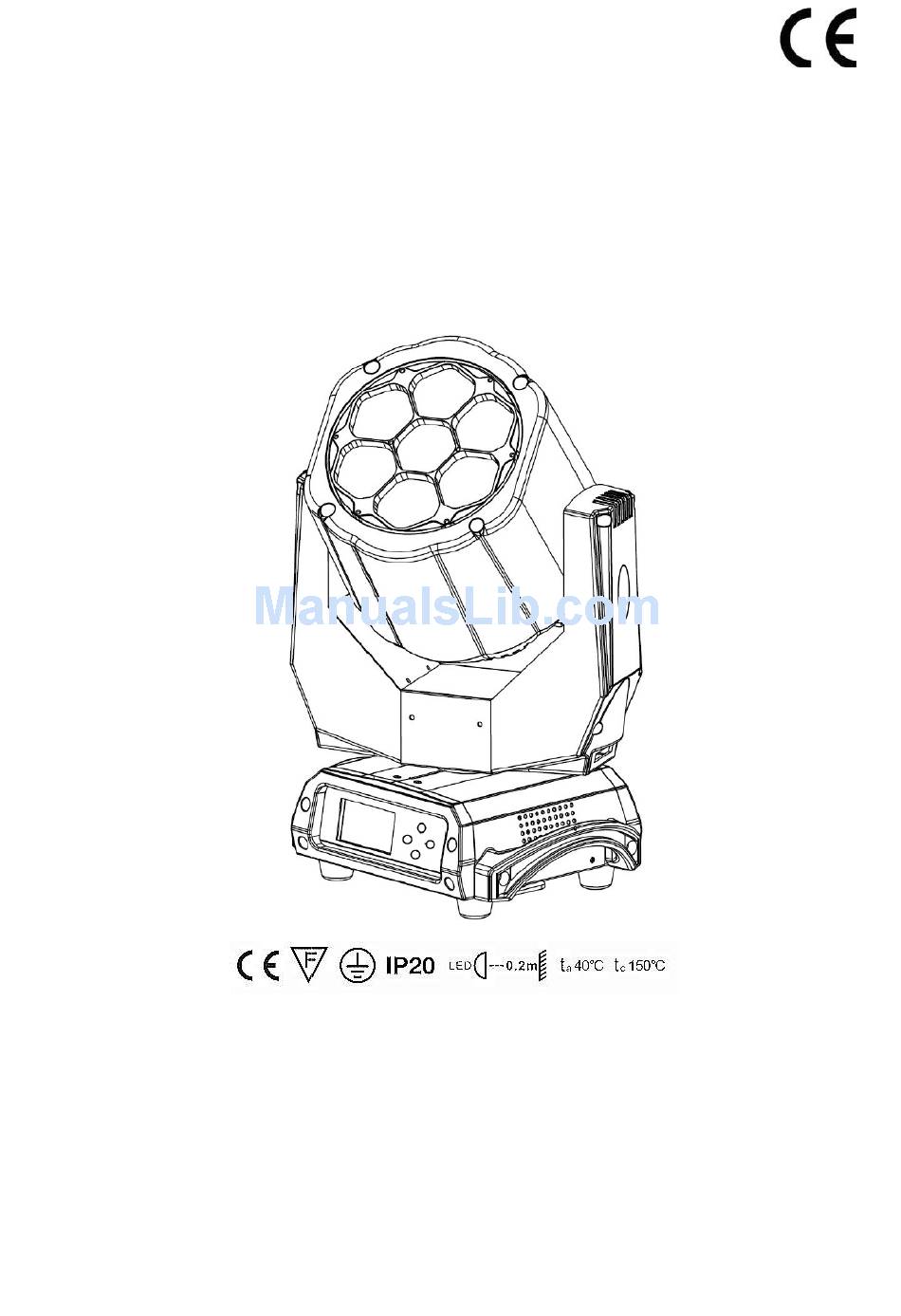

- Page 1 The Amazing The Amazing B eye-7 ZOOM and Rotation ZOOM and Rotation 7pcs 15W 4-in-1 User Manual KEEP THIS MANUAL FOR FUTURE NEEDS THIS MANUAL FOR FUTURE NEEDS THIS MANUAL FOR FUTURE NEEDS 1 / 12...
- Page 2 1. Unpacking Thank you for choosing our products. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. It is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook.
-
Page 3: Product Introduction
2. Product Introduction 3 / 12... -
Page 4: Safety Instructions
3. Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. -
Page 5: Mounting And Installation
4. Operation Instructions -The moving head is for wash effect for on-site decoration purpose. -Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 6 Never stand directly below the device when mounting, removing, or servicing the Never stand directly below the device when mounting, removing, or servicing the Never stand directly below the device when mounting, removing, or servicing the fixture from a periodic safety inspection of all installation material and the fixture. If from a periodic safety inspection of all installation material and the fixture.
- Page 7 6. DMX-512 control connections 512 control connections Connect the provided XLR cable to the female 3 XLR cable to the female 3-pin XLR output of your controller pin XLR output of your controller and the other side to the male 3 and the other side to the male 3-pin XLR input of the moving head.
-
Page 8: Dmx Channels
7. DMX Channels 20 channels model Channe Function Function details value 0~255 Pan fine 0~255 Pan fine Tilt 0~255 Tilt Tilt fine 0~255 Tilt fine Dimmer 0~255 0-100 % dimmer from dark to bright Strobe off, Leds off 3~103 Strobe from slow to fast, Leds on 104~10 Strobe off, Leds on Strobe... - Page 9 48 channels model Channe Function Function details value 0~255 Pan fine 0~255 Pan fine Tilt 0~255 Tilt Tilt fine 0~255 Tilt fine Dimmer 0~255 0-100 % dimmer from dark to bright Strobe off, Leds off 3~103 Strobe from slow to fast, Leds on 104~10 Strobe off, Leds on Strobe...
-
Page 10: Menu Map
8. Menu Map 10 / 12... - Page 11 9. Key Features Voltage: AC100～240V, 50 / 60Hz Power: 145 W LED Source: 7x15W high power RGBW 4 in 1 LEDs Zoom: 4-60° Strobe: 0-20Hz Control Mode: DMX512, Auto, Sound-actived, Master-slave DMX Channels: 20 / 48 Channels selectable Dimmer: 0-100% linear dimmer Pan: 540°+16bit fine Tilt: 270°+16bit fine Display: LCD screen...
- Page 12 Never use alcohol or solvents.There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine parts from your local dealer 熠鸿灯光 版权所有 EHongLight © All rights reserved. 12 / 12...
