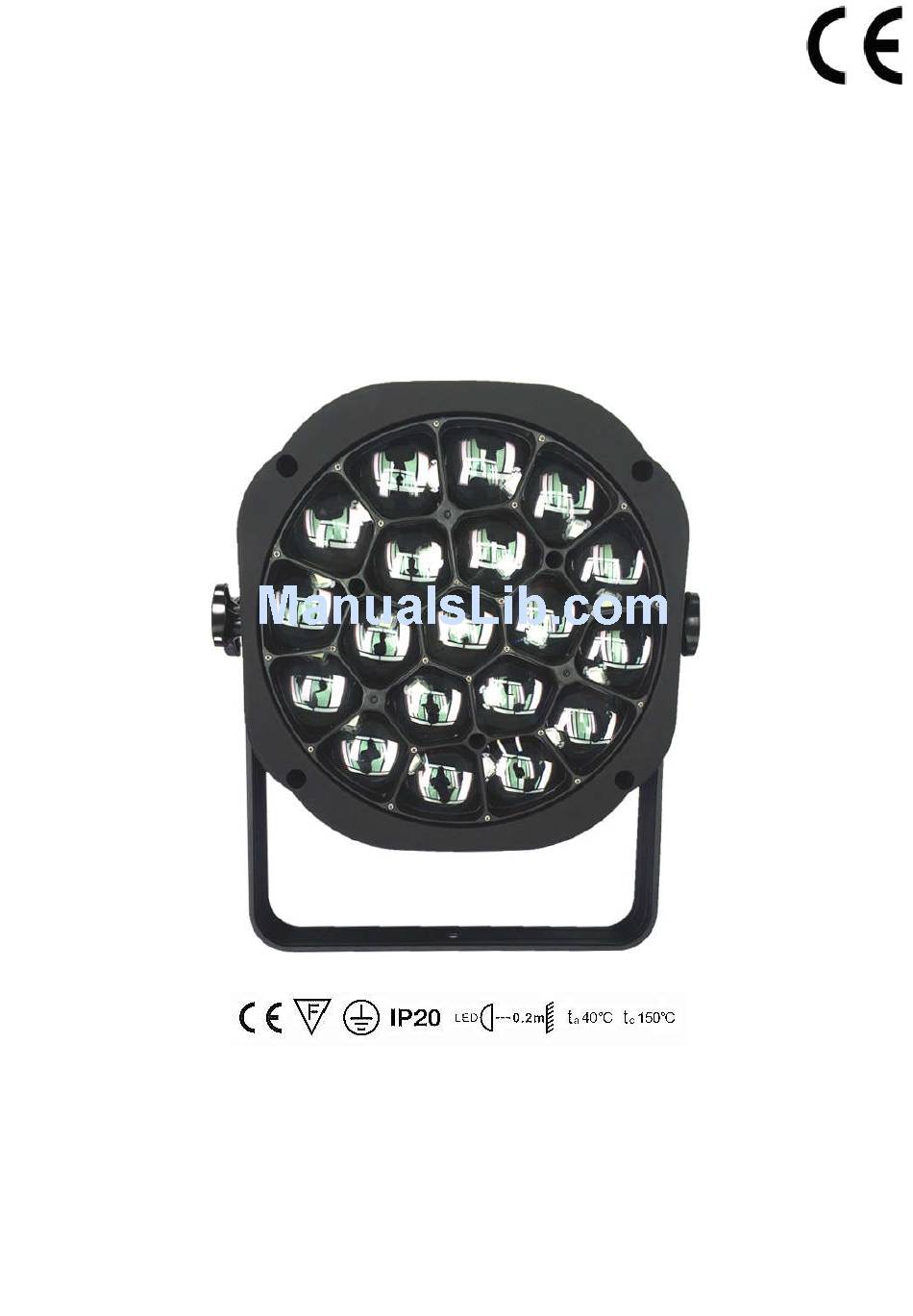

- Page 1 Amazing B eye Par ZOOM and Rotation 19pcs 15W 4-in-1 User Manual KEEP THIS MANUAL FOR FUTURE NEEDS 1 / 15...
- Page 2 1. Unpacking Thank you for choosing our B eye par. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions.
-
Page 3: Safety Instructions
2. Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. -
Page 4: Mounting And Installation
3. Operation Instructions -The LED par is for wash effect for on-site decoration purpose. -Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 5 Never stand directly below the device when mounting, removing, or servicing the fixture from a periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.
-
Page 6: Dmx-512 Control Connections
5. DMX-512 control connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving heads be connected together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. -
Page 7: Dmx Channels
6. DMX Channels 18CH Function DMX Value Details Dimmer 0-255 0-100% Dimmer from dark to bright Light up strobe 4-203 Strobe with the same step from slow to fast 204-255 Random strobe 0-255 0-100% Green dimmer Green 0-255 0-100% Green fine control Blue 0-255 0-100% Blue dimmer... - Page 8 22 channels mode Function Details Value 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer White Fine 0-255 White fine control 0-255...
- Page 9 94 CH Function DMX Value Details Dimmer 0-255 0-100 linear dimmer from dark to bright Light up Strobe 4-203 Strobe with the same step from slow to fast 204-255 Random strobe 0-255 1-100% Red linear dimmer from dark to bright Green 0-255 1-100% Green linear dimmer from dark to bright...
-
Page 10: Display Instruction
7. Display instruction 10 / 15... - Page 11 8. Board connection: LED driver board 11 / 15...
- Page 12 Screen board: 12 / 15...
- Page 13 9. Key Features Voltage: AC100V～240V 50-60HZ Power: 350W LED Source: 19x15W high power RGBW 4 in 1 LEDs Zoom: 4-60° Strobe: 0-20Hz Control Mode: DMX512,Sound-actived,Master/slave DMX Channels: 18CH/22CH/94CH Dimmer: 0-100% linear dimmer Display: LCD 3 colors display IP: IP20 Carton package Size: 37*37*43CM (1pcs/ctn) N.W:7.65 kg G.W: 9 kg Special Points.
-
Page 14: Photometric Data
10. Photometric Data: 14 / 15... - Page 15 Never use alcohol or solvents. There is no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine parts from your local dealer EHongLight © All rights reserved. www.EHongLight.com...
