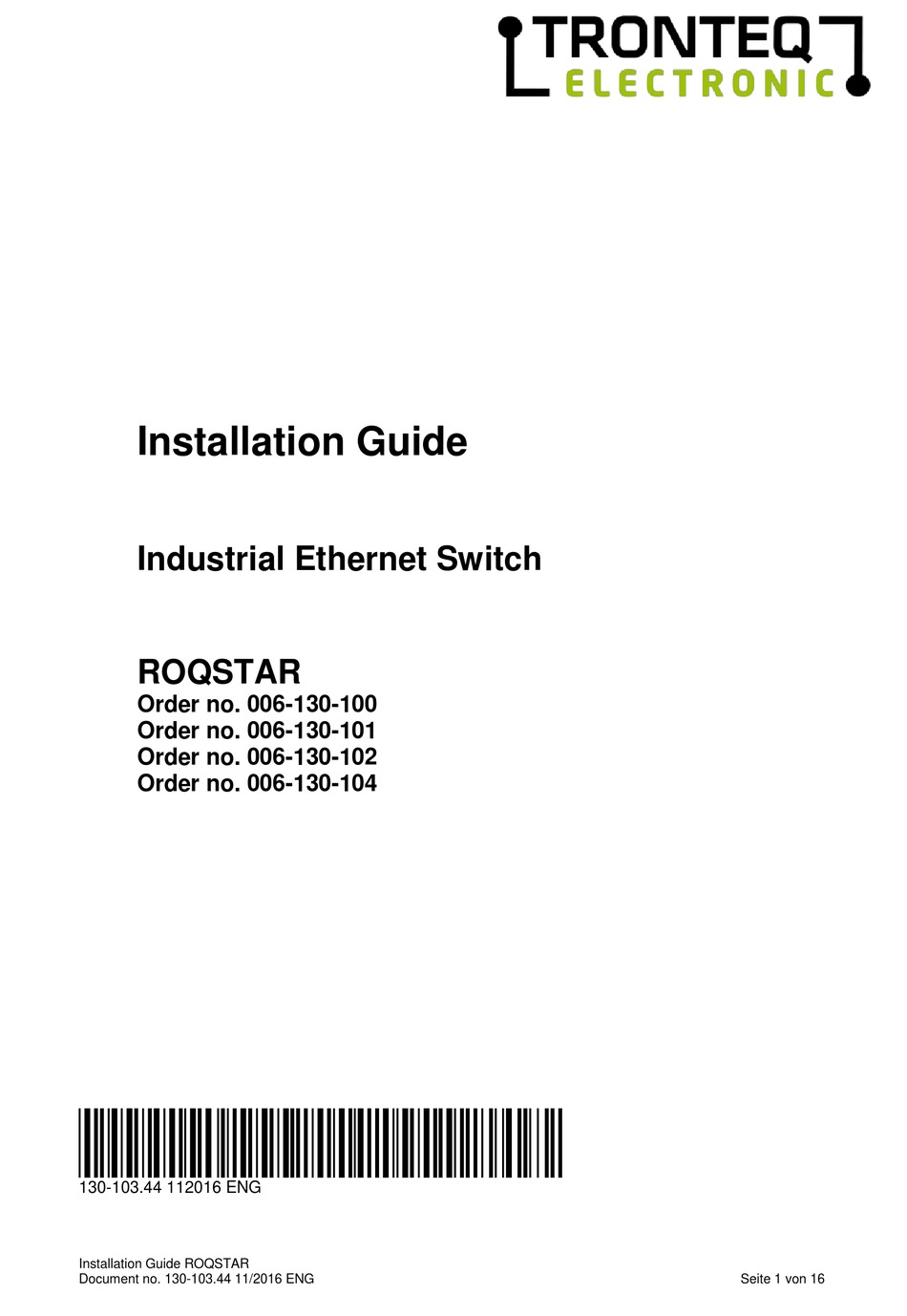

Installation Guide Industrial Ethernet Switch ROQSTAR Order no. 006-130-100 Order no. 006-130-101 Order no. 006-130-102 Order no. 006-130-104 130-10X.44 11/2016 ENG 130-103.44 112016 ENG Installation Guide ROQSTAR Document no. 130-103.44 11/2016 ENG Seite 1 von 16...
Page 2
Any other use which goes beyond in particular copying, reproduction, translation requires written consent of TRONTEQ Electronic. TRONTEQ Electronic reserves the right to modify the contents of this manual. In addition, we refer to the conditions of use specified in the license agreement.
Safety Instructions 1.1. Information about this operation instructions This operating instruction describes the application of the ROQSTAR Switches. It allows the safe and efficient handling of the device. The operating instruction is a part of the device and must be available for the users at any time.
1.3. Qualified Personnel The user must ensure that only qualified personnel will work with the device. The product/system described in this documentation may be operated only by personnel qualified for the specific task in accordance with the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.
Device Description 2.1. General ROQSTAR is an Ethernet Switch family with different functions for the use in industry and in transport applications. The ROQSTAR Lite and Full Managed Switch are equipped with managed software and are configurable through the integrated web interface. 2.2.
Installation Never perform wiring electrical connections if they are under voltage! Do not perform any assembly work on the device when it is under voltage! WARNING! 3.1. Mounting Perform the following steps for mounting the device: ► Make sure that all electrical connectors are volt-free. ►...
3.2. Connecting of power supply and fault contact The power supply can be connected either on V1 or on V2. For redundant power supply, connect both V1 and V2. Please find the electrical data in chapter 6.1. Name Description Image power supply 1, plus pole power supply 2, plus pole FAULT...
4.2. Configuration Proceed as follows for the first commissioning: Order no. 006-130-101/102/104 1. Connect the power supply. 2. Connect the PC / notebook to one of the Ethernet ports 1-8 of the device. 3. The connected PC / laptop must have the following network settings: ►...
5.2. Ethernet port LEDs Each network port is assigned two LEDs. Their meaning is given in the table below. Colour Activity Operational State none no network connection, Link-Down Link green lights up network connection, Link-Up none no data transfer yellow flashes data transfer with 10/100 MBit / s Technical data...
6.4. Standards and approvals The device is compliant with the following test standard. ► Electromagnetic radiation: ► EN61000-6-4 ► EN55022: Class A ► FCC47 CFR Part 15 Class A ► Immunity against conducted interference and external fields: ► EN61000-6-2 ► EN61000-4-2 ►...
Wiring diagrams 7.1. Power cable Connector Diagram Pin assigment* brown white black Fault blue Fault yellow/green * for accessories Order-No. 006-000-003 or 006-000-004 7.2. M12 to USB adapter M12 Connector Diagram USB Connector 7.3. Ethernet M12 to RJ45 cable M12 connector Diagram RJ45 connector 7.4.
Contact 9.1. Technical support Please concat our support team at support@tronteq.de if you have any technical questions or if you need technical training. 9.2. Specific product variants You have a specific problem and you need a product variant that doesn’t exist today. Please contact us for customer specific adaption of our product.
