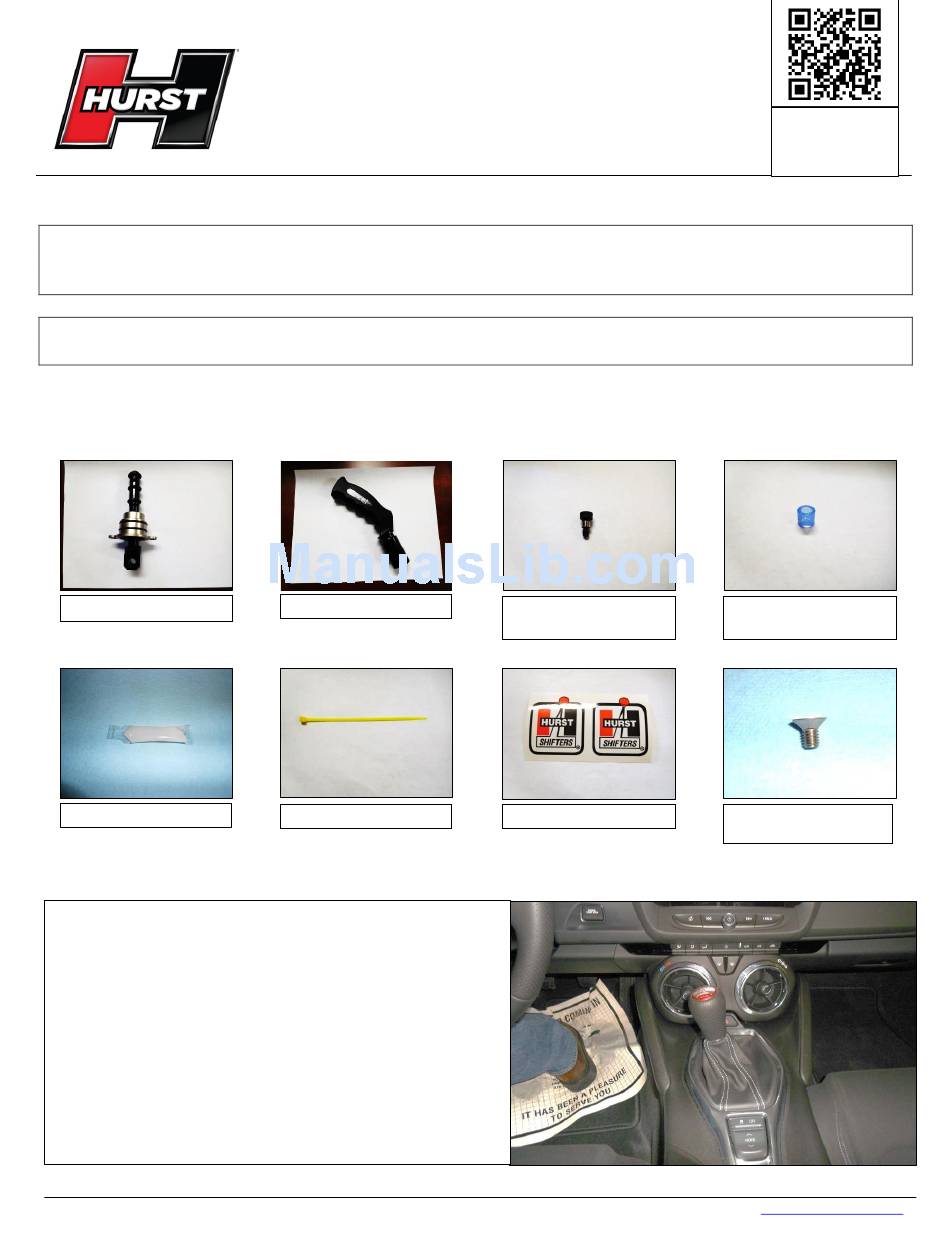

WORK SAFELY! For maximum safety, perform this installation on a clean, level surface and with the
engine turned off. Place blocks or wedges in front of and behind both rear wheels to prevent
movement in either direction.
CAUTION: To avoid any possibility of bodily injury or damage to vehicle, do not attempt installation
until you are confident that the vehicle is safely secured and will not move.
Shifter Assembly
Grease pack
1. Start by removing the shift boot, chrome bezel
and shift knob as one assembly
Technical Support (707) 544-4761
Installation Instructions
BILLET/PLUS PISTOL-GRIP SHIFTER
Fits: 2016 Camaro V6
with Manual Transmission
Catalog # 3916034
PARTS
Pistol grip
6" Tie Wrap
1/4x1/4 10-32
Shoulder Bolt (2)
Hurst Decal
1
Watch our
installation video
on YouTube
1/4" x 1/4" Isolation
Sleeve (2)
M6x10mm Counter
Sink Bolt (2)
www.HURST-SHIFTERS.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HURST 3916034
Summary of Contents for HURST 3916034
- Page 1 Manual Transmission on YouTube Catalog # 3916034 WORK SAFELY! For maximum safety, perform this installation on a clean, level surface and with the engine turned off. Place blocks or wedges in front of and behind both rear wheels to prevent movement in either direction.
- Page 2 3. Raise the chrome bezel high enough to gain access to the T25 Torx bolt that mounts the shift knob. Remove the bolt. 4. The shift knob, boot and chrome bezel can now be removed 5. Remove the isolation boot. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 3 7. Raise and support the vehicle using Jack stands or a hoist. Remove the (5) 13MM bolts from the cross brace. 8. Support the exhaust. 9. Remove the two 15mm nuts attaching the left side exhaust flange to the catalytic converter. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 4 Note: A 15mm ratchet wrench works well in this area. 13. The right front exhaust flange is a ball socket you can pry between the transmission cross member and the exhaust to pop it out. Note: A hammer handle works well for this. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 5 16. Remove the three 10mm bolts from the right and left side of the heat shield. Remove the heat shield. 17. The drive shaft must be removed. Start by making an alignment mark on the flex coupling and the transmission flange. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 6 This will allow the drive shaft to be removed from the vehicle. 21. The drive shaft can be squeezed together in order to clear the transmission and differential flange. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 7 25. The shifter housing is connected to the transmission with a pin on the left and right side. The pin has a spring lock at the end of it as shown here. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 8 Note: There are two spring loaded C clips for the cross pin. The cross pin and clips will be reused. 29. You can now remove the entire shifter assembly from the vehicle. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 9 The 10mm bolts and mounting ring will not be reused. 32. Apply a liberal amount of grease to the Hurst shifter assembly. 33. Install the Hurst shifter assembly in into the factory shifter housing. Bolt this in place using the provided M6x10mm counter sink bolts.
- Page 10 36. Apply a liberal amount of grease to the factory pins that that connect the shifter housing and shift rod to the transmission. 37. Reinstall the shifter housing. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 11 40. Remove the boot ring from the shift boot. Note: This is glued on so take care not to rip the shift boot. 41. With the boot inverted, install the Hurst pistol grip shifter through the boot. Technical Support (707) 544-4761...
- Page 12 Note: The pistol grip is designed so that the tie wrap tightens down in the machined groove. 43. Reinstall the factory isolation boot onto the Hurst pistol grip as shown. Note: For clarity purposes for the following procedures we left the isolation boot off.
- Page 13 Using an 1/8” allen wrench, tighten the shoulder bolts into place. 46. Align the chrome bezel to the center console and snap back into position. 47. Push the shift boot back down around the Hurst shifter. Technical Support (707) 544-4761 www.HURST-SHIFTERS.com...
- Page 14 IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Technical Service A highly trained technical service department is maintained by Hurst Performance to answer your technical questions, provide additional product information and offer various recommendations. Technical service calls, correspondence, and warranty questions should be directed to:...
