G a i n
C o n t r o l
o f
Y o u r
T o r q u e
V e r i f i c a t i o n
P r o g r a m
N o w !

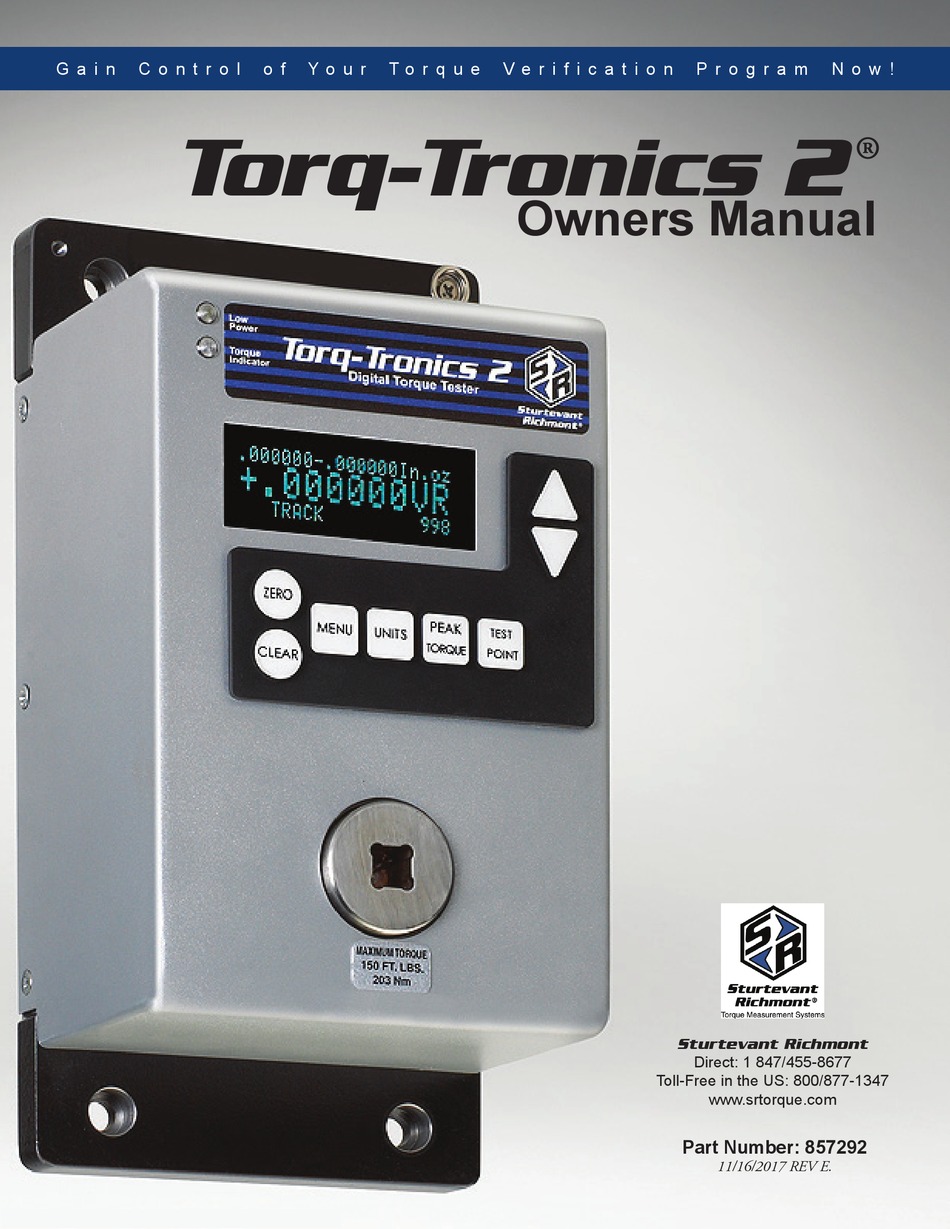

Torq-Tronics 2 ®
Owners Manual
Sturtevant Richmont
Direct: 1 847/455-8677
Toll-Free in the US: 800/877-1347
www.srtorque.com
Part Number: 857292
11/16/2017 REV E.
Torq-Tronics 2 ® / Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Torq-Tronics 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sturtevant Richmont Torq-Tronics 2

Summary of Contents for Sturtevant Richmont Torq-Tronics 2

  • Page 1 V e r i f i c a t i o n P r o g r a m N o w ! Torq-Tronics 2 ® Owners Manual Sturtevant Richmont Direct: 1 847/455-8677 Toll-Free in the US: 800/877-1347 www.srtorque.com Part Number: 857292 11/16/2017 REV E. Torq-Tronics 2 ® / Owners Manual...

  • Page 2: Table Of Contents

    Keys and Controls ......................10 • The installation location Operational Overview ....................11 must be capable of resisting Making the Most of the Torq-Tronics 2 ............... 12 the torque transmitted to it during tester use without Torque Testing ......................12 moving the tester or tipping How To Test a Manual Torque Screwdriver or a Click Type Torque Wrench ....

  • Page 3: Functionality Legend

    Mounting Holes Transducer Hex 3-Way Power Switch (Rocker) AC Power position Off Position Battery Power Position RS 232 Port 6 Volt, screw-on power adapter port Back plate 11/16/2017 REV E Document Page 3 of 39 Torq-Tronics 2 ® / Owners Manual...

  • Page 4: Torq-Tronics 2 And Ac Adaptor Are For Dry Location

    • Be sure torque wrench Torq-Tronics 2. For more information go to www.srtorque.com or go to the USB stick The new Torq-Tronics 2 has been engineered with new safeguards to help protect your equip- • Be sure torque wrench properly engages torque The new Torq-Tronics 2 has been engineered with new safeguards to help protect your equip- •...
  • Page 5 Institute, ANSI S12.6, Hearing Protectors. recommended when operating Personal hearing protection is Impact resistant eye protection Torq-Tronics 2® Digital Torque Testers should ted by the tool. Proper hearing conservation measures, including annual audiograms Personal hearing protection i or working near any power tool.

  • Page 6: Installation

    Carefully remove the Battery Compartment Cover using the handle on the cover. Install the four (4) AA NiMH batteries into the Battery Holder. Pay careful attention to battery orien- tation. Incorrect battery orientation will severely damage the Torq-Tronics 2 and void the warranty. Reinstall the Battery Compartment Cover. NOTE: USING BATTERIES OTH- ER THAN THE REQUIRED NIMH RECHARGE-ABLE BATTERIES WILL DAMAGE THE UNIT AND VOID THE WARRANTY.

  • Page 7: A Note About Batteries

    NiMH batteries work best and last the longest, but, you may choose another brand of bat- tery as long as it is a AA NiMH rechargeable battery. The quick charge battery recharger unit is available for from Sturtevant Richmont. Contact customer service at customerser- vice@srtorque.com to order.

  • Page 8: Four Line Vacuum Display

    Torq-Tronics 2 Owners Manual Four Line Vacuum Florescent Display (VFD) The Torq-Tronics 2 comes with a large display, that is easy to read in any lighting environment. Figure 1 The top line of numbers gives you the accept- able torque range for any specific test. When...

  • Page 9: Led Indicators

    Owners Manual 5.2: LED Indicators The Torq-Tronics 2 is equipped with 2 LED indicators: upper left hand side of the label above the Display screen. Green indicates the measurement is within target torque range. Torq-Tronics 2 is equipped with two LED indicators on the upper left hand side of the Display.

  • Page 10: Keys And Controls

    Use the ‘UP’ arrow key to select the desired unit of measure. 5.3.6.2 The Torq-Tronics 2 supports operation in English, S.I. and Metric units of Measure. 5.3.6.3 Important note: Changing the unit of measure causes the test point to be reset to zero.

  • Page 11: Operational Overview

    Operation Please follow the procedure for each wrench tested. Be sure the Torq-Tronics 2 tester has been exercised three times to capacity in the direction CW or CCW that it will be used. Adjustable wrenches should also be exercised three times at 4 different points along the scale of capacity before beginning the test.

  • Page 12: Making The Most Of The Torq-Tronics 2

    +/- 2% a calibration unit must have a minimum accuracy factor of +/-.5%. The Torq-Tronics 2 has an accuracy factor of +/- 0.5% meaning it can calibrate torque wrenches with an accuracy factor of +/-2%. It is also capable of calibrating wrenches with a lesser accuracy such as +/- 6%.
  • Page 13 Torq-Tronics 2 Owners Manual General Set Up Process For All Tests: The following process of setting up Torq-Tronics 2 for testing can be used to verify or calibrate any acceptable tool type. (Impact tools are not acceptable.) Memory: If you see three digits in the lower right hand side of the display, memory function is set to on.
  • Page 14 The default accuracy toler- ance range is +/-4%. Sturtevant Richmont Direct: 1 847/455-8677 U.S. Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV E Document Page 14 of 39 Torq-Tronics 2 ® / Owners Manual...

  • Page 15: How To Test A Manual Torque Screwdriver Or A Click Type Torque Wrench

    Direct: 1 847/455-8677 U.S. Toll-Free: 800/877-1347 10.7 Engage the wrench to the tester and begin testing. www.srtorque.com 10.8 There is no auto-clear in track mode. 11/16/2017 REV E. Document Page 15 of 39 Torq-Tronics 2 ® / Owners Manual...

  • Page 16: How To Test A Power Tool

    12.6 Remember: Torq-Tronics 2 has an accuracy of +/- .5%. Some digital torque wrenches have a +/- 1% accuracy. To comply with the 4 to 1 standard accuracy ratio for testers and wrenches, to test a wrench with +/- 1% you must use a tester with +/-.25 accuracy.

  • Page 17: Over Capacity Situations

    Owners Manual Over Capacity Situations Each Torq-Tronics 2 unit has a rated capacity that is easily visible on the front of the unit near the transducer. Tools should be tested that are between 10% and 75% of the rated capacity for the unit.

  • Page 18: Care And Maintenance Of The Torq-Tronics 2

    However, at 120% of capacity we can no longer be 100% certain that the unit will function properly. To safeguard your test results we suggest that you have any Torq-Tronics 2 unit that has been placed in overload, tested. To test the Torq-Tronics 2 follow the procedures outlined in Section 15: Calibra- tion, or email us at customerservice@srtorque.com to schedule returning the Torq-Tronics 2 so we can...

  • Page 19: Calibrating The Torq-Tronics 2

    Owners Manual Calibrating The Torq-Tronics 2 15.1 Overview This is the recommended process for Calibration Check of the Torq-Tronics 2 tester. 15.2 Required Equipment To ascertain the required equipment for any given calibration check, look up the capac- ity of the tester in the Calibration Check Chart below.
  • Page 20 Torq-Tronics 2 Owners Manual This page intentionally left blank Sturtevant Richmont Direct: 1 847/455-8677 U.S. Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV E Document Page 20 of 39 Torq-Tronics 2 ® / Owners Manual...
  • Page 21 % of I. V. range from 10% to 100% of Full Scale Torque Tester Model +/-.5 Torq-Tronics 2 Sturtevant Richmont Direct: 1 847/455-8677 U.S. Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV D. Document Page 21 of 39 Torq-Tronics 2 ® / Owners Manual...

  • Page 22: Adjusting The Torq-Tronics 2

    Torq-Tronics 2 Owners Manual Adjusting the Torq-Tronics 2 16.1 Overview This is the recommended process for Calibration Adjustment of the Torq-Tronics 2 tester. 16.2 Required Equipment To ascertain the required equipment for any given calibration, look up the capacity of the tester found in Appendix B.
  • Page 23 Wait for the arm to completely stop moving then press the ‘CLEAR’ or Direct: 1 847/455-8677 ‘DOWN’ key on the unit. U.S. Toll-Free: 800/877-1347 Observe acknowledgement of the 50% clockwise calibration point. www.srtorque.com 11/16/2017 REV E. Document Page 23 of 39 Torq-Tronics 2 ® / Owners Manual...
  • Page 24 U.S. Toll-Free: 800/877-1347 Observe acknowledgement of the 10% counter clockwise calibration point. www.srtorque.com 16.4.48 Press the ‘MENU’ or ‘UP’ key to move to the next test point. 11/16/2017 REV E. Document Page 24 of 39 Torq-Tronics 2 ® / Owners Manual...
  • Page 25 Wait for the arm to completely stop moving then press the ‘CLEAR’ or www.srtorque.com ‘DOWN’ key on the unit. Observe acknowledgement of the 90% counter clockwise calibration point. 11/16/2017 REV E. Document Page 25 of 39 Torq-Tronics 2 ® / Owners Manual...

  • Page 26: Additional Resources

    PuTTY and the directions please follow this link: http://www.chiark.greenend.org. uk/~sgtatham/putty/download.html Torque Tool Manager 2: You should note that at this time Torq-Tronics 2 and Torque Tool Manager 2 (TTM2) have one-way communication between them, with the informa- tion flowing from the Torq-Tronics 2 to TTM2.

  • Page 27: Serial Commands

    A.1 Default Factory Communication Settings ...............28 A.2 Clearing ‘Overload’ of Torq-Tronics 2 process ............28 A.3 To See the Captured Overload Point of Torq-Tronics 2 process ......28 A.4 Request tester to generate and print a report of data captured ......29 A.5 Serial Messaging Command List ................29 A.5.1...

  • Page 28: Default Factory Communication Settings

    |_Controlled by POkNg |_controlled bt PMode |_Controlled by PUnit |_Controlled by PActTor |_Controlled by PSine. Sturtevant Richmont Direct: 1 847/455-8677 Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV E Document Page 28 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...

  • Page 29: Request Tester To Generate And Print A Report Of Data Captured

    A.5.1.9 Exit Diagnostic mode: Type D0< Enter > Note: the 0 is a ZERO. Returns message: DiaOff<CR+LF> Sturtevant Richmont Direct: 1 847/455-8677 Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV E. Document Page 29 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...

  • Page 30: Commands Available Only When Calibration Mode Is On

    A.5.3.1 Enter Transducer Calibration Adjustment procedure Type: M<Enter> A.5.3.2 Unlock and clear an overload transducer condition Type: Z<Enter> Sturtevant Richmont Direct: 1 847/455-8677 Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV E. Document Page 30 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...

  • Page 31: Commands Available At All Times

    = 0 = Print ‘,’ for field seprator. 1 = Print ‘tab’ for field seprator. *Reserved = 0 = Reserved *Reserved = 0 = Reserved Sturtevant Richmont Direct: 1 847/455-8677 Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV E. Document Page 31 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...

  • Page 32: Retrieve U.s. Time Date Clock

    Example: 01234567<CR+LF> Direct: 1 847/455-8677 Toll-Free: 800/877-1347 A.6.1.13 Show transducer serial number. (This is eight characters long.) CMT<Enter> www.srtorque.com Example: 01234567<CR+LF> 11/16/2017 REV E. Document Page 32 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...

  • Page 33: Show The Auto Clear Time In Seconds

    A.6.1.22 Print the current torque reading. String construction controlled by the last state of the TX Toll-Free: 800/877-1347 command. www.srtorque.com Type: P<Enter> 11/16/2017 REV E. Document Page 33 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...

  • Page 34: A.6.1.23 Show The Current Number Of Records Stored In Memory

    Example Returns: ‘03’<CR+LF> A6.1.32 Make all units of measure available. Type: YA<Enter> Example Returns: ‘00’<CR+LF> Sturtevant Richmont Direct: 1 847/455-8677 Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV E. Document Page 34 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...

  • Page 35: Special Ttm 2 Interface Commands

    *Note: all torque strings will report in “TTM 2” format until the tester is rebooted. Sturtevant Richmont Direct: 1 847/455-8677 Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 REV E. Document Page 35 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...
  • Page 36 11/16/2017 REV E Document Page 36 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix A: Serial Commands...

  • Page 37: Calibration Charts

    Direct: 1 847/455-8677 100% 1Lb Platform + 5 Lbs + 4 Lbs Toll-Free: 800/877-1347 www.srtorque.com 11/16/2017 Rev E Page 37 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix B: Calibration Charts 11/16/2017 Rev E Document Page 39 OF 39...
  • Page 38 37.5 5Lb Platform + 20 Lbs + 2 Lb + 8 Oz www.srtorque.com 11/16/2017 Rev E. Document Page 38 of 39 Torq-Tronics 2 ® / Owners Manual / Appendix B: Calibration Charts 11/16/2017 Rev E Document Page 39 OF 39...
  • Page 39 5Lb Platform + 50 Lbs + 50 Lb + 20 Lb 100% +20 Lb + 5 Lb Sturtevant Richmont Direct: 1 847/455-8677 Toll-Free: 800/877-1347 www.srtorque.com Torq-Tronics 2 ® / Owners Manual / Appendix B: Calibration Charts 11/16/2017 Rev E Document Page 39 OF 39...
