Summary of Contents for Drija MALBEC 7

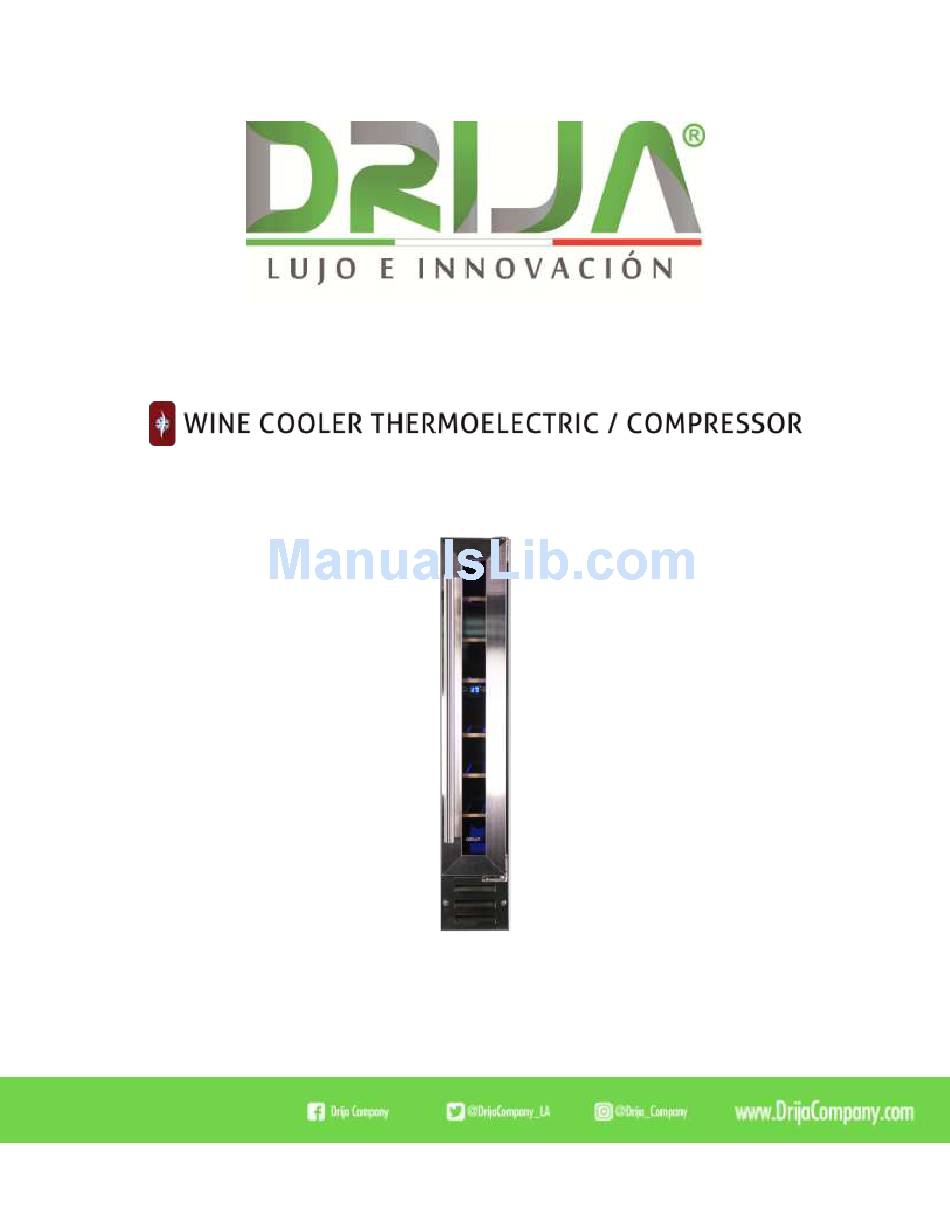

- Page 1 User manual MALBEC 7 7 bottles...
-
Page 2: Table Of Contents
User manual WINE COOLER | MALBEC 7 1. INTRODUCTION......................... 2 2. PRODUCT SPECIFICATIONS ................... 3 3. DESCRIPTION OF THE APPLIANCE ................5 4. PRODUCT USE ........................7 5. CLEANING AND MAINTENANCE ..................9 6. INSTALLATION ........................9 7. PROBLEM SOLVING......................13... -
Page 3: Introduction
Do not allow children to touch the controls or play with the appliances. SERVICES Do not attempt to repair the appliance yourself, as this may cause injury or more serious bad performance. If you need a service call, contact the customer service department of DRIJA COMPANY. -
Page 4: Product Specifications
User manual WINE COOLER | MALBEC 7 2. PRODUCT SPECIFICATIONS DIMENSIONS OF THE APPLIANCE DIMENSIONS OF THE OPENING High: 872-890mm High: 875mm (min) Width: 148mm Width: 155mm (min) Depth: 525mm Depth: 570mm (min) - Page 5 User manual WINE COOLER | MALBEC 7 Gross capacity: 22litros Bottle capacity: 7 bottles of 0.75 liters Bordeaux style Energy efficiency class: B Noise level: 39 dB Electronic control operation push button Led screen ...
-
Page 6: Description Of The Appliance
User manual WINE COOLER | MALBEC 7 3. DESCRIPTION OF THE APPLIANCE Door steel inoxidable Stainless Steel Handle Digital Control Panel Adjustable shelves Adjustable legs... - Page 7 User manual WINE COOLER | MALBEC 7 CONTROL PANEL 1. Control button ON / 2. Button light control 3. Temperature display 4. Temperature button 5. Button temperature less DESCRIPTION OF PRODUCT CHARACTERISTICS CONTROL PANEL The control panel is located in the center of the device, behind the glass door. This means that it is easy to adjust the temperature of the device and see that the device temperature is adjusted.
-
Page 8: Product Use
BEFORE TURNING Make sure it has been installed by a qualified person, according to the information contained in the installation instructions DRIJA COMPANY. After delivery, wait for eight hours before connecting the apparatus to the mains. This will allow the refrigerant gases that may have been altered during the transportation process to settle. - Page 9 User manual WINE COOLER | MALBEC 7 If the unit is disconnected, you must leave at least 5 minutes before restarting the appliance or reconnecting to the network. APPARATUS AND ADJUST ON TEMPERATURE To switch on, press the ON / OFF button (1) for 5 seconds.
-
Page 10: Cleaning And Maintenance
User manual WINE COOLER | MALBEC 7 5. CLEANING AND MAINTENANCE WARNING: PLEASE ENSURE THAT YOUR APPLIANCE is disconnected from your mains supply before attempting to clean Do not use any water pouring or spraying on. The interior of the case should be cleaned periodically, using a solution of Sosa and warm water. - Page 11 User manual WINE COOLER | MALBEC 7 climatic classification Appropriate temperature environment +10 to +32 Degrees Celsius +16 to +32 Degrees Celsius +18 to +38 Degrees Celsius +18 to +43 Degrees Celsius Positioning requires two persons to prevent injury or damage to the device.
- Page 12 User manual WINE COOLER | MALBEC 7 INSTALLATION FLUSH Wine cabinet can be used as a standalone or built into the unit. Clearances shown in the drawing above should be followed for both types of installation. In particular, the dimension of depth should be observed.
- Page 13 User manual WINE COOLER | MALBEC 7 INVEST YOUR DOOR CABINET This device has the ability to open the door from the right or left side. Any part removes the appliance when the door reverses should be stored for later use.
-
Page 14: Problem Solving
User manual WINE COOLER | MALBEC 7 7. PROBLEM SOLVING PROBLEM POSSIBLE CAUSE Not plugged. Wine cooler does not work. The breakers were fired or fuse is blown. Temperature control is set to warm level. Change the schedule to maximum cold and wait a few hours until the temperature stabilizes.
