OPERATION MANUAL
Version 03
VIBRATION METER
BALTECH
VP-3410

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-3410 and is the answer not in the manual?

Questions and answers

Related Manuals for Baltech VP-3410

Summary of Contents for Baltech VP-3410

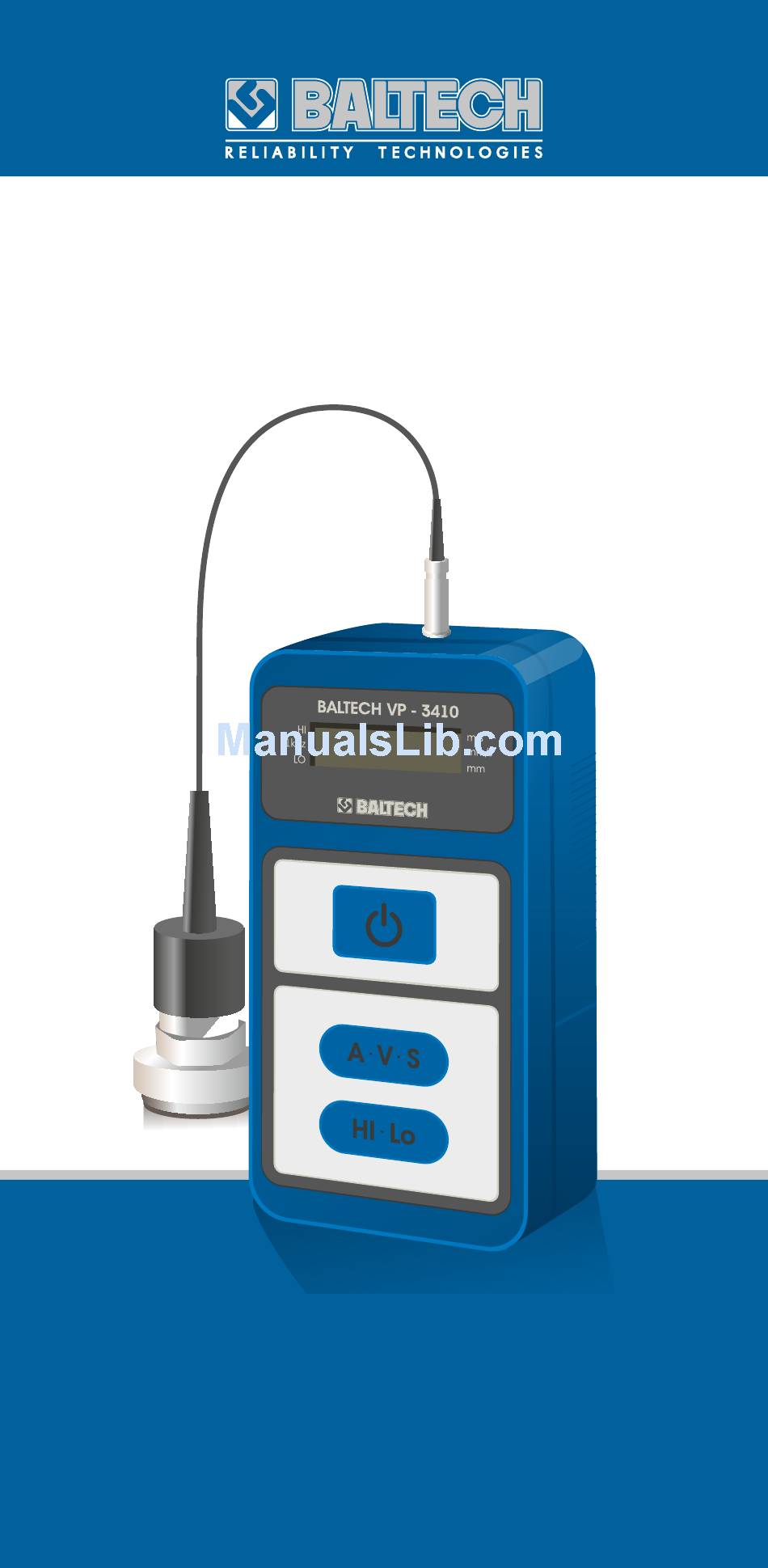

  • Page 1 OPERATION MANUAL Version 03 VIBRATION METER BALTECH VP-3410...

  • Page 2: Table Of Contents

    CONTENT 1. Introduction .............2 1.1. Applied conventions ............2 2. Requirements of security measures......3 3. Technical description..........3 3.1. Assignment..............3 3.2. Technical characteristics..........3 3.3. Structure of vibration meter...........5 3.4. Structure and functioning of vibration meter....5 3.4.1. General principles of operation........5 3.5. Marking and packing.............6 4.

  • Page 3: Introduction

    BALTECH VP-3410. All employees of BALTECH GmbH want our users to be satisfied with operation of purchased fixtures around here. That is why, if required in the event of any questions connected with operation of vibration meter, do not hesitate to contact specialists of BALTECH GmbH.

  • Page 4: Requirements Of Security Measures

    Apply vibration meter only its intended purpose. TECHNICAL DESCRIPTION 3.1. Assignment Vibration meter BALTECH VP-3410 is designed to perform vibration measurement of a wide range of machines for the purpose of checking their technical condition. The vibration meter is a simple, portable measurement fixture, which allows to perform the following tasks: •...
  • Page 5 Absolute expanded uncertainity, unit of measurement, up to: Via measuring circuit of acceleration (on ±2 dgt frequency reference 160 Hz) and velocity ±(0,05 × x) (on frequency reference 80 Hz) ±2 dgt Via measuring circuit of displacement (on ±(0,06 × x) frequency reference где...

  • Page 6: Structure Of Vibration Meter

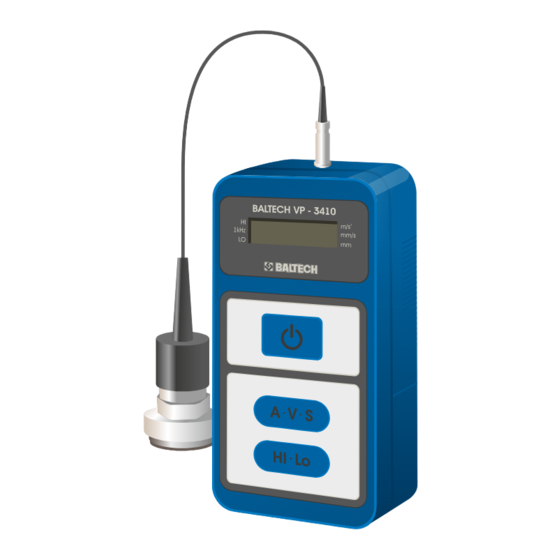

    (Picture 3-2). Battery is inside the case in a battery pack. 1. Electronic unit 2. Piezosensor 3. Magnet clamp 4. Cable 5. Chip shield Рiс. 3-1. Visual appearance of vibration meter BALTECH VP-3410...

  • Page 7: Marking And Packing

    2. ON/OFF 3. Choice of measurement mode 4. Change of frequency range Рiс. 3-2. Front panel of vibration meter BALTECH VP-3410 3.5. Marking and packing Marking of fixture is made in the form of the nameplate on the back side of electronic unit. On the nameplate it is indicated the name of fixture, power supply, capacity, article, serial number and name of manufacturer.

  • Page 8: Commission Of Vibration Meter

    4.2.2. Sensor installation Vibration meter BALTECH VP-3410 uses an acceleration sensor, which is connected to the electronic fixture with a help of low- noise cable.

  • Page 9: Power Supply Connection

    ATTENTION Before sensor installation it is necessary to remove chip shield. ATTENTION Before operation please make sure that the sensor firmly connected to magnet clamp. 4.2.3. Power supply connection Just press the measurement button to switch on the fixture. (Pic. 4-2) Рiс.

  • Page 10: Choice Of Interval For Frequency Range

    А-Аcceleration V-Velocity S-Displacement Measurement mode indicator Рис. 4-3. Indicator of measurement mode 4.3.2. Choice of interval for frequency range While measuring of acceleration it can be used button of change for frequency range «HI*Lo» (Pic. 3-2). Selected frequency range will be indicated by arrow in the left part of the screen. (Pic.

  • Page 11: Execution Of Measurements

    MAINTENANCE SUPPORT OF VIBRATION METER It is necessary to keep vibration meter VP-3410 clean, not to allow severe contamination. If there any contaminations on the electronic unit, then one should wipe it with wet nap.

  • Page 12: Storage And Transport

    Батарея (6F22, 6LF22) Рiс. 5-1. Replacement of battery STORAGE AND TRANSPORT While transportation the vibration meter must be protected from heavy shocks and vibrations. If the vibration meter is not used for a long period of time, it is necessary to remove the battery in order to prevent outflow of liquid from it, which may result in the fixture damage.

  • Page 13: Warranty Liabilities

    • the product was connected incorrectly or electric power system does not correspond to technical characteristics of the product. Warranty repair is performed at service centre BALTECH GmbH, address: Kronsforder Allee 45, 23560 Lübeck Germany, t/f: +49 (0) 451-370-87-700, e-mail: info@baltech.biz, I net: http://www.baltech.biz...

  • Page 14: Acceptance And Packing Certificate

    ACCEPTANCE AND PACKING CERTIFICATES Vibration meter BALTECH VP-3410 No. __________ as one set of shipment with acceleration sensor No. __________ was qualified for operation. Date for release «_____» ________________20______ Place of seal ____________________ signature of manufacturer representative Vibration meter BALTECH VP-3410 No. ________________ was packed at the manufacturer place according to requirement of technical regulations.

  • Page 15: Training

    Theory and practice Training course TOP-103 For effective and proper operation of fixtures series BALTECH VP we recommend you to draw attention: • Specialists, who work with the fixture, must be certified on the course ТОР-103 «Vibration condition monitoring and diagnostics.
  • Page 16 BALTECH GmbH Kronsforder Allee 45, 23560 Lübeck Germany +49 (0) 451-370-87-700 E-Mail: info@baltech.biz www.baltech.biz...
