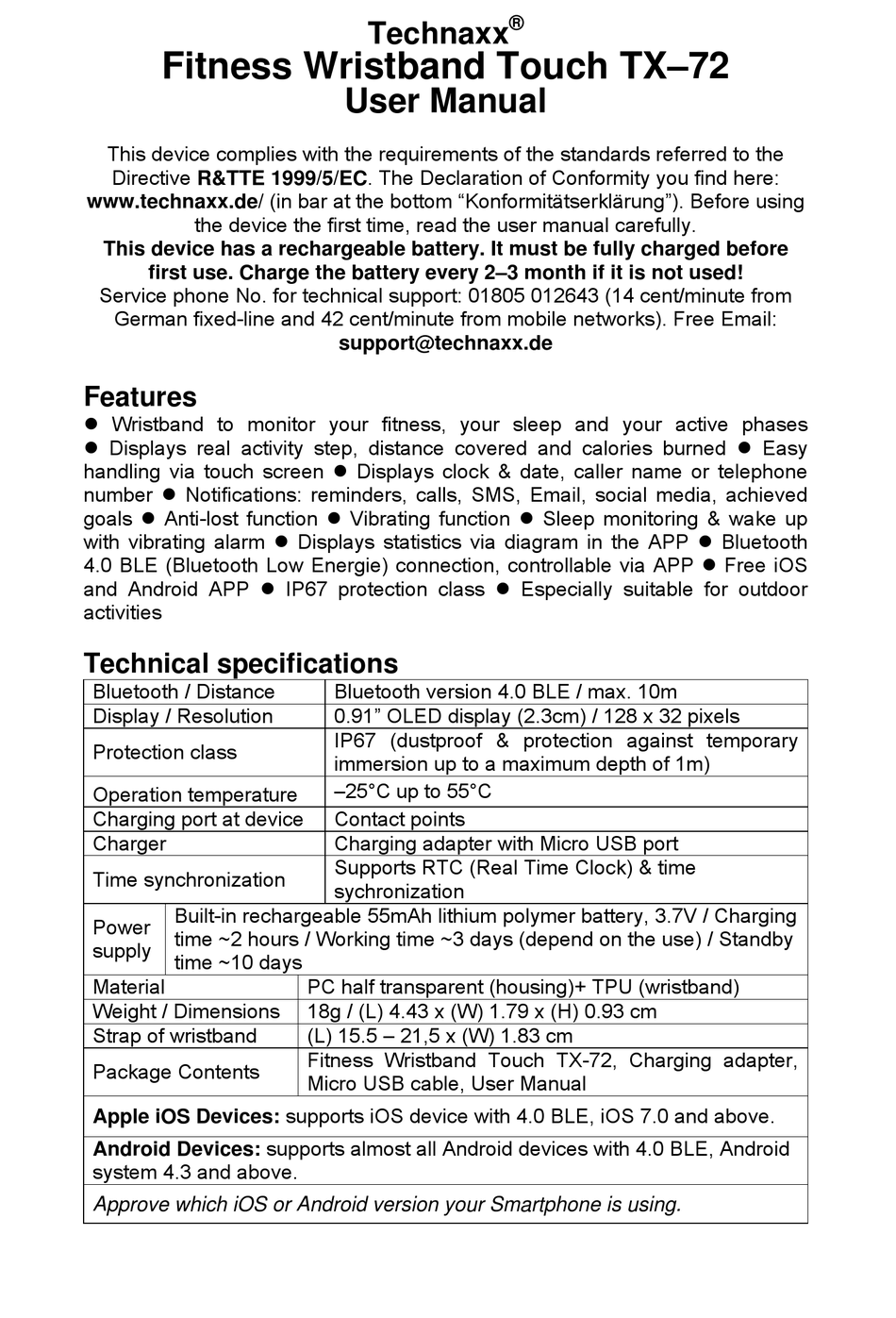

Fitness Wristband Touch TX–72
This device complies with the requirements of the standards referred to the
Directive R&TTE 1999/5/EC. The Declaration of Conformity you find here:
www.technaxx.de/ (in bar at the bottom "Konformitätserklärung"). Before using
the device the first time, read the user manual carefully.
This device has a rechargeable battery. It must be fully charged before
first use. Charge the battery every 2–3 month if it is not used!
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks). Free Email:
Features
 Wristband to monitor your fitness, your sleep and your active phases
 Displays real activity step, distance covered and calories burned  Easy
handling via touch screen  Displays clock & date, caller name or telephone
number  Notifications: reminders, calls, SMS, Email, social media, achieved
goals  Anti-lost function  Vibrating function  Sleep monitoring & wake up
with vibrating alarm  Displays statistics via diagram in the APP  Bluetooth
4.0 BLE (Bluetooth Low Energie) connection, controllable via APP  Free iOS
and Android APP  IP67 protection class  Especially suitable for outdoor
activities

Technical specifications

Bluetooth / Distance
Display / Resolution
Protection class
Operation temperature
Charging port at device
Charger
Time synchronization
Built-in rechargeable 55mAh lithium polymer battery, 3.7V / Charging
Power
time ~2 hours / Working time ~3 days (depend on the use) / Standby
supply
time ~10 days
Material
Weight / Dimensions
Strap of wristband
Package Contents
Apple iOS Devices: supports iOS device with 4.0 BLE, iOS 7.0 and above.
Android Devices: supports almost all Android devices with 4.0 BLE, Android
system 4.3 and above.
Approve which iOS or Android version your Smartphone is using.
Technaxx

User Manual

support@technaxx.de
Bluetooth version 4.0 BLE / max. 10m
0.91" OLED display (2.3cm) / 128 x 32 pixels
IP67 (dustproof & protection against temporary
immersion up to a maximum depth of 1m)
–25°C up to 55°C
Contact points
Charging adapter with Micro USB port
Supports RTC (Real Time Clock) & time
sychronization
PC half transparent (housing)+ TPU (wristband)
18g / (L) 4.43 x (W) 1.79 x (H) 0.93 cm
(L) 15.5 – 21,5 x (W) 1.83 cm
Fitness Wristband Touch TX-72, Charging adapter,
Micro USB cable, User Manual
®

Advertisement

loading

Related Manuals for Technaxx TX-72

Summary of Contents for Technaxx TX-72

  • Page 1: User Manual

    This device complies with the requirements of the standards referred to the Directive R&TTE 1999/5/EC. The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before using the device the first time, read the user manual carefully.
  • Page 2 1. Connect the charging adapter Position the charging cradle to connect to the back of your TX-72 wristband. Hint: Charge your TX-72 wristband 2 hours before first use. 2. Make sure they are on the right places Match the pins of the charging adapter with the contact points on your TX-72 wristband and snap them together.
  • Page 3 Standby time is ~10 days (depending on the actual usage). Do not try to take out built-in battery. Use the TX-72 charging adapter with the included Micro USB cable for charging. Keep using and charging the wristband.

  • Page 4: Device Initialization

    5. After the pairing process success, you will receive notifications on your TX-72 wristband as well as on your Smartphone Repeat the process if failed. If you want to pair the TX-72 wristband with another account, you should unpair with this account first.
  • Page 5 6. Main menu Wipe left and wipe right to change screens. Please make sure your TX-72 wristband has enough battery to avoid invalid operation. Time, date The Clock Screen features the Time and Date. It displays when you wake up your TX-72.
  • Page 6 Go Back Battery Status Battery status is the first screen of the Settings Menu. Hint: For best results, be sure to charge your TX-72 wristband when the battery level is below 20%. Info Menu The Info Menu displays technical information about your TX-72 wristband.
  • Page 7 Restart is a troubleshooting feature that resolves memory issues, much like the restart button on a desktop computer. No (!) data is deleted when restarting your TX-72 wristband. 1. Click on APPS and then on the “Gear” icon enter the Settings Menu.
  • Page 8 Click the “Reminders” option of “My Fitness Pro” APP to add daily reminding. You can set 6 kinds of daily reminding for the most, and you may select the provision type, preference time and date. Your TX-72 wristband will vibrate slightly and display the corresponding reminding icon to remind you. Click the bracelet to neglect the reminding.
  • Page 9 When using the TX-72 wristband for the first time, synchronize it with your mobile phone via the „My Fitness Pro“ APP. 1. Activate Bluetooth, internet on your phone, open the APP, register it and then you will see the main interface, click in the Sports interface.
  • Page 10 Login! For Login put your email & password. You forgot your password? Then reset your password with pressing “Reset My Password” to sign up fill all required fields like the following pictures. After successful registration you see the picture below. Select “TX-72” & press “Next”.
  • Page 11 When the appropriate wristband was found you will receive a pairing, request tap on the display to accept the pairing. When pairing with TX-72 was successful, you see the picture below and start the button “Start now”. Pairing...
  • Page 12 Tap on , to synchronize your bracelet with the mobile phone. Now you can track your progress on your mobile phone. The graphic down shows your daily achieved activities.
  • Page 13 The graphic down shows your weekly achieved activities. The graphic down shows your monthly achieved activities. The graphic down shows percentage of your daily achieved activities. The graphic down shows your weekly achieved activities in graphic.
  • Page 14 The graphic down shows your monthly achieved activities in graphic. The graphic down shows your monthly achieved Calorie in graphic. The following picture shows your sleep status. The graphic down shows percentage of your daily sleep status.
  • Page 15 The graphic down shows percentage of your weekly sleep status. The graphic down shows percentage of your monthly sleep status. Main Setting page: The following picture shows type of notifications which can be selected. You can select all types of notifications.
  • Page 16 Set your daily goals. To enter you sleep activities, adjust under the mode “Preset Sleep” your estimated sleep time. Under “Time Format” you can choose between the 12h (12 hours) or 24h (24 hours) time format.
  • Page 17 Set your reminders Press at the “+” symbol. Select the type of reminders and select the day of the week for which you need the reminder and put the time to remember. After you finished setting the reminder you can edit every reminder which was saved! Save the reminders after editing.
  • Page 18 Profile can be edited like in the following pictures. Here you can set your birthday, gender, height and weight.

  • Page 19: Troubleshooting

    1. Check if the network and Bluetooth of your mobile Failure of the TX-72 connection by the phone are turned on at the same time to the TX-72 wirstband. 2. Check if the TX-72 wristband is near the mobile phone and the connection distance is within max. 5 meters.
  • Page 20 Wipe the cleaned device accurately. Important Notice: Should battery fluid leak from a battery, wipe the battery case with a soft cloth dry. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany...
