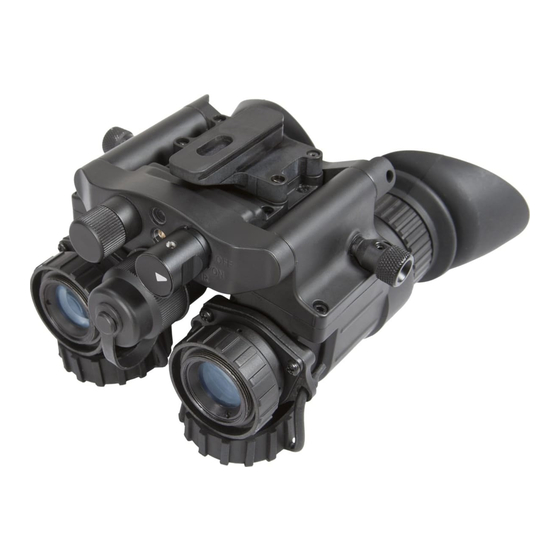

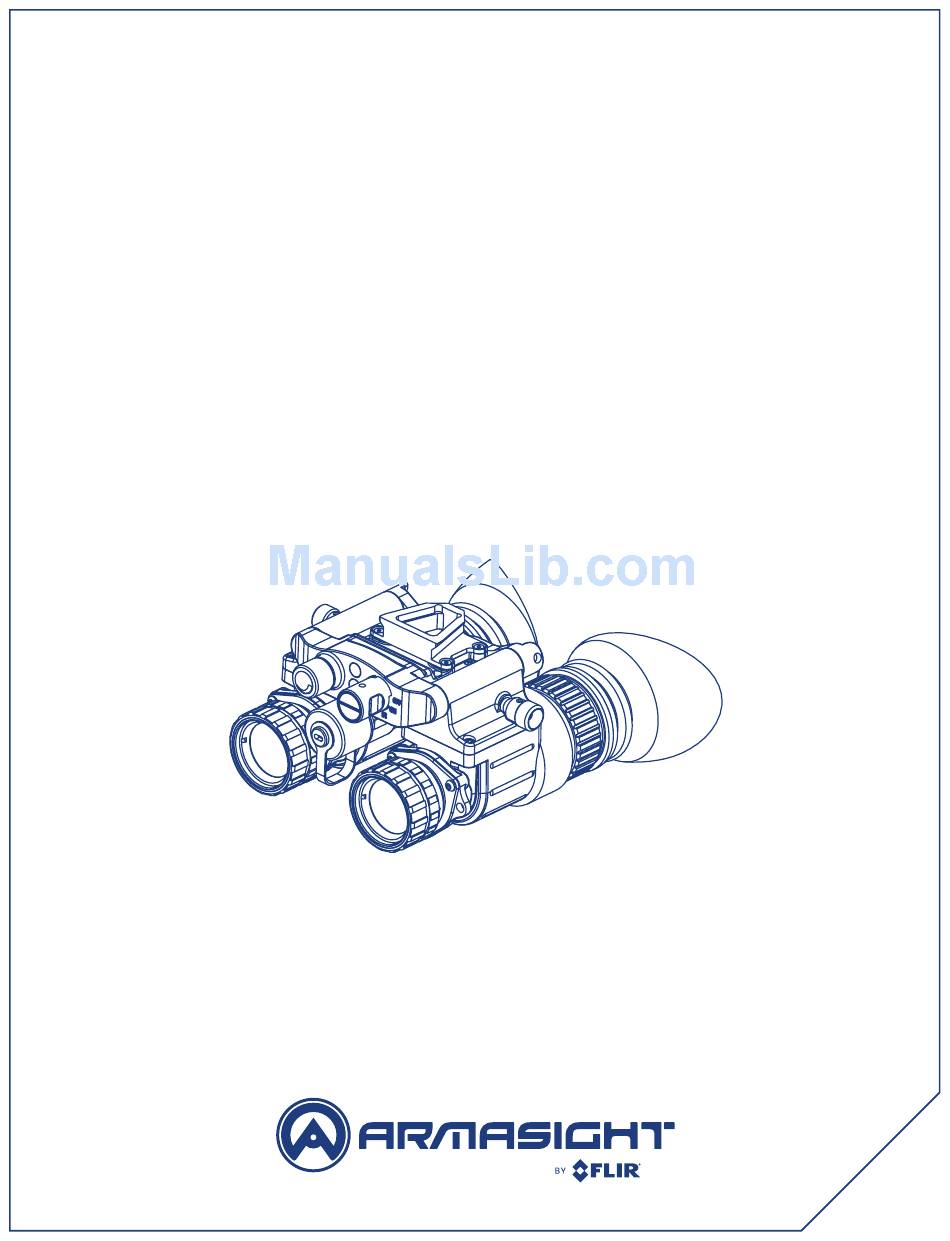

  • Page 1 BNVD ARMASIGHT by FLIR ® Night Vision Binoculars U S E R M A N U A L...
  • Page 2 © 2017 FLIR Systems, Inc. All rights reserved worldwide. No parts Note 1: This equipment has been tested and found to comply with the of this manual, in whole or in part, may be copied, photocopied, limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 3: Table Of Contents

    CONTENT Page Safety Statement 1. Introduction 2. Getting Started 3. Operating the System 4. Maintenance 5. Warranty 6. Specifications 7. Spare Parts BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 4: Safety Statement

    Avoid prolonged activation of the unit’s IR illuminator in binoculars. Nevertheless, in the industry, and throughout this manual, these conditions. this type of device is also referred to as NVG. BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 5: Introduction

    • Optional remote battery pack for extended use • Limited 2-year warranty 1.4 REGISTER YOUR BNVD THERMAL IMAGING You can register your product online at: www.flir.com BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 6: Getting Started

    4. Screw the battery cap back into place. Sacrificial Window Battery Polarity Symbol Battery Battery Adapter AA Battery Quick Start Guide Thank You Card BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 7: Optional Equipment

    (Includes: Wilcox L4 G24 w/ Low Profile Breakaway mount, Wilcox 3 Hole Shroud, Wilcox ANHGWXNYX0 Lanyard, Crye Precision Head Cap) Helmet Mount Kit for BNVD ANHMNYX15M (Includes: Helmet Mount #3, Adapter #224) Hard Shipping/ Storage Case #101 ANHC000001 BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 8: Operating The System

    (controls are not touched) for 60 minutes. The automatic shut- deactivate the IR. off function preserves battery life should the device be inadvertently activated. • Deactivates the BNVD when turned to OFF position. BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 9: Operating Procedures

    NOTE: If the bright light cut-off feature turns off the device, the power will turn on automatically when the level of light decreases. BNVD ARMASIGHT by FLIR U S E R M A N U A L...
  • Page 10 3.7. Bayonet/Horn Interface Shoe Mount the BNVD to helmet/ headgear assembly. Put on the helmet/ headgear assembly and adjust the position of binoculars regarding your eye. BNVD ARMASIGHT by FLIR U S E R M A N U A L...
  • Page 11 BNVD until it stops. 3.10 USING THE OPTIONAL AFOCAL 3X LENS The binoculars can be used as excellent long-range viewer with an optional 3x afocal lens. BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 12: Maintenance

    BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 13: Warranty

    815 Dubuque Avenue, South San Francisco, CA 94080 Phone: 1-888-959-2259 or (650) 492-7755 5.2 PRODUCT REGISTRATION Fax: 1-888-959-2260 In order to validate the warranty on your product, FLIR Outdoor International Phone/Fax: (650) 492-7755 & Tactical Systems must receive a completed Product Warranty E-mail: OTS-Support@flir.com Registration Card for each unit, or the customer can complete www.flir.com/ots...

  • Page 14: Specifications

    PACKAGE INCLUDES Night Vision Binoculars, NVG Interface Shoe (preinstalled), Bayonet/Horn interface Shoe, Demist Shield (2), Sacrificial Window (2), Battery, Lens Cloth, Quick Start Guide, Soft Carrying Case BNVD ARMASIGHT by FLIR U S E R M A N U A L...

  • Page 15: Spare Parts

    BNVD40DS Sacrificial Window for BNVD-51 BNVD51SW Sacrificial Window for BNVD-40 BNVD40SW Bayonet/Horn Interface Shoe BNVDBHIS Lens Cloth BNVDLNCL Soft Carrying Case BNVDSCC Quick Start Guide BNVDQSG BNVD ARMASIGHT by FLIR U S E R M A N U A L...
  • Page 16 Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited. Imagery for illustration purposes only. Specifications are subject to change without notice. ©2018 FLIR Systems, Inc. All rights reserved. Rev.1 - 12/12/2017...
