SCOUT
III
FLIR
®
Thermal Monocular
U S E R M A N U A L
FLIR-DIRECT
.com
info@FLIR-Direct.com
1.888.610.7664

Advertisement

loading
Need help?

Need help?

Do you have a question about the scout III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FLIR scout III

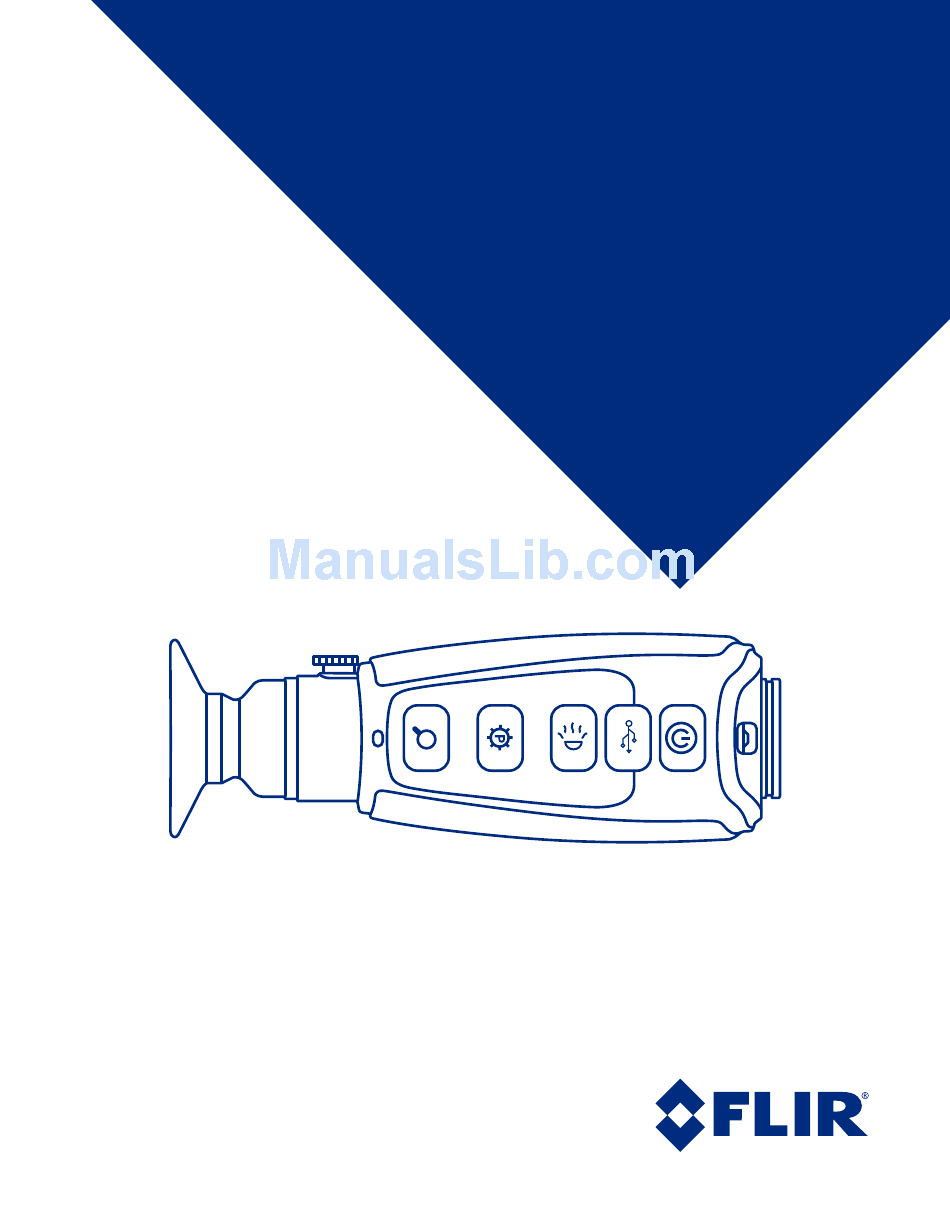

  • Page 1 SCOUT FLIR ® Thermal Monocular U S E R M A N U A L FLIR-DIRECT .com info@FLIR-Direct.com 1.888.610.7664...
  • Page 2 © 2016 FLIR Systems, Inc. All rights reserved worldwide. No parts of Note 1: This equipment has been tested and found to comply with the this manual, in whole or in part, may be copied, photocopied, translated, limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
  • Page 3 CONTENT Page Introduction Getting Started Operating the System Symbology Maintenance Specifications FLIR-DIRECT SCOUT FLIR ® - Rev 1 U S E R M A N U A L .com info@FLIR-Direct.com 1.888.610.7664...
  • Page 4: Introduction

    I can tell it is an Elk. • Battery charging via USB Cable • USB/Video Adapter Cable for video out – Scout III 640 & 320 only. • Rechargeable Internal Li-Ion battery – Provides up to 5 hours of camera operation on a single charge...
  • Page 5: Getting Started

    SECTION 2. GETTING STARTED 2.1 UNPACKING AND INSPECTING The FLIR SCOUT III Series monocular is available with the features, options, and accessories described in this manual. Refer to the packing list enclosed with your product to determine the actual contents of your product package.
  • Page 6 2.4 BATTERY To assure proper charging, SCOUT III Series monoculars should be Your Scout III Series monocular is equipped with a sophisticated power turned OFF throughout the charging cycle. Charging MUST only be system that uses a rechargeable internal Li-Ion battery.
  • Page 7: Operating The System

    3.1.3 COLOR PALETTES Use this button to toggle between the available color palettes. Please see the following images for examples of SCOUT III’s color palettes. WHITE HOT Most commonly used palette. Hot objects appear white. Good for scenes with either high or low contrast.
  • Page 8 The hottest things in the image are colored with a gradient color of The hottest 10% of things in the image are colored and everything else yellow’s and oranges and everything else is greyscale. is greyscale. FLIR-DIRECT SCOUT FLIR ®...
  • Page 9 CABLE (Scout 640 and 320 models) Auto Power Off is a feature of the SCOUT III Series monocular that helps to guard against draining the battery prematurely by inadvertently leaving To obtain analog video out, insert the adapter cable into the the camera on.
  • Page 10 SECTION 4. SYMBOLOGY The SCOUT III user interface has a clear and simple on-screen symbology that allows the user to easily navigate through the settings, and optimize the image quality based on certain variables. From the The brightness indicator zoom function to palette choice the symbology on-screen matches the...
  • Page 11: Warranty Information

    SECTION 5. MAINTENANCE 5.1 SOFTWARE UPDATE 5.4 WARRANTY INFORMATION Software updates for your FLIR SCOUT III can be found at Get detailed warranty information on your SCOUT III by visiting: www. www.flir.com/hunting-outdoor/ under the “Resources” tab. flir.com/scout/warranty 5.2 BATTERY SERVICE AND REPLACEMENT 5.5 CAUTIONS...
  • Page 12 Focal Length 13 mm Fixed Focus 19mm Fixed Focus 35mm Fixed Focus Start up < 1.5 seconds Image Processing FLIR Proprietary Digital Detail Enhancement™ USER INTERFACE Zoom Button Freeze Frame 2X Zoom 2X, 4X Zoom Video Detection Palettes User Selectable: Black Hot, White Hot, InstAlert™ and Graded Fire...
