ASSEMBLY INSTRUCTIONS
for convertible cri b

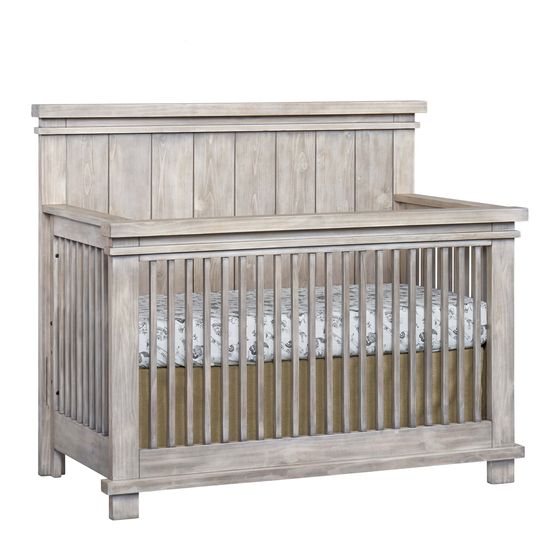

HAMPTON 4 IN 1 CONVERTIBLE CRIB
Model #43011
GUARDRAIL and FULL BED CONVERSION KIT sold separately.
Please contact retailer.
THIS PRODUCT CONFORMS TO THE APPLICABLE SECTION OF PUBLIC LAW 110-314
AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217
(WHEN HAMPTON GUARDRAIL IS USED).
30-43011-V-01
1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SOHO BABY 43011
Summary of Contents for SOHO BABY 43011

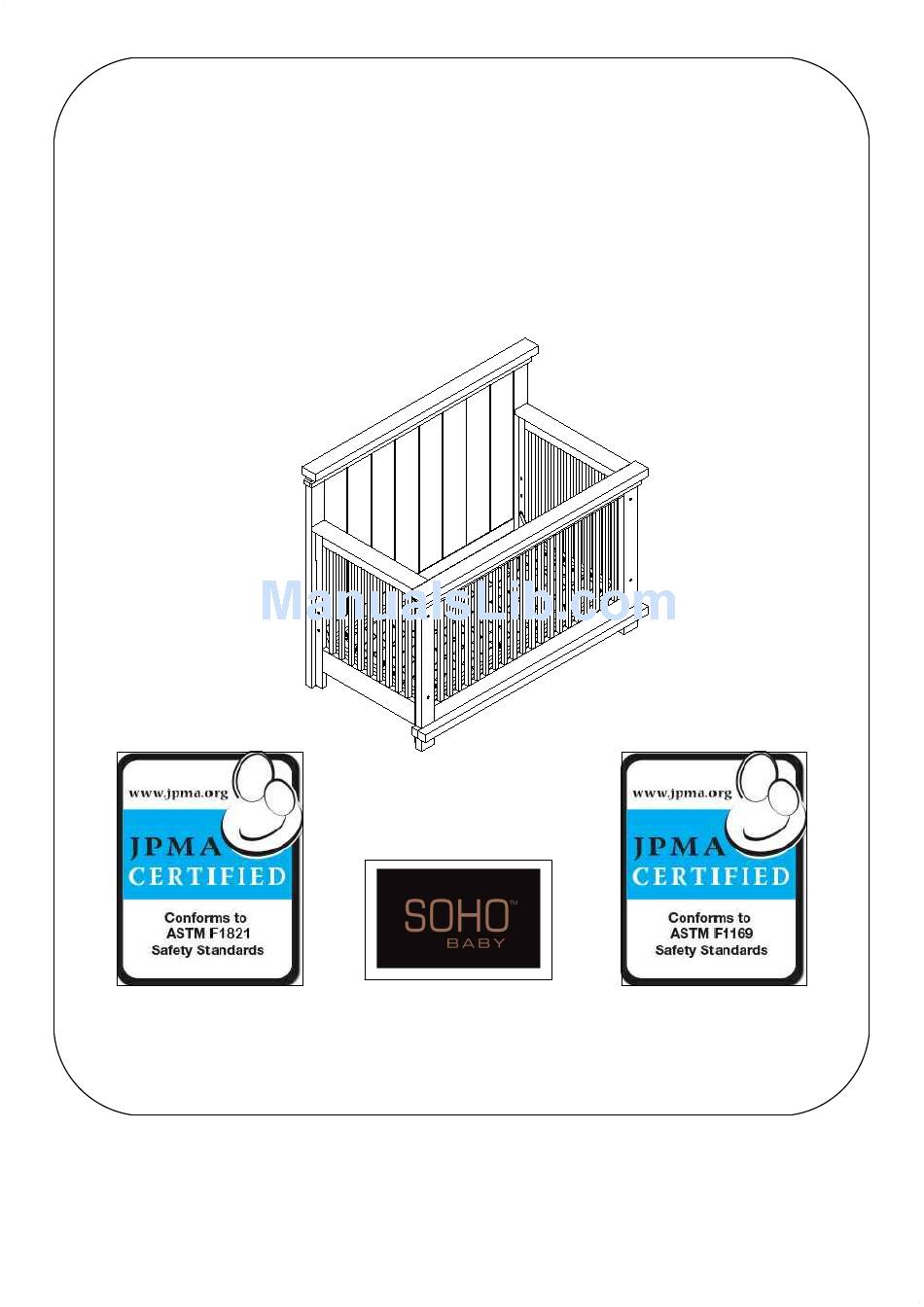

- Page 1 ASSEMBLY INSTRUCTIONS for convertible cri b HAMPTON 4 IN 1 CONVERTIBLE CRIB Model #43011 GUARDRAIL and FULL BED CONVERSION KIT sold separately. Please contact retailer. THIS PRODUCT CONFORMS TO THE APPLICABLE SECTION OF PUBLIC LAW 110-314 AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217 (WHEN HAMPTON GUARDRAIL IS USED).
-
Page 2: Tools Required
(N) Allen key (2 pcs) (length may vary) (K) Allenbolt 1"(25mm) (4 pcs) Do not fully tighten all bolts until all parts are in place. (please add an extra 1/2 revolution to the bolts when using spring washer after tightening) 30-43011-V-01 2 of 5... - Page 3 - Insert Barrel nut (M) into holes in Stabilizer Bar. - Connect Stabilizer Bar to the Sideboard using (4 pcs) Allenbolt 2 3/4"(70 mm) (G), Spring Washer (W) . - Tighten all Bolts with Allen key (N). 30-43011-V-01 3 of 5...
- Page 4 Lowest position - Attach Mattress Spring (E) to Side Board as shown in FIG.2. - Secure with Allenkey (N). - See FIG.3. for height adjustment. - Make sure the Mattress Spring (E) is leveled after assembly. 30-43011-V-01 4 of 5...
- Page 5 W. Spring washer (4 pcs) - Insert Allenbolt 2" (50mm) (H), Spring Washer (W) through the holes in Sideboard into the threaded holes in Foot board (B). - Tighten all Bolts, Nuts with Allen key (N). Assembly Complete, Thank You! 30-43011-V-01 5 of 5...
- Page 6 “CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27 1/4 INCHES (69 CM) BY 51 5/8 INCHES (131 CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15 CM). THE DIMENSIONS OF THE MATTRESS SHALL BE TAKEN FROM SEAM TO SEAM OR EDGE TO EDGE WHERE APPROPRIATE.”...
- Page 7 ! WARNING! • IF REFINISHING, USE A NON-TOXIC FINISH SPECIFIED FOR CHILDREN'S PRODUCTS. • FOLLOW WARNINGS ON ALL PRODUCTS IN A CRIB. UPON COMPLETION OF ASSEMBLY, BE SURE ALL SCREWS, BOLTS AND FASTENING DEVICES HAVE BEEN SECURELY TIGHTENED. A FREQUENT CHECK SHOULD BE MADE. •...
- Page 8 ASSEMBLY INSTRUCTIONS for toddler bed HAMPTON 4 IN 1 CONVERTIBLE CRIB Model #43011 GUARDRAIL and FULL BED CONVERSION KIT sold separately. Please contact retailer. 30-43011-V-01...
- Page 9 STEP 1 "UNINSTALL FOOTBOARD " THIS STEP REQUIRES: Allen key (1 pc) FIG. 1. - Remove the Footboard by unscrewing (4 pcs) Allenbolts as shown in FIG. 1. 30-43011-V-01...
- Page 10 - Move Mattress Spring to the lowest position as shown in FIG.2. - Attach the Allenbolt 1"(25mm) (K), Spring Washer (W) and Nut 3/4"(20 mm) (L) on the lowest hole of Sideboard. - Final position as shown in FIG.3. 30-43011-V-01...
- Page 11 ! “CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27 1/4 INCHES (69 CM) BY 51 5/8 INCHES (131 CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15 CM). THE DIMENSIONS OF THE MATTRESS SHALL BE TAKEN FROM SEAM TO SEAM OR EDGE TO EDGE WHERE APPROPRIATE.”...
- Page 12 WARNING ENTRAPMENT/STRANGULATION HAZARD • INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT AND STRANGULATION. • FAILURE TO FOLLOW THESE WARNINGS AND THE ASSEMBLY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • NEVER USE BED WITH CHILDREN UNDER 15 MONTHS. •...
