Summary of Contents for Senco SC7C

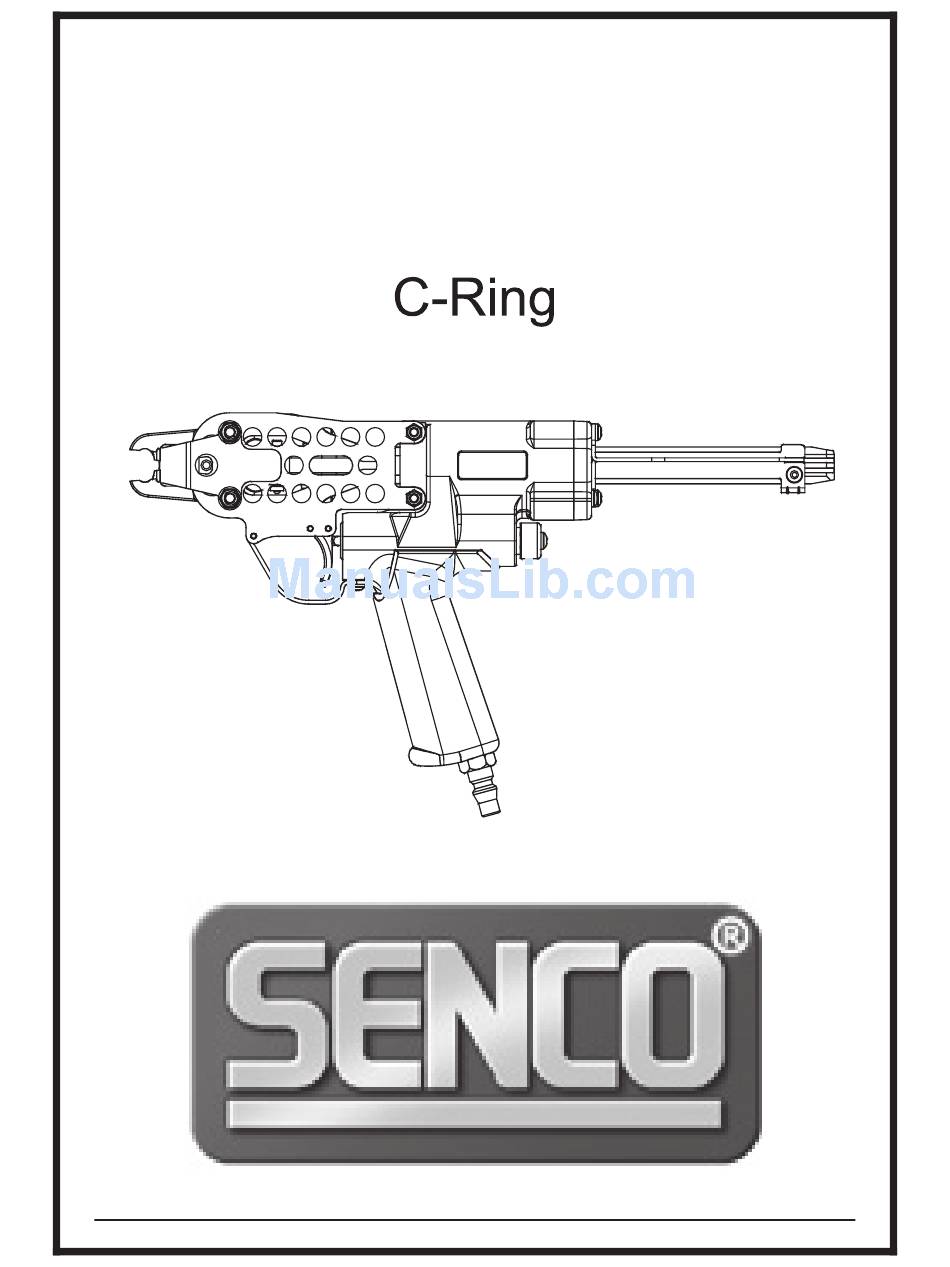

- Page 1 OPERATING INSTRUCTIONS AND PARTS MANUAL MODEL SC7C CAREFULLY READ THIS MANUAL BEFORE OPERATING TOOL...
-
Page 2: Compressed Air
2.Too many shims(ring passes under shoe without 2.Adjust---see operator manual raising shoe, ring out of control) 3.Adjust---see Operator manual MODEL OF TOOL ..............SC7C 3.Too few shims(ring must be forced under shoe which 4.Replace shoe bottoms out” and may deflect magazine itself) 5.Replace magazine... - Page 3 ¦ ¡ ¥ ¦ § © § ¢ ¥ © £ § ¡ ¡ ¢ £ £ © ¨ ¥ § £ ¦ § ¡ £ © ¥ The source of air leakage is most commonly the throttle assembly or the liner housing seal. The procedure will assist the repairman is solving this problem quickly The throttle is basically a pair of two-way valve that divert air in front of, or behind the piston 1.
- Page 4 £ © ¨ ¥ § £ ¦ § ¡ £ ¢ § ¦ © § ¡ © © § ¥ © ¦ ¥ © § ¡ ¥ Disconnect the air supply from the tool before lubricating. 14. Disconnect the tool from air supply before cleaning jams, servicing, adjusting, and during non-operation.
- Page 5 SC7CN10 (WS/N1-10) Part_No Description Spec Q'ty Part_No Description Spec Q'ty Part_No Description Spec Q'ty APAA3401 PUSHER SPRING APWS0301 TRIGGER VALVE SEAT APWS2001 DRIVER APCC1901 BUSHING APWS0301W DRIVER ASSY. APWS2101 APCC2601 APWS0401 EXHAUST CAP APWS2201 APJA0901 APWS0501 O-RING SEAT APWS2301 SIDE PLATE APKD0406 SCREW #4×6 TP...
