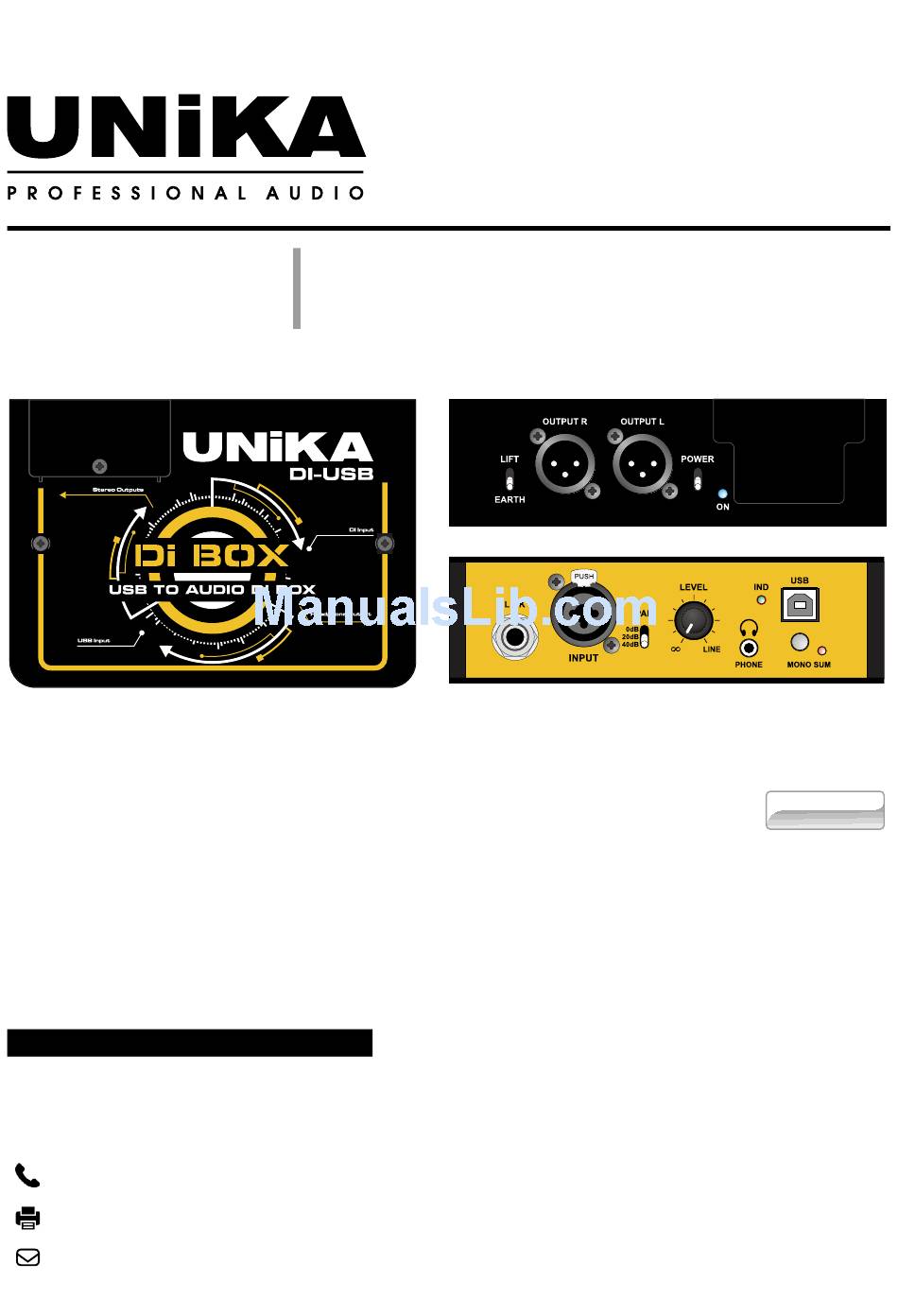

Box Series
Made in Taiwan
Unika Electronic Co., Ltd.
w w w . u n i k a . c o m . t w
6F, No.168, Xin-Hu 2nd Rd.
Nei-Hu District, Taipei City. 11494.
Taiwan, Republic of China.
+886 2 27933017
+886 2 27928264
unika@unika.com.tw
USER GUIDE
DI-USB
06 Instrument direct input & Parallel
03 Audio Connection
05 USB connection
06 Eliminating hum and buzz
07 Using the headphone output
Index
01 Overview
02 Features
Link connection
08 Specifications
Advertisement
Table of Contents
Related Manuals for Unika DI-USB
Summary of Contents for Unika DI-USB
- Page 1 Index 01 Overview 02 Features 03 Audio Connection Unika Electronic Co., Ltd. 05 USB connection w w w . u n i k a . c o m . t w 06 Instrument direct input & Parallel 6F, No.168, Xin-Hu 2nd Rd.
-
Page 2: Overview
PA as faithfully as possible. We recommend that you read carefully through the manual in order to famil- iarize yourself with the DI-USB Box features so you can get the most out of it. unika@unika.com.tw ... -
Page 3: Features
PA system, mixing console or even a powered speaker! Made for plug and play simplicity, the DI-USB will automatically be listed as an available sound card in the audio settings in all popular operating systems , including Windows 7/8, Windows 10 and Mac OSX. -
Page 4: Audio Connection
UNiKA DI-USB User Guide AUDIO CONNECTION DI Input Stereo Outputs Link Output Headphone Output USB Input Audio connection of the UNIKA DI-USB Box ① ② ③ ④ ⑤⑥ ⑦ ⑧ ⑨ ⑫ ⑬ ⑩ ⑪... - Page 5 port delivers the digital audio ④ LEVEL Control: signal and power to the Used to set the overall output DI-USB Box which automatically level also the headphone output recognizes the sample rate and level changes simultaneously.
-
Page 6: Usb Connection
UNiKA DI-USB User Guide The DI-USB is designed to be plug and play for easy use. The following describes basic set-up procedures and connections. USB Connection Before connecting, make sure all of the audio levels are turned down or system is turned off; this helps to prevent clicks and pops from damaging more sensitive equipment when connecting and powering up. -
Page 7: Instrument Direct Input & Parallel
(pad set to -20dB) or from the amplifier power output (speaker output, pad set to -40dB). Eliminating hum and buzz The Unika DI-USB Box is equipped with isolation transformers to eliminate hum and buzz caused by stray DC voltage and ground loops. Computers, optical projectors and other consumer equipment can be... -
Page 8: Using The Headphone Output
PA system. Adjusting the level control on the DI-USB will affect both the XLR and the headphone output. The 3.5mm (1/8") output is designed for both ear buds and standard TRS stereo headphones where tip-left, ring-right and the sleeve is ground. - Page 9 UNiKA DI-USB User Guide HOW TO REPLACE DI-BOX BATTERY Battery installation: ① Put the battery into the slot. ② Verify the battery polarity is correct and snap it in. ③ Press it down into the battery holder. Battery removal: Press and hold the battery on its bottom end.
-
Page 10: Specifications
UNiKA DI-USB User Guide SPECIFICATIONS (Specifications are subject to change without notice.) USB compliance USB 2.0 full speed, type B connector Bit depth 24bit / 16bit Sampling rate 44.1KHz / 48KHz auto sensing Sound file compatibility WDM, MME, Core-Audio, ASIO and... - Page 11 UNiKA DI-USB User Guide SPECIFICATIONS (Specifications are subject to change without notice.) Output impedance 200Ω nominal, Transformer Balanced. Analog output Balanced transformer isolated ( XLR-M, Pin-1 Ground, Pin-2 Hot, Pin-3 Cold ) Headphone output 3.5mm TRS, (Tip-Left Ch. Ring-Right Ch., Sleeve-Ground)
