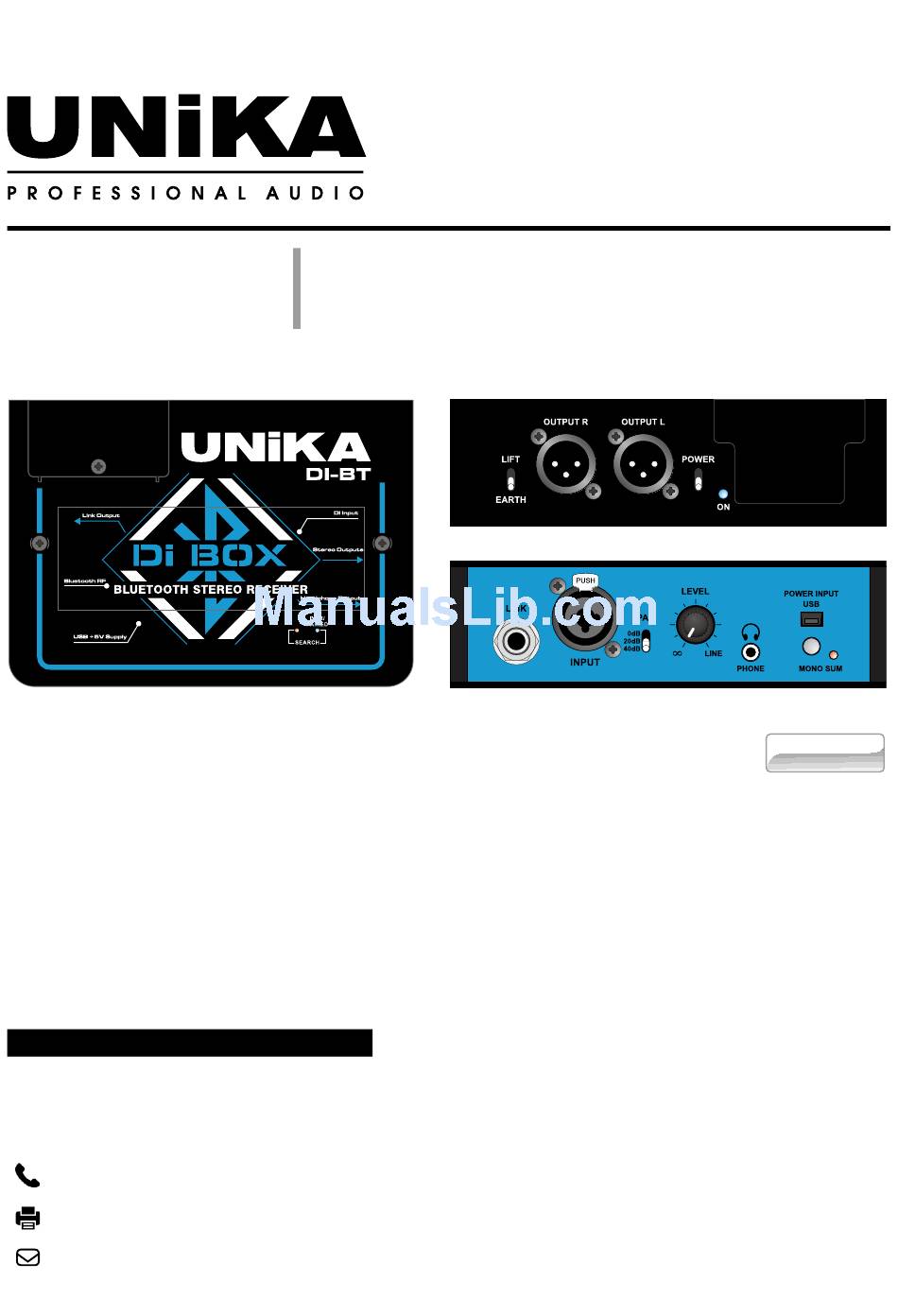

Box Series
Made in Taiwan
Unika Electronic Co., Ltd.
w w w . u n i k a . c o m . t w
6F, No.168, Xin-Hu 2nd Rd.
Nei-Hu District, Taipei City. 11494.
Taiwan, Republic of China.
+886 2 27933017
+886 2 27928264
unika@unika.com.tw
USER GUIDE
DI-BT
0 5 I n s t r u m e n t D i r e c t I n p u t &
06 Using the headphone output
03 Audio Connection
05 USB Mini-B Connection
Parallel Link Connection
06 Eliminating hum and buzz
07 Bluetooth Pairing
08 Going Out of Range
09 Testing and Using
09 Specifications
Index
01 Overview
02 Features
Advertisement
Table of Contents
Related Manuals for Unika DI-BT
Summary of Contents for Unika DI-BT
- Page 1 05 USB Mini-B Connection 0 5 I n s t r u m e n t D i r e c t I n p u t & Unika Electronic Co., Ltd. Parallel Link Connection w w w . u n i k a . c o m . t w 06 Eliminating hum and buzz 6F, No.168, Xin-Hu 2nd Rd.
-
Page 2: Overview
The signal is then balanced to drive long cables without noise. The DI-BT Box is easy to setup and use. Once it is powered up and the ON switch is engaged, it will automatically appear as an available device on your Bluetooth enabled computer, tablet or smart phone. -
Page 3: Features
• 2 channel XLR Balanced Low-Z output with isolation transformer. The DI-BT Box is a high-resolution stereo direct box designed to wirelessly pair with Bluetooth® enabled devices, once it is powered up, it will automatically be listed as an available device on your Bluetooth enabled computer, tablet or smart phone. -
Page 4: Audio Connection
UNiKA DI-BT User Guide AUDIO CONNECTION Bluetooth RF Stereo Outputs DI Input Link Output Headphone Output USB Input Audio connection of the DI-BT Box ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪⑫ ⑬ ⑭... -
Page 5: User Guide
Works with ear-buds and ⑬ Reset switch: standard headphones. Turn the RESET switch to the ON position and the DI-BT Box ⑥ USB-B Mini Port: will be available to pair with Connects from the PC or Mac ... -
Page 6: Usb Mini-B Connection
User Guide USB Mini-B Connection The DI-BT Box uses a USB Mini-B connector and cable for its power requirements. Use the ‘Mini-B to TYPE A’ USB cable and connect to a computer, USB hub or the USB wall charger. You may also use any standard USB wall charger that is included with most phones and tablets, as the DI- BT Box will only draw a small amount of current. -
Page 7: Eliminating Hum And Buzz
PA system. Adjusting the level control on the DI-BT Box will affect both the XLR and the headphone output. -
Page 8: Bluetooth Pairing
User Guide Bluetooth Pairing Once the DI-BT Box is power ON, 2 LEDs on the top of the unit will illuminate, at this point you can turn the RESET switch to the ON position and the DI-BT Box will be available to pair with Bluetooth devices, check the available devic- es on your Bluetooth enabled playback source;... -
Page 9: Testing And Using
(if applicable) at 80% or higher for optimal signal to noise. A higher volume from the source will allow the DI-BT Box to operate at the lowest noise floor. Keep in mind that various media files will playback at different volume levels depending on your software and how the sound file was recorded. -
Page 10: Specifications
UNiKA DI-BT User Guide HOW TO REPLACE DI-BOX BATTERY Battery installation: ① Put the battery into the slot. ② Verify the battery polarity is correct and snap it in. ③ Press it down into the battery holder. Battery removal: Press and hold the battery on its bottom end. - Page 11 UNiKA DI-BT User Guide Compatibility All Bluetooth A2DP compliant devices Device Operating Range 10m (line of sight) Frequency response 20Hz to 20KHz , +1/-1 dB Dynamic range >90dB Noise <-90dBu, unweighted 20Hz to 20KHz. Maximum output +9dBu. (source file dependency) Total harmonic distortion Less than 0.008% at 1KHz, 0dBu output...
