- Page 1 Version: V1.00.000 Revised date: 12-20-2017...
- Page 2 TOPDON is not responsible for any use of this information as applied to other units. Neither TOPDON nor its affiliates shall be liable to the purchaser of this unit or third parties for damages, losses, costs, or expenses incurred by purchaser or...
- Page 3 TOPDON ARTIDIAG100 English User’s Manual Safety Precautions Before using this test equipment, please read the following safety information carefully. Always perform automotive testing in a safe environment. Wear an ANSI-approved eye shield when testing or repairing vehicles. The vehicle shall be tested in a well-ventilated work area, as engines produce various poisonous compounds (hydrocarbon, carbon monoxide, nitrogen oxides, etc.)
-
Page 4: Table Of Contents
1 Introduction ............................1 1.1 Product Profile ........................1 1.2 Features ........................... 1 1.3 Technical Specifications ..................... 2 2 Knowledge of ARTIDIAG100 ......................3 2.1 ARTIDIAG100 Handset ....................... 4 2.2 ARTIDIAG100 Accessory Checklists ................5 3 Preparations ............................6 3.1 Charging ARTIDIAG100 ..................... 6 3.2 On using your battery ...................... - Page 5 TOPDON ARTIDIAG100 English User’s Manual 3.10.3 Android input method ................... 10 4 Wi-Fi Setting ............................12 4.1.1 Connect to a Wi-Fi network ................12 4.1.2 Disconnect from a Wi-Fi network ..............12 5 How to diagnose ..........................13 5.1 Connections ......................... 13 5.1.1 Preparation ......................
- Page 6 TOPDON ARTIDIAG100 English User’s Manual 5.9.4 Diagnostic Feedback ..................27 5.9.5 Network Test ......................27 5.9.6 Diagnostic Software Clear ................27 5.9.7 Clear Data ......................27 5.9.8 About ........................27 6 Others ..............................28 6.1 Email ............................28 6.1.1 Configure an email account ................28 6.1.2 Send an email ......................
-
Page 7: Introduction
Moreover, ARTIDIAG100 also features the following bi-directional “special tests”: EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing. In addition to amazing & powerful diagnosing function, ARTIDIAG100 also features oil lamp reset and other reset functions. 1.2 Features 1. -
Page 8: Technical Specifications
TOPDON ARTIDIAG100 English User’s Manual 1.3 Technical Specifications Item Description Operating system Android 4.2 Display 5 inch touch screen with 800 x 480 pixels Wi-Fi (802.11 b/g/n) Connectivity USB: 2.0 Microphone Audio Input/Output Speakers 0 ℃ ~ 40 ℃ (32 ~104 ℉ ) Operating Temperature -20 ℃... -
Page 9: Knowledge Of Artidiag100
There are two main components to the ARTIDIAG100 system: ARTIDIAG100 Handset -- the central system (For details, please refer to Chapter 2.1.) Fig. 2-1 Diagnostic Cable -- the cable used to connect ARTIDIAG100 to vehicle’s DLC for accessing vehicle data (For full configuration, optional) Fig. 2-2... -
Page 10: Artidiag100 Handset

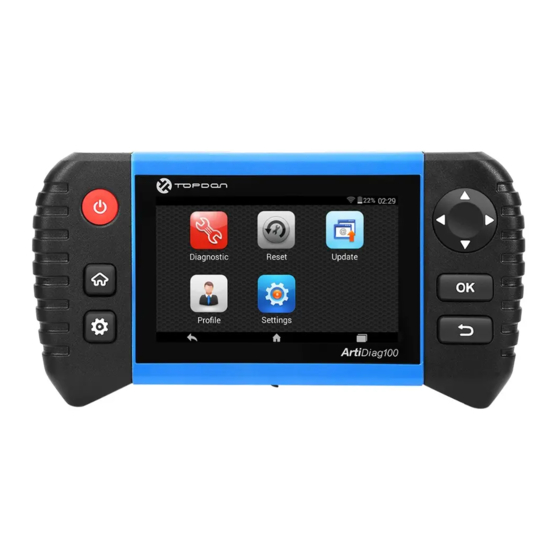

ARTIDIAG100 English User’s Manual 2.1 ARTIDIAG100 Handset Fig. 2-3 ARTIDIAG100 Handset (front & rear view) Table 2-1 formulates interfaces and indicators of ARTIDIAG100 handset: Name & Descriptions DB15 Connector – To connect the diagnostic cable. Screen Lock/Power Button – To turn the display tablet on/off with long press, or lock the screen with short press. -
Page 11: Artidiag100 Accessory Checklists
Back Button – To go back to the previous screen. Microphone 2.2 ARTIDIAG100 Accessory Checklists Common accessories for each ARTIDIAG100 are same, but for different destinations, the accessories of ARTIDIAG100 (such as diagnostic software, testing connectors) may vary. Please consult from the local agency or check the package list supplied with ARTIDIAG100 together. -
Page 12: Preparations
Note: If it is the first time you have used this tool or the tool remains idle for a long period of time, ARTIDIAG100 could fail to turn on. Please charge the handset for a minimum of 5 minutes and attempt to turn on again. -
Page 13: Lock & Unlock The Screen
3.5.1 Lock the screen When ARTIDIAG100 is ON, press POWER key once to lock the screen; The system will lock the screen automatically after ARTIDIAG100 remains idle over the preset standby time. -
Page 14: Screen Layout
TOPDON ARTIDIAG100 English User’s Manual 3.6 Screen layout Fig. 3-1 3.7 Status bar For some common indicators, please see the following table. Icons Definitions Icons Definitions Positioning GPS Charging Battery is fully charged Low battery New mail Preparing memory card... -
Page 15: Customize Your Desktop
TOPDON ARTIDIAG100 English User’s Manual 3.9 Customize your desktop 3.9.1 Move items on the desktop 1. Tap and hold the item to be moved until it is shaken. 2. Drag and drop it to the target location. Note: Drag the icon to the margin of the screen and keep it still, the system will switch to other extension desktop, place it to the desired location. -
Page 16: Adjust The Volume
Note: Alternatively, you can also press the volume keys to control the volume of the current application. 3.10 Input Method 3.10.1 Activate/hide on-screen keyboard By default, Android keyboard is available on ARTIDIAG100. To input text, tap the input box and the on-screen keyboard will be activated automatically. After inputting, tap to hide the keyboard. - Page 17 TOPDON ARTIDIAG100 English User’s Manual To toggle between upper case and lower case. To switch to numeric & symbol keyboard. To enter a space. > To delete the character before the cursor. > Long-press this key to delete all characters before the cursor.
-
Page 18: Wi-Fi Setting
Note: If you don’t need Wi-Fi for a while, you can turn it off to conserve battery life. The ARTIDIAG100 has built-in Wi-Fi that you can use to get online. Once you’re online, you can register your handset, browse the Internet, get apps and send email on your network. -
Page 19: How To Diagnose
Throttle should be closed at its close position. Select testing connectors If ARTIDIAG100 is testing vehicles equipped with universal OBD II 16 PIN diagnostic socket, please use the included diagnostic connector. (For vehicles with non-OBD II 16 PIN diagnostic socket, a non-16 PIN connector is required.) 5.1.2 DLC Location... -
Page 20: Vehicle Connection
DLC socket. Plug the other end of diagnostic main cable into the DB15 connector of ARTIDIAG100, and then tighten the captive screws. For non-OBDII vehicle, proceed as follows: Locate vehicle’s DLC socket. -
Page 21: Initial Setup
Do the following steps to finish the registration: 1. Tap the ARTIDIAG100 icon on the HOME screen to enter the main function menu of diagnosis software, as indicated in Fig. 5-3. - Page 22 TOPDON ARTIDIAG100 English User’s Manual Fig. 5-3 2. Tap “Log In” to enter the login interface: Fig. 5-4 3. Input the necessary information and then tap “Register” to finish your registration. Once it is successfully signed up, it will automatically switch to the main menu screen.
-
Page 23: Diagnostic Software Layout
Fig. 5-5 5.3.3 Function menu Fig. 5-6 Name Description Diagnostic Configures ARTIDIAG100 to operate as a diagnostic tool. Reset Enables you to perform oil / service lamp reset on your vehicle. Update To update your vehicle software and application package. -
Page 24: Update Diagnostic Software
Allows you to make the system settings to your preference. 5.4 Update Diagnostic Software Only after your ARTIDIAG100 is successfully activated you can perform the software update. Since our product is always improved and optimized, you are advised to check for updates frequently. - Page 25 TOPDON ARTIDIAG100 English User’s Manual Fig. 5-8 Take Demo as an example to demonstrate how to diagnose a vehicle. 1. Tap the “Demo” logo, the system will prompt you to select the diagnostic software version. See Fig. 5-9. Fig. 5-9 On-screen Buttons: New Session: Tap it to return to the home screen.
- Page 26 TOPDON ARTIDIAG100 English User’s Manual Fig. 5-10 4. Tap “Demo” to enter system selection interface, indicated as Fig. 5-11. Fig. 5-11 5. Tap “Engine”, the system will jump to the function menu. See Fig. 5-12. Fig. 5-12...
-
Page 27: Read Dtc
TOPDON ARTIDIAG100 English User’s Manual 5.5.1 Read DTC This function displays the detailed information of DTC records retrieved from the vehicle’s control system. Tap “Read DTC” from the function menu, the screen will display the diagnostic result. Fig. 5-13 On-screen Buttons: New Session: Tap it to return to the home screen. -
Page 28: Read Data Stream
TOPDON ARTIDIAG100 English User’s Manual Tap “Clear fault memory” from the function menu, the system will automatically delete the currently existing trouble code. Note: The trouble code will not disappear until the trouble was completely cleared. 5.5.3 Read Data Stream This option retrieves and displays live data and parameters from the vehicle’s... - Page 29 TOPDON ARTIDIAG100 English User’s Manual Fig. 5-15 On-screen Buttons: New Session: Tap it to return to the home screen. Graph: After selecting, tap it to view the waveform. There are 3 types of display modes available for data viewing, allowing you to view various types of parameters in the most suitable way.
-
Page 30: Reset
“Profile” menu. For details on playback operations, please refer to Chapter 5.8.2 “My Report”. Fig. 5-18 To stop recording the data stream, tap the button before the recording progress bar. Help: Tap to view the help information. 5.6 Reset In addition to amazing & powerful diagnosing function, ARTIDIAG100 also... -
Page 31: Update
There are two methods to reset service lamp: reset manually or reset automatically. Auto reset follows the principle of sending command from ARTIDIAG100 to vehicle’s ECU to do resetting. While using manual reset, users just proceed following the on-screen instructions. -
Page 32: Profile
TOPDON ARTIDIAG100 English User’s Manual Fig. 5-20 On-screen Buttons: Graph: After selecting, tap it to view the parameters in waveform graph. Combine: This option is mostly used in graph merge status for data comparison. In this case, different items are marked in different colors. -
Page 33: Help
TOPDON ARTIDIAG100 English User’s Manual 5.8.6 Help FAQ, Quick Start Guide and User Manual are included. 5.8.7 Log Out This option allows you to logout the system. 5.9 Settings It enables you to make some application settings and view software version information etc. -
Page 34: Others
TOPDON ARTIDIAG100 English User’s Manual 6 Others 6.1 Email The function allows you to send and receive email. You can add POP3 or IMAP email account for some common web email service provider. 6.1.1 Configure an email account Note: Before sending or receiving email, you have to set up an email account. In addition, this function required a stable network connection. -
Page 35: Revise An Account Setting
Note: Never change the default settings of the server, otherwise email failure may occur. 6.1.6 Delete an email account Once Email account is removed, ARTIDIAG100 stops receiving the emails from this account, but all messages in it still keeps as it is. 1. On the HOME screen, tap Email. -
Page 36: Download Files
Tap and hold a picture, then choose “Save image” from pop-up menu to download To download a link, tap and hold it, and then choose “Save link”. To protect your ARTIDIAG100 and personal data, please download applications from trusted sources. To configure it, tap Settings > Security, and then deselect the box next to Unknown sources. -
Page 37: Clear History
TOPDON ARTIDIAG100 English User’s Manual 6.2.5 Clear history To prevent your personal information from being exposed much better, you are strongly recommended to clear your browser navigation history. 1. On the HOME screen, tap Browser. 2. Tap > Settings > Privacy & security. -
Page 38: View Installed Applications
4. Tap “Uninstall” and then tap “OK” in the dialog box to start uninstalling. 6.7 Set Date & Time ARTIDIAG100 is preset to use the network-provided date, time zone and time. Note: If Automatic date & time is set as Use network-provided time, date, time and time zone will not be defined. -
Page 39: Faq
6. The data and time of ARTIDIAG100 can not be set. It is because Automatic date & time is set on your ARTIDIAG100. Tap Settings > Date & time, deselect “Automatic date & time” and then set the date and time... - Page 40 TOPDON ARTIDIAG100 English User’s Manual manually. 7. How to distinguish between PIN and password in screen lock? The difference between PIN and password is as follows: > PIN: Generally, it is composed of 4~16 numbers. > Password: It may include: 4~16 numbers, characters and symbols.
- Page 41 The exclusive remedy for any automotive meter found to be defective is repair or replacement, and TOPDON shall not be liable for any consequential or incidental damages.
- Page 42 P. R. China TOPDON website: www.topdon.com Statement: TOPDON reserves the rights to make any change to product designs and specifications without notice. The actual object may differ a little from the descriptions in the manual in physical appearance, color and configuration. We...
