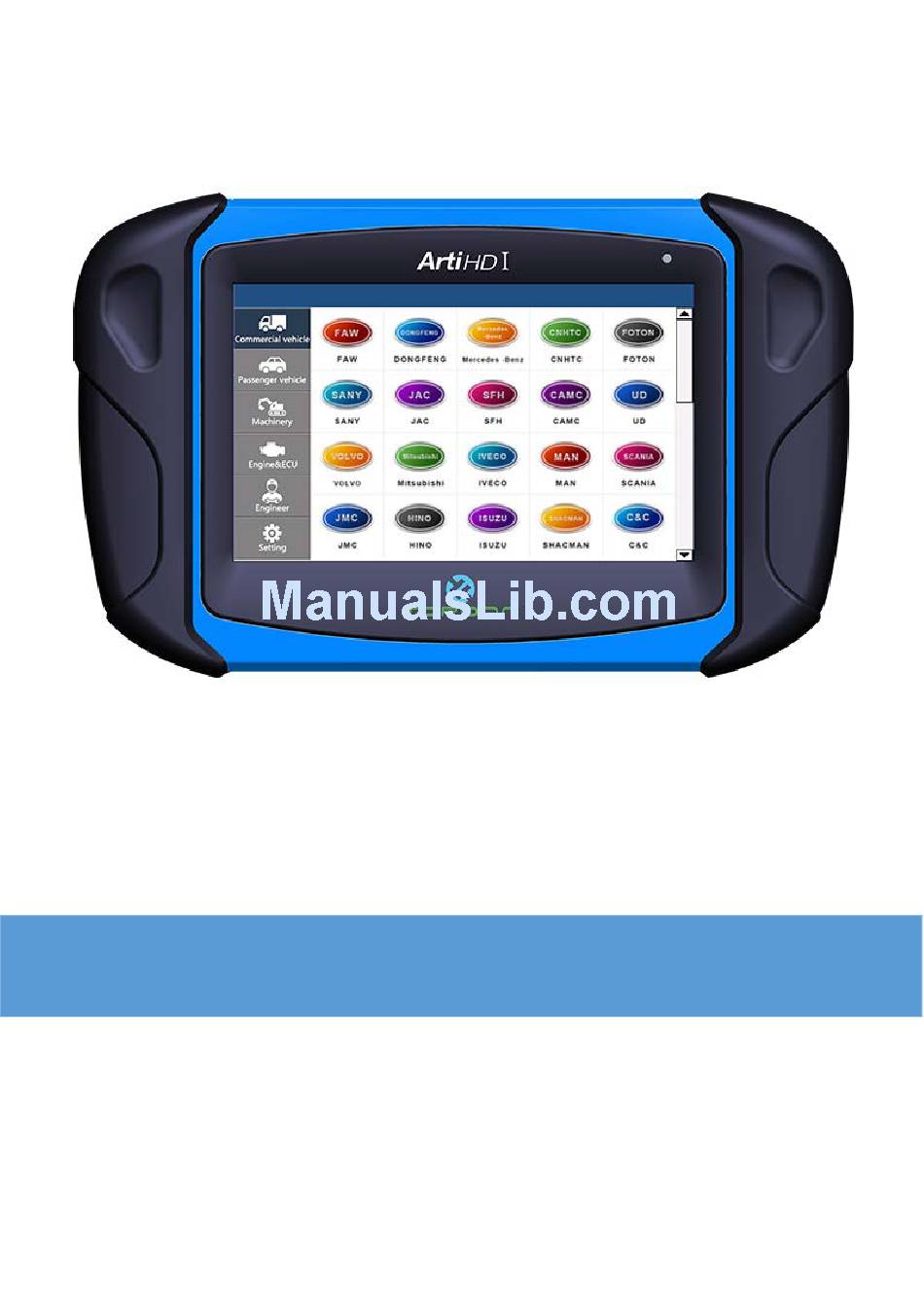

  • Page 1 ArtiHD I Diagnostic Scan Tool User Manual...

  • Page 2: Table Of Contents

    1 Important note ..............................4 1.1 Agreement ............................... 4 2 Safety Precautions ............................5 3 Product Introduction ............................7 3.1 Product description ..........................7 3.2 Product Hardware ..........................7 4 Diagnostics ................................. 9 4.1 Enter the diagnostic system ......................11 4.2 Start Diagnostic ...........................
  • Page 3 8.2 Maintenance ............................20 8.3 Warranty ..............................21...

  • Page 4: Important Note

    If there is any violation, TOPDON will be held legally liable and obliged to enforce the loss of property.

  • Page 5: Safety Precautions

    Product will loss TOPDON responsibility and guarantee due to the use of unauthorized software and hardware which lead to the ArtiHD I change, even in this period uninstall or delete the hardware and software. Product is not allowed to change without authorized, only allow the use of genuine accessories and spare parts for the company's products, otherwise all warranty invalid.
  • Page 6 Shenzhen TOPDON Technology Co.,Ltd. After the device been connected with vehicle, before starting the engine, be sure to pull the parking brake, and put  the speed lever in neutral (manual gearbox), or parking (automatic transmission). Car battery liquid containing sulfuric acid, sulfuric acid on the skin corrosive, the operation should avoid the battery ...

  • Page 7: Product Introduction

    3 Product Introduction 3.1 Product description ArtiHD I is a completely Independent R&D product for Heavy Duty and Commercial vehicles, it is a professional diagnostic scan tool for Automotive Aftermarket. ArtiHD I is fully optimized based on the OEM scanner, which enhances the comprehensive diagnostic capability of the diesel vehicle.
  • Page 8 Shenzhen TOPDON Technology Co.,Ltd. ①Touch Screen：Display the operation buttons, test results and help information. ②Rubber sleeve: easy to hand, protect the product, to prevent loosening and wear. ③ Power Indicator ④SD card port ⑤USB port：Used to connect the printer for printing. diagnostic connectors to connect the car.

  • Page 9: Diagnostics

    Shenzhen TOPDON Technology Co.,Ltd. Notice： When the power is supplied through the diagnostic port, it is not necessary to connect the power supply through  the main power port. When the vehicle diagnosis block itself is not powered, it can be connected to the power source through the power supply port.
  • Page 10 Shenzhen TOPDON Technology Co.,Ltd. 4-0-2 Passenger vehicle 4-0-3 Engine&ECU Equipment through the OBD extension line and special diagnostic connector and vehicle diagnostic seat connection, the device automatically boot and enter the main interface of automotive diagnostics.

  • Page 11: Enter The Diagnostic System

    Shenzhen TOPDON Technology Co.,Ltd. 4-0-4 Home interface （1）Menu display area, including: truck system, bus system, passenger vehicles, engineering machinery, expert and system settings. （2）Model brand selection area: each model can be detected for all models brand. 4.1 Enter the diagnostic system You can select the corresponding vehicle type by selecting the display area on the left side of the main interface, and then select the brand, system and system function in the right model selection area to enter the diagnosis operation.

  • Page 12: Start Diagnostic

    Shenzhen TOPDON Technology Co.,Ltd. 4-1-1System selection interface 4.2 Start Diagnostic After entering the system, the functions that can be implemented include： Identification  Read Fault code  Erase Fault code  Actual Values  Actuators  Advance Functions：Adjustment/Settings、Function Test、Special function, calibration etc.

  • Page 13: Identification

    Shenzhen TOPDON Technology Co.,Ltd. 4-2-1System function interface 4.3 Identification Identification is the vehicle and system information in ECU.When the vehicle control unit need to be replaced, it is necessary to read the original control unit information and record it as a reference for purchasing a new control unit.

  • Page 14: Read Fault Code

    Shenzhen TOPDON Technology Co.,Ltd. 4.4 Read Fault code Read the fault code function can read ECU fault code to help maintenance personnel quickly found the cause of vehicle failure. 4-4-1 Read Fault code 4.5 Erase Fault code Clear the fault code stored in the ECU.

  • Page 15: Actual Values

    Shenzhen TOPDON Technology Co.,Ltd. Note: General models, please follow the regular order, first read the fault code, and record (or print) and then clear the fault code, test, read the fault code again to verify, repair the vehicle, clear the fault code, test again to confirm the fault code The current hard fault code can not be cleared, if the oxygen sensor, knock sensor, mixed gas correction, cylinder fire and the like type of technical code can be removed immediately, but in a certain period will appear.

  • Page 16: Advanced Function

    Shenzhen TOPDON Technology Co.,Ltd. 4-7-1 Actuator list 4-7-2 Actuator test 4.8 Advanced Function Advance Functions：Adjustment/Settings、Function Test、Special function, calibration.
  • Page 17 Shenzhen TOPDON Technology Co.,Ltd. For example: diesel fuel injector code, idle speed adjustment, broken cylinder test, calibration and so on. 4-8-1 Advanced Function-Adjustment/Setting 4-8-2 Function test list...

  • Page 18: Software Upgrade

    4-8-3 Special Function-Coding interface 5Software upgrade ArtiHD I usePC software to upgrade, log in the official website (www.topdon.com) download and install the ArtiHD I intelligent diagnostic device upgrade client software, the device SD card through the card reader plug in the computer USB interface to complete the device software upgrade.

  • Page 19: Accessories

    Shenzhen TOPDON Technology Co.,Ltd. ArtiHD I device 0201000001 ArtiHD I carry case 0301000008 OBD16PINCircular adaptor 0301000009 CUMMINS-9 0301000010 IVECO-38 0301000011 BENZ-14 0301000012 KOMATSU-12 0401000015 VOLVO-14 0401000016 VOLVO-8 0301000017 CAT-9 0301000020 Multi-function jumper adaptor 0301000022 ArtiHD I user manual 0301000023 6.2 Accessories Accessories package：0201000002...

  • Page 20: Maintenance And Warranty

    Shenzhen TOPDON Technology Co.,Ltd. 8 Maintenance and Warranty 8.1 Clean Do not use a cleaning agent with a corrosive function or any rough cloth to clean the ArtiHD I device, only with a soft cloth and a mild detergent. 8.2 Maintenance Product should be stored in a flat, dry, the temperature suitable for less dust.
  • Page 21 Shenzhen TOPDON Technology Co.,Ltd. 8.3 Warranty This warranty applies only to users and distributors who purchase products through TOPDON Formal channels of cooperation。 Product acceptance 1. When purchasing the product, be sure to open the package check. 2. Please check the quantity carefully according to the packing list. If there is any shortage, error, damage and other unpredictable abnormality, please keep all the documents and notify us immediately.
  • Page 22 Shenzhen TOPDON Technology Co.,Ltd. Address：1 Room 701,7/F,G Building, Huafeng Bao’an Zhigu Innovation Park, Yintian 4th Road, Xixiang Street, Bao’an District, Shenzhen City ,Guangdong, China Post code：518102 Website：www.topdon.com...
