Summary of Contents for SOUNDMASTER DAB950

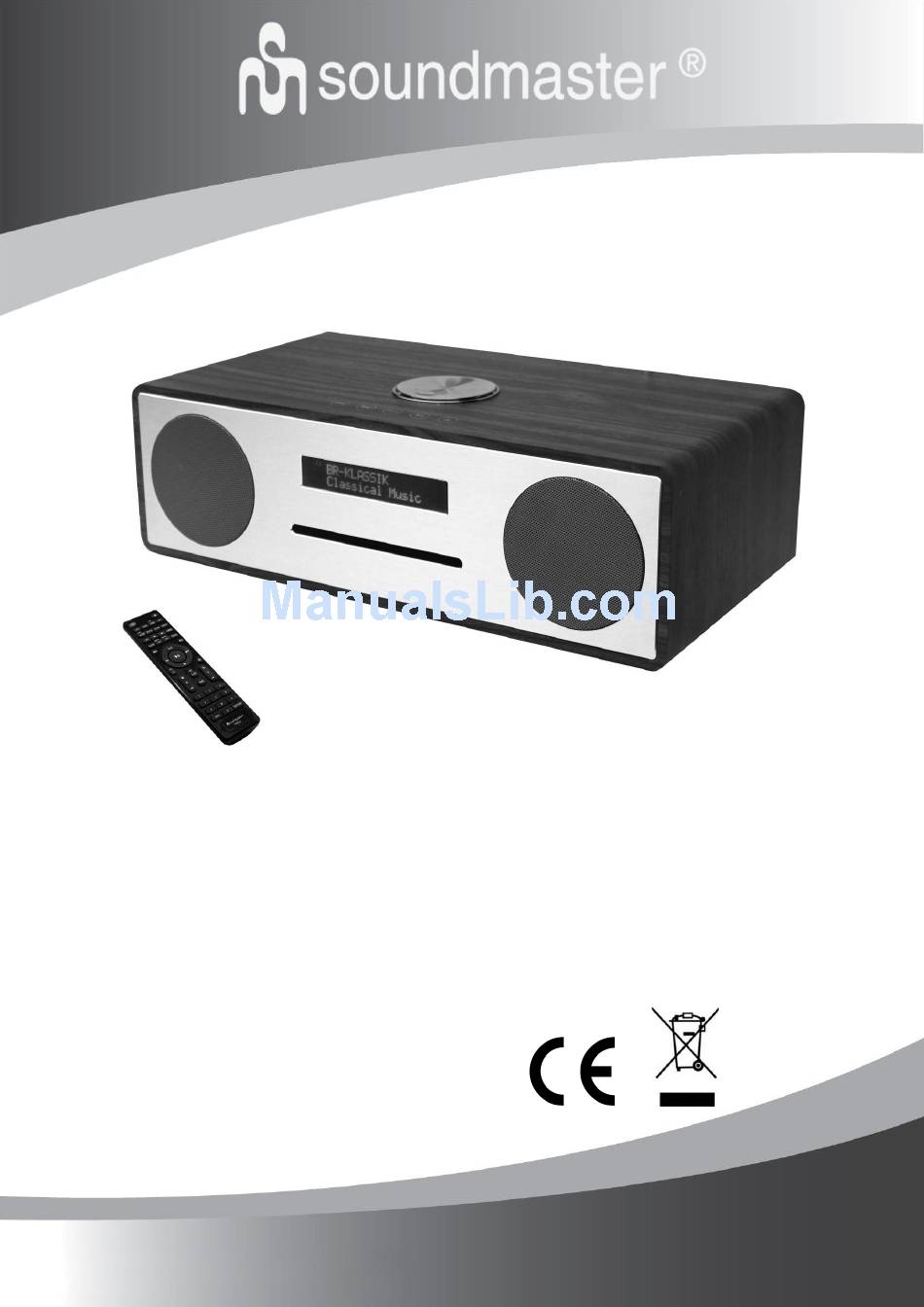

  • Page 1 DEUTSCH PORTUGUÊS ENGLISH DANSK FRANÇAIS NORSK NEDERLANDS SVENSKA ITALIANO LIETUVOS Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.woerlein.com DAB950...
  • Page 2 Safety, Environmental and Setup Instructions  No objects filled with liquids, such as vases, ENVIRONMENTAL PROTECTION shall be placed on the apparatus. Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection ...
  • Page 3: Product Overview

    DAB950 / English Instruction Manual UNPACKING Remove all packing from the unit. Retain the packaging if you dispose of it please do so according to local regulations.  Main unit  Remote Control (RC)  2 AAA batteries  3.5mm to 3.5mm cable ...
  • Page 4: Remote Control

    DAB950 / English Instruction Manual REMOTE CONTROL Standby / On “INTRO / AMS” Start scanning tracks in CD/USB “REPEAT” Play mode repeat “EQ” Equalizer “BASS -/+“ Adjust Bass in USER mode “USER” Select Bass and Treble in USER Mode “MENU”...
  • Page 5: Remote Control Operation Range

    DAB950 / English Instruction Manual Handling the Batteries • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property. • Install the batteries correctly by following the polarity (+ and -) indications in the battery compartment.
  • Page 6 DAB950 / English Instruction Manual The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Analogue Inputs Connection Connecting DVD player/TV outputs to analogue inputs from the sound board. Use a 3.5mm to RCA audio cable to connect the DVD player/TV outputs with the AUX (L/R)
  • Page 7: Basic Operation

    DAB950 / English Instruction Manual BASIC OPERATION Switching the unit on Press the button at the top of the unit or button on the remote control to switch the unit on. To switch off the unit press and hold the...
  • Page 8: Setting Timer

    DAB950 / English Instruction Manual SETTING TIMER You can use the setting timer to make the unit automatically turn on and off at a certain time every day from standby. The clock must be correctly set for the timer to operate correctly.
  • Page 9 Bluetooth devices, the system enters automatically into pairing mode; or you need to press and hold the “PAIR” button to start pairing. 2. Activate the Bluetooth function on your device and select the search mode. “DAB950” will appear on your Bluetooth device.
  • Page 10: Dab Operation

    DAB950 / English Instruction Manual DAB OPERATION DAB radio mode receives DAB/DAB+ digital radio and displays information about the station and program/track as broadcast. 1. Scanning for stations The first time you use the unit, or if the station list is empty. You may also need to start a scan manually to update the list of stations for one of the following reasons: ...
  • Page 11 DAB950 / English Instruction Manual To manually tune Select “MENU > Manual tune”. Then use the button on the RC to display a particular channel/frequency. Then press the button on the RC to tune that channel/frequency. The display shows a live indication of the received signal strength displayed.
  • Page 12 DAB950 / English Instruction Manual FM OPERATION FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and show (where broadcast). 1. Selecting stations The first time you select FM radio, the unit is set to the lowest frequency in the FM band.
  • Page 13 DAB950 / English Instruction Manual To play weak stations in mono Select “MENU > Audio setting > Forced mono”. Note: In the example screen on the right, the asterisk indicated “Stereo allowed” is the currently set value CD OPERATION Compatible Disc Types...
  • Page 14: Using The Usb

    DAB950 / English Instruction Manual Program When playing music, press the button on RC, then press the “PROGRAM” button, then the following information will be displayed on the screen. You can choose track by RC digital key to store as P01, P02 etc. In this process, press the “PROGRAM”...
  • Page 15: Technical Specifications

    DAB950 / English Instruction Manual Cleaning Discs Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Keep always the disc clean.  If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened cloth and finish with a dry cloth.
  • Page 16 Hiermit bestätigt Wörlein GmbH, dass sich dieses Gerät Härmed Wörlein GmbH deklarerar att denna enhet är i Übereinstimmung grundlegenden överensstämmelse med de grundläggande kraven och Anforderungen übrigen einschlägigen andra relevanta bestämmelser i direktiv 2014/53/EU. Bestimmungen der Richtlinie 2014/53/EU befindet. En kopia av försäkran om överensstämmelse kan erhållas Eine Kopie der Konformitätserklärung kann unter på...
