Page 1: User Manual

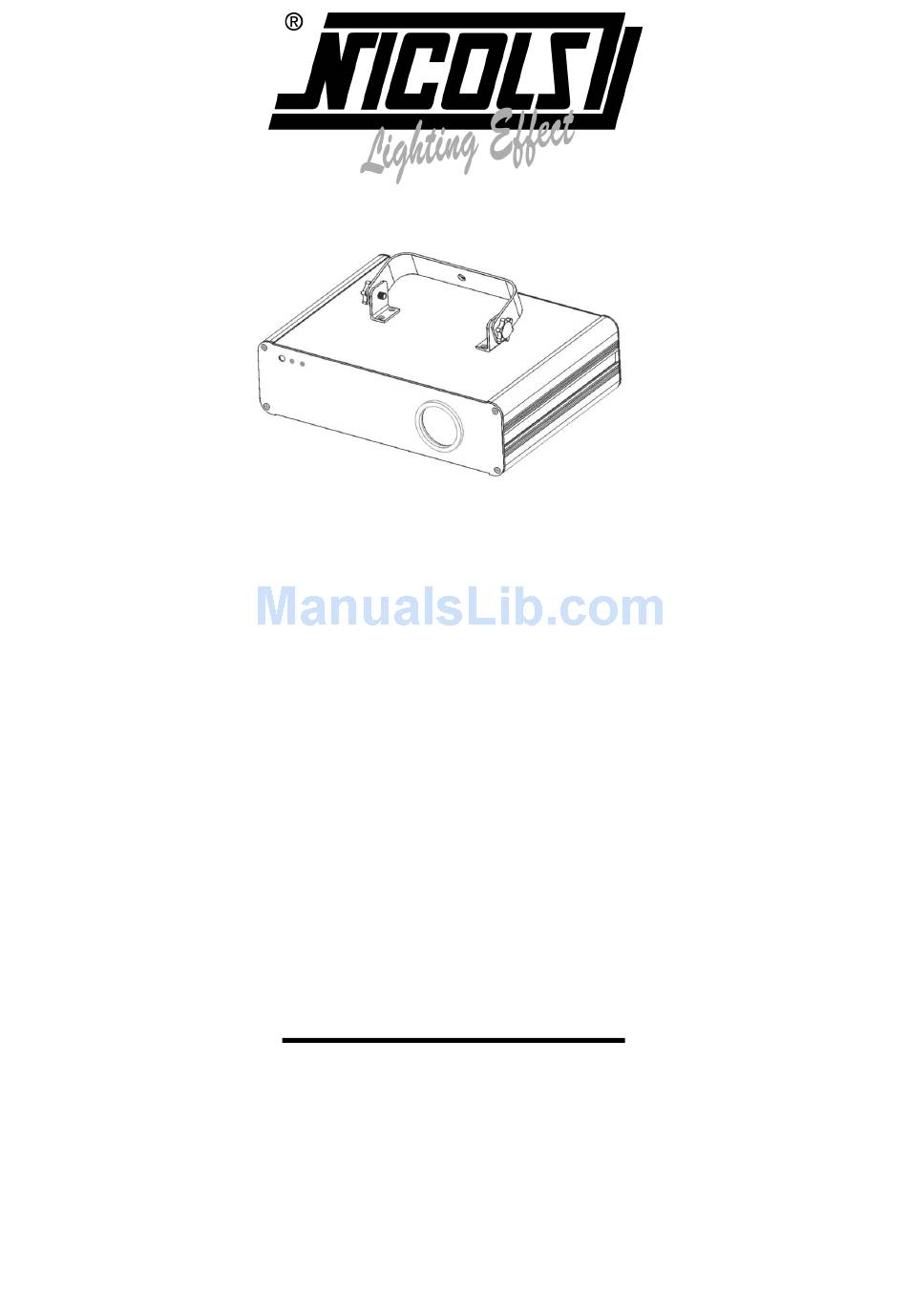

BLUE LASER PROFESSIONAL LASER SINGLE LASER USER MANUAL Thank you for using our products. For the sake of safety and better operation of this product, please read this manual carefully before using and operating it. -
Page 2: General Safety Instructions
Before any first use, unpack the set and make sure there was no damage during transport. Check for missing any part supplied with the laser: 1 x BLUE LASER 1 x POWER CABLE 1 x USER MANUAL GENERAL SAFETY INSTRUCTIONS This fixture must be earthed to in order to comply with the safety regulations and to avoid any electrical shock. -
Page 3: Installation Of The Unit
SAFETY INTRUCTIONS FOR LASERS According to EN/IEC 60825-1 regulations, this laser is classified under 3B class. Direct eye exposure can be dangerous DANGER: LASER RADIATION! UNIT UNDER 3 B CLASS AVOID DIRECT EYE EXPOSURE. LASER RADAITION CAN CAUSE EYE DAMAGE AND/OR SKIN DAMAGE AVOID EXPOSTION TO LASER RADIATION ALL PROTECTIVE MEASURES MUST BE APPLIED FOR MAKING THE USE OF LASERS SAFE This product is a so-called show laser emitting radiation with a wavelength spectrum and producing lasers for shows. -
Page 4: Front Panel
DMX Control channels: 7 channels Working modes : DMX, Sound activation, Auto, Master/Slave Effects : more than 100 patterns, over 400 effects Interface 3 pin XLR jack for DMX or Master/Slave linking Dimensions : 260x 360 x 140 mm Weight : 4.25 kg FEATURES Various operating modes: 4 modes with DMX, Sound activation, Auto, Master/Slave Different programs: more than 50 patterns, over 400 laser effects. - Page 5 DMX Control Parameters Chart CHANNELS FUNCTION VALUE DESCRIPTION 0～49 Closed, beam OFF 50～99 DMX MODE: static patterns CHANNEL 1 MODE 100～149 DMX MODE: dynamic patterns 150～199 Sound active mode 200～255 AUTO MODE CHANNEL 2 Pattern selection 52 static/dynamic mode 0～255 CHANNEL 3 Position-X 0～255...
-
Page 6: Function Settings
FUNCTION SETTINGS Use DIP switches to assign a unit’s function : DMX, Master / Slave, sound active or auto mode. For the unit is DMX mode, set the DMX address using dipswitch. Each dipswitch represents a binary value. Please refer to the chart below. Dipswitch #10 is used to set master or slave mode. -
Page 7: Dmx Mode
Choose a unit to function as master mode, set dipswitch to select AUTO or Sound active mode. The others must be set in slave mode. Set the DIP switch to slave mode. Use an XLR cable to connect devices together. Taken at the rear of the unit. Turn on all units. - Page 8 TABLE SET DMX ADDRESS...
