Ceiling Mounting - HIKVISION DS-2CD4025FWD-A Quick Start Manual

2.1 Ceiling Mounting

Steps:
1. Install the ceiling mount to the ceiling with the supplied expansion
screws.
2. Fit the lens (not supplied) to the camera and rotate it to get it
tightened.

Install the adapter ring to the lens interface if a C-mount lens is
used.

A manual-iris lens can be directly installed to the camera without
plugging the power cable of the auto-iris to the auto-iris interface.
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Network Box Camera·Quick Start Guide

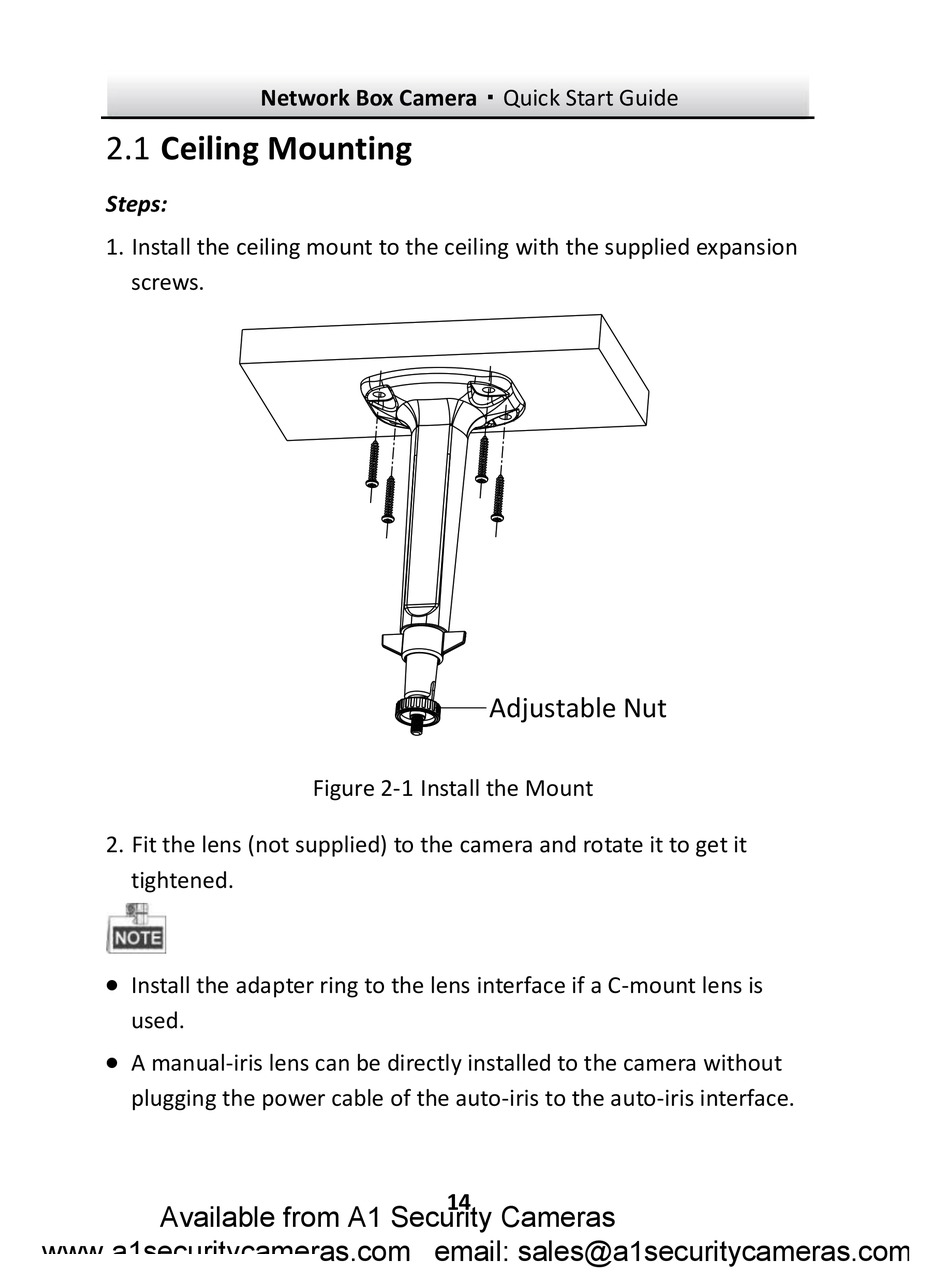

Figure 2-1 Install the Mount
Adjustable Nut
14
