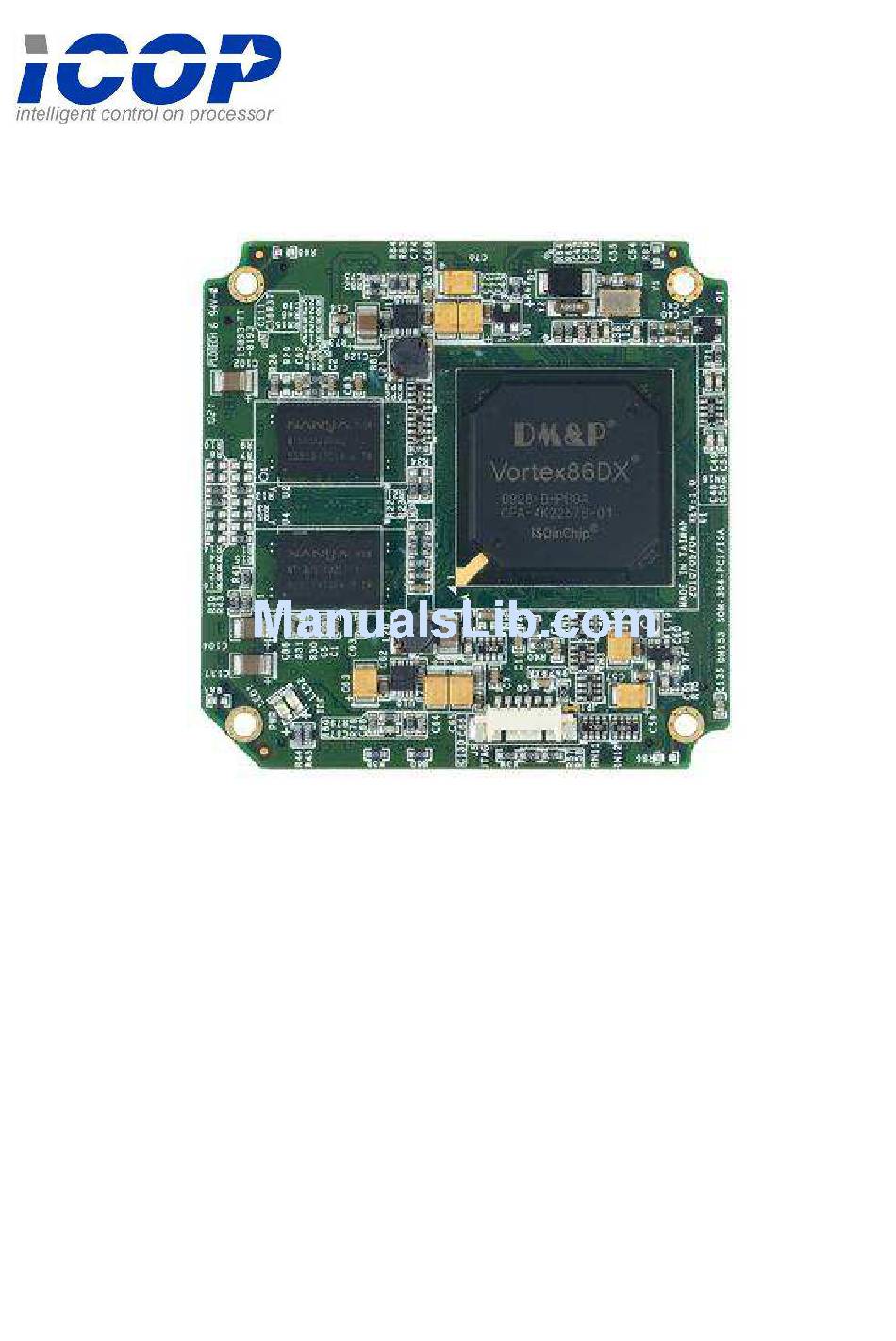

- Page 1 SOM304RD-PI Development Kit with 4S / 4 USB / LAN / 2GPIO / PWMx24 256MB DDR2 Onboard User’s Manual (Revision 1.0A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2008 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description .......... - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
C h a p t e r Introduction Packing List Product Name Package SOM304DX-DEV-PI x 1 HDD 40P (2.54mm) x 1 HDD 44P (2.0mm) x 1 SOM304DX-DEV-PI RS232 cable (2.54mm) x 5 GPIO cable (2.54mm) x 2 USB (2.54mm) x 1 Print cable (2.54mm ) x 1 Product Name Package... -
Page 6: Product Description
38pin connector, SOM304RD-PI is able to provide multiple functions, such as ISA BUS, RS-232, IDE, LAN, USB and GPIO. To assist users easily adapt SOM304RD-PI Module into their applications, ICOP offers a complete development board and referential circuit diagram for SOM304RD-PI Module in order to reduce users’... -
Page 7: Specifications
Specifications SOM304RD-DEV-PI Features SOM304DX-DEV-PI Bus Interface PCI, ISA bus standard compliant 1.27mm 76-pin header for signal x4 2.54mm 40-pin header for IDE x1 2.54mm 26-pin header for Printer x1 Connectors 2.54mm 20-pin header for GPIO x2 2.54mm 10-pin header for USB x1 2.54mm 10-pin header for RS-232 x5 2.0mm 44-pin header for IDE x1 98-pin slot for ISA x1... - Page 8 SOM304RD-PI Features SOM304RD-PI DM&P SoC CPU Vortex86DX- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache L2 Cache 256KB Cache AMI BIOS BIOS PCI, ISA bus standard compliant Bus Interface 256 / 512MB DDR2 onboard System Memory Software programmable from 30.5 us to 512 seconds x2 Watchdog Timer sets(W atchdog 1 fully compatible with M6117D)
-
Page 9: Board Dimension
Board Dimension SOM304DX-DEV-PI SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module... - Page 10 SOM304RD-PI SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module...
- Page 11 SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module...
-
Page 12: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline SOM304DX-DEV-PI COM9 IDE/SD COM3 EIDE Power Interface Connector Console Parallel Port Redirection COM4 GPIO 0, 1 GPIO 2, 3 ISA Bus PC/104 Bus PCI Slot ATX Power Input Reset PWR - SW PS/2 KB/Mouse COM1... - Page 13 SOM304DX-DEV-PI with PCI-VGA-Z9s PCI-VGA-Z9s Board LINE-IN COM2 PS/2 Mouse PS/2 KBD COM1 MIC-IN LINE-OUT SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module...
- Page 14 SOM304RD-PI JTAG SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module...
-
Page 15: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors SOM304DX-DEV-PI J26 J27 J13 USB1 SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module... -
Page 16: Connectors & Jumpers Summary
Connectors & Jumpers Summary SOM304DX-DEV-PI Description Type of Connections Pin nbrs. IDE Connector 44-pin Box Header, 2.0∅ ,22x2 IDE Connector 40-pin Box Header, 2.54∅ , 20x2 USB 2/ USB 3 10-pin Box Header, 2.54∅ , 5x2 USB1A USB 0/ USB 1 USB connector 8-pin Ethernet LAN... -
Page 17: Pin Assignments & Jumper Settings
PWR-SW Reset 2.4 Pin Assignments & Jumper Settings SOM304DX-DEV-PI J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK... - Page 18 J2: IDE (40 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0 IDESA2 IDECS0 IDECS1 IDELED J3: USB...
- Page 19 USB1B: Ethernet LAN Pin # Signal Name Pin # Signal Name J7A: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBDATA KBCLK J7B: PS/2 Mouse Pin # Signal Name Pin # Signal Name J9: TTL/RS232 Mode Selector (Open: On, Close: Off) Pin # Signal Name Pin # Signal Name J10: COM1/P4/PWM...
- Page 20 J11: GPIO (P0/ P1/ PWM) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J12: GPIO (P2/ P3/ SPI/ I2C/PWM) Pin # Signal Name Pin # Signal Name GP20 SPICS...
- Page 21 J14: COM2/Timer Counter Signal Pin # Pin # Signal Name Name DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 TXDEN2/VCC J16: ATX Power Pin # Signal Name Pin # Signal Name SB5V +12V -12V SB5V J17: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J18: COM3 TTL Mode...
- Page 22 J19: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J20: COM 4 TTL Mode Signal Signal Pin # Pin # Name Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 SOM304RD-PI Development Kit Vortex86DX™...
- Page 23 J35A: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK * RSTDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12...
- Page 24 J35B: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
- Page 25 J38: COM9 Pin # Signal Name Pin # Signal Name RXD9 TXD9 Only support SOM200SX-PC J45A: COM 1 Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 J45B: COM 2 Signal Signal Pin # Pin # Name Name...
- Page 26 SOM304RD-PI SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module...
- Page 27 SOM304RD-PI J1/J2/J3/J4: SOM304RD-PI Signal Assignment SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module...
- Page 28 SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module...
-
Page 29: System Mapping
2.5 System Mapping Memory Mapping Address Description Usage 0000:0000 - 9000:FFFF System RAM A000:0000 - A000:FFFF EGA/VGA Video Memory B000:0000 - B000:7FFF MDA RAM, Hercules graphics display RAM B000:8000 - B000:FFFF CGA display RAM C000:0000 - C000:7FFF EGA/VGA BIOS ROM C000:8000 - C000:BFFF Boot ROM enable C000:C000 - C000:FFFF Console Redirection enable D000:0000 - D700:FFFF Expansion ROM space... - Page 30 I/O Mapping I/O Address Owner Usage 0000h - 000Fh DMA 8237-1 0010h - 0017h COM 9 0020h - 0021h PIC 8259-1 Indirect Access Registers (6117D configuration 0022h - 0023h port) 002Eh - 002Fh Forward to LPC BUS 0040h - 0043h Timer Counter 8254 0048h - 004Bh PWM counter 8254...
- Page 31 00A0h - 00A1h PIC 8259-2 00C0h - 00DFh DMA 8237-2 00E0h - 00EFh DOS 4G Page access 0170h - 0177h IDE1(IRQ 15) 01F0h - 01F7h IDE0 (IRQ 14) 0220h - 0227h COM8 Forward to LPC BUS 0228h - 022Fh COM7 Forward to LPC BUS 0238h - 023Fh COM6 Forward to LPC BUS 0278h - 027Fh...
- Page 32 IRQ Mapping IRQ# Description Usage IRQ0 System Timer IRQ1 Keyboard Controller IRQ2 Cascade for IRQ8 – 15 IRQ3 Serial Port 2 IRQ4 Serial Port 1 IRQ5 IRQ6 IRQ7 Printer Port IRQ8 Real Time Clock IRQ9 USB/ Ethernet 10/100M LAN IRQ10 Serial Port 3 IRQ11 Serial Port 4...
- Page 33 DMA Mapping DMA# Description Usage DMA0 DMA1 DMA2 Floppy Disk Controller DMA3 DMA4 DMA5 DMA6 DMA7 SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module...
-
Page 34: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and the new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 35: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. Each GPIO pin is independent and can be configured as input or output, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 36: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 37: Pwm
New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw SOM304RD-PI Development Kit Vortex86DX™ SOM 304-Pin CPU Module... -
Page 38: Ide To Sd
44 pins IDE to SD Adapter can be easily installed on all Vortex86DX CPU boards. You or your customers just do the BIOS setting and use SD-1917 to connect IDE connector of Vortex86DX boards directly. For further inquiries of SD-1917, please contact ICOP sales team or mail to: info@icop.com.tw for your request. -
Page 39: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86DX processor also uses external Display Card ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output. -
Page 40: Appendix
Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. -
Page 41: Som304Rd-Pi & Somdx-Dev-Pi Schematic
B. SOM304RD-PI & SOM304DX-DEV-PI Schematic Schematic information can help baseboard designer to optimize exactly how each of these functions implements physically. Designer can place connectors precisely where needed for the application on a baseboard designed to optimally fit a system’s packaging. Please contact or e-mail our regional sales to get SOM304RD-PI CPU module and SOM304DX-DEV-PI Schematic. -
Page 42: Bios Default Setting
C. BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 43: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
