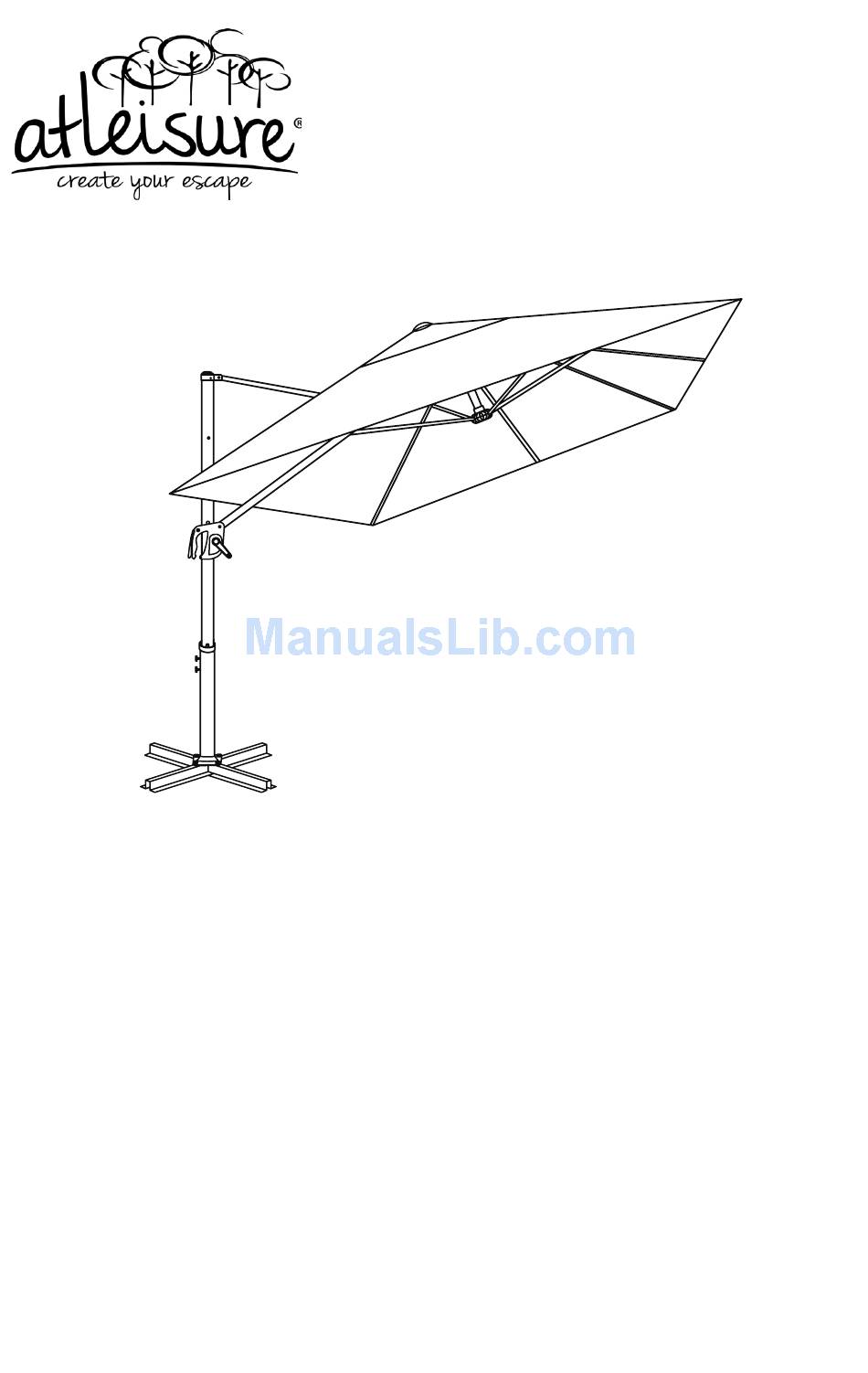

8.5ft Square Olefin
Offset Umbrella
Assembly & Care Instructions
Item: UMB- 952590
M51775
IMPORTANT : RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
For assistance with assembly, parts, or customer service, please contact:
ATLeisure, LLC
Toll Free: 1-855-880-7205 (English is offered)
8am - 5pm, Monday through Friday, Eastern Standard Time
Email: customerservice@atleisure.com or visit our website at www.atleisure.com
DO NOT RETURN TO STORE
For indoor/outdoor domestic use only. Not for commercial use.
Designed in USA
Made in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atleisure UMB-952590
Summary of Contents for Atleisure UMB-952590
- Page 1 ATLeisure, LLC Toll Free: 1-855-880-7205 (English is offered) 8am - 5pm, Monday through Friday, Eastern Standard Time Email: customerservice@atleisure.com or visit our website at www.atleisure.com DO NOT RETURN TO STORE For indoor/outdoor domestic use only. Not for commercial use. Designed in USA...
-
Page 2: Table Of Contents
Contents Package Contents ......2 Assembly ........3 Replacement Parts . -
Page 3: Assembly
Assembly Step 1: Place the Upper Cross (D) over Lower Cross Leg (C) to form an “X” as shown. Step 2: Attach the Holder Pole (F) to the cross legs (C & D) with the Bolts (GG) and Washers (HH) to be sure it is positioned correctly on the base. - Page 4 Assembly Holder Pole Ring Control Knob Step 3. Insert the main pole of the Umbrella Frame with Canopy (N) into the Holder Pole (F) until the lower fixed stop pin sits on th Holder Pole Ring as shown. Tight- en the two control knobs into the Holder Pole (F) to secure the umbrella.
- Page 5 Assembly Step 5. Unfasten to storage straps around the canopy as shown. Step 6. Open the umbrella. Pull out the lever clamp to release the glide handle as shown. Grasp and slide the glide handle up along the umbrella pole. Turn the crank handle in the open Storage direction.
-
Page 6: Replacement Parts
Additional Operation Instructions Lever clamp Glide handle Close Lock Release Open Lever clamp Glide handle Crank handle The umbrella has a unique design that allows the pole to move off to the side. The multi-position canopy can rotate 360˚ around the axis of the main pole to offer maximum shade to your patio. -
Page 7: Care And Maintenance
This warranty does not cover damage due to neglect, abuse or weather related damage. For full warranty disclosure, email us at customerservice@atleisure.com, call toll free at 1-855-880- 7205 or send mail to: 1040 Boulevard SE Ste. B, Atlanta GA 30312... - Page 8 ATLeisure, LLC 1040 Boulevard SE, Suite B Atlanta, Georgia 30312, USA Customer Service Toll Free 1-855-880-7205 8am - 5pm Eastern Time, Monday through Friday www.atleisure.com...
