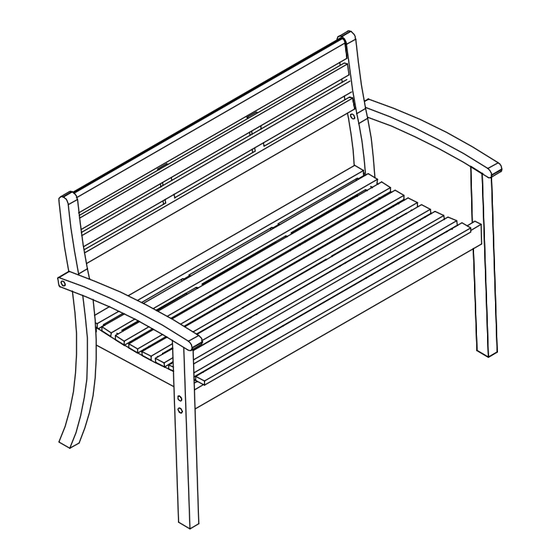

2-Seater Bench
Assembly & Care Instructions
SKU: 9023340
Model #: FRN-802180
IMPORTANT : RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
For assistance with assembly, parts, or customer service, please contact:
DO NOT RETURN TO STORE
For outdoor domestic use only. Not for commercial use.
Designed in USA
Made in Vietnam
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atleisure FRN-802180
Summary of Contents for Atleisure FRN-802180
- Page 1 2-Seater Bench Assembly & Care Instructions SKU: 9023340 Model #: FRN-802180 IMPORTANT : RETAIN FOR FUTURE REFERENCE READ CAREFULLY For assistance with assembly, parts, or customer service, please contact: DO NOT RETURN TO STORE For outdoor domestic use only. Not for commercial use.
- Page 2 If any part is missing or damaged, do not attempt to assemble the product. Contact our customer service representative for assembly assistance or questions at customerservice@atleisure.com or chat with https://help.atleisure.com. Estimated Assembly Time: 30 minutes...
- Page 3 Hardware Contents Part Description Quantity 7 x 60 mm Screw 8 x 70 mm Screw Sleeve Nut Washer Wrench Assembly Attaching the Back Panel to the Seat Panel IMPORTANT: Do not fully tighten bolts/screws until all pieces are loosely assembled. Connect back panel (B) to the seat panel (C) with the screws M7 x 60 (1) and tighten with the allen wrench (5).
- Page 4 Assembly (continued) Attaching the Armrest to the Seat Panel and Back Panel Connect armrest (A) to the seat panel (C) with the screws M7 x 60 (1). Connect the armrest (A) to the back panel (B) with bolt (2) and the washer (4) and the sleeve nut (3).
- Page 5 If you are within your warranty you must have your receipt and pictures of your in- formation to send to ATLeisure at customerservice@atleisure.com, or send by mail to 1040 Boulevard SE Ste. B, Atlanta GA 30312. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
- Page 6 ATLeisure, LLC 1040 Boulevard SE, Suite B Atlanta, Georgia 30312, USA Customer Service is available by email at customerservice@atleisure.com or chat at http://help.atleisure.com 8 AM – 5 PM EST, Monday – Friday.
