Summary of Contents for Infinique INO227X-AWT

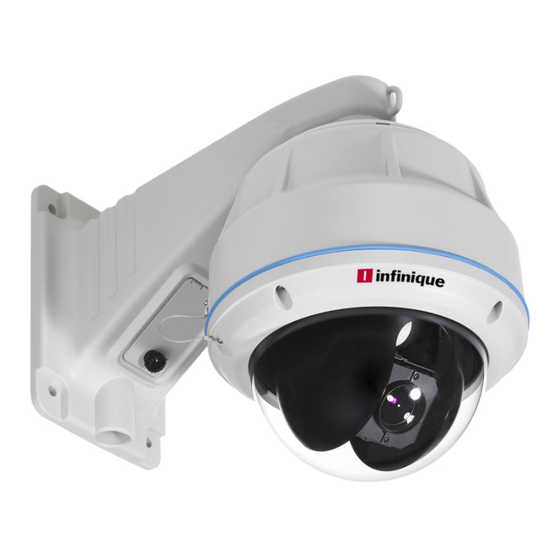

- Page 1 High Speed Dome Camera User Instruction Manual Please read this manual thoroughly before use and keep it handy for future reference. Infinique High Speed Dome Manual...
-
Page 2: Warnings And Cautions
The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance. Infinique High Speed Dome Manual... -
Page 3: Ce Compliance Statement
003 DU CANADA CE COMPLIANCE STATEMENT WARNING THIS IS A CLASS A PRODUCT. IN A DOMENSTIC ENVIRONMENT, THIS PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER MAY BE REQUIRED TO TAKE ADEQUATE MEASURES. Infinique High Speed Dome Manual... -
Page 4: Important Safeguards
Do not pull the cable. Never touch un-insulated Do not use the appliance Please install the product parts with wet hands. where there is excessive on a completely flat floor. dust smoke or moisture. Infinique High Speed Dome Manual... -
Page 5: Table Of Contents
- MENU TREE - TITLE EDIT - SYSTEM : Info Reboot Factory Event log Password - DISPLAY : OSD Setup Area titles Privacy zone Image setup - DOME : General setup Motion Home Preset Tour Pattern Scan Infinique High Speed Dome Manual... - Page 6 TABLE of CONTENTS - CAMERA : Focus/Zoom W-Balance Exposure Advanced - ALARM HOUSING & ACCESSORY Infinique High Speed Dome Manual...
-
Page 7: Introduction
Also, it offers perfect control of camera mechanism speeds even at high 36x magnification. The camera can quickly and accurately capture images from 360˚/sec to 0.1˚/sec at the slowest creep speed. Infinique High Speed Dome Manual... - Page 8 * Please use the unit in the range of a guarantee temperature and humidity of operation. * Please set ID of a camera as the same number as the input channel to DVR or Matrix switcher. Infinique High Speed Dome Manual...
-
Page 9: Features
6. The accuracy of preset - Our mechanism is designed for using Micro Step Motor with accuracy position. 7. Termination Free The last camera does not necessarily need the termination process after installation. Infinique High Speed Dome Manual... -
Page 10: Specification
SPECIFICATIONS Sony Module Infinique High Speed Dome Manual... - Page 11 SPECIFICATIONS Honeywell Module Infinique High Speed Dome Manual...
- Page 12 SPECIFICAITON Samsung Module Infinique High Speed Dome Manual...
-
Page 13: Configuration
INSTALLATION & CONFIGURATION Basic Configuration of Dome Infinique High Speed Dome Manual... -
Page 14: Package Contents
2. Body (W/O Sunshield)- 1 1. Wall Pipe Bracket- 1 Trim ring Bubble Dome- 1 2. Ceiling Pipe Bracket- 1 4. Wrench-3mm- 1 3. Set Anchor (8set)- 1 5. User's manual- 1 4. Sunshield- 1 Infinique High Speed Dome Manual... -
Page 15: Installation
- Do not install the camera beside air outlet of an air conditioner. Open the bubble using the wrench - Remove the airbag - Open the screw for dome camera unit - Take out the dome camera unit from housing body ass'y Infinique High Speed Dome Manual... -
Page 16: Each Part Name
- Before installation, please set the address switch(ID) as described in this manual. - ID of a camera should be the same number as the input channel to DVR or Matrix switcher. (Each camera has to have different ID number.) Infinique High Speed Dome Manual... -
Page 17: Protocol Setting
The unit automatically detects these protocols. See table A for details. Termination Free -If the user set the switch “Termination ON" for last camera, it is easy to install. Infinique High Speed Dome Manual... -
Page 18: Wall Mount Bracket
① Alarm cable connection ② RJ 45 Jack connection ③ Heater terminal connection - When you assemble the dome bubble ass'y, - Connect the dome bubble ass'y Please follow the picture. to the housing body ass'y. Infinique High Speed Dome Manual... - Page 19 AL Diecasting -Hang the safety hook - Put the dome cable into the bracket and fix it. - Fix the camera set by clockwise as - Assemble the fixed screws using the picture. the wrench supplied. Infinique High Speed Dome Manual...
- Page 20 - Close the bracket cover and fix it using bracket cable. knob bolt. Please see the cable connection - Fix the steel cover (supplied) on the upper part of the bracket using screw CM3x8L Completion (with sunshield) Completion (without sunshield) Infinique High Speed Dome Manual...
-
Page 21: Ceiling Mount Bracket
-Fix the plastic anchors on the ceiling and fix the set mount bracket using the screws (supplied). -Fix the pipe (supplied) through turning it clockwise as this figure. - Fix the set mount bracket and the using screws with wrench(supplied). Infinique High Speed Dome Manual... -
Page 22: Cable Connection
CABLE CONNECTION Each Part Name – Cable connection ①Interface cable RJ45 Infinique High Speed Dome Manual... -
Page 23: Dimension
DIMENSION Infinique High Speed Dome Manual... -
Page 24: Menu Tree
OPERATION & PROGRAMMING STARTING OSD MENU (Menu/Preset 95) If you use Pelco-D or Pelco-P protocol your controller, you can access the main menu by programming (saving or calling ) preset 95. MENU TREE Infinique High Speed Dome Manual... -
Page 25: Title Edit
4.Press [WIDE] button or twist the joystick counterclockwise to delete a character. 5.Press [ENT] or [IRIS OPEN] key to save the title and exit to previous menu. Press [ESC] or [IRIS CLOSE] key to go to previous menu without saving any titles Infinique High Speed Dome Manual... - Page 26 The operation of this manual is based on the standard pelco controller. NOTE 1. Version can be changed by system upgrade. 2. This manual is written by using supplied controller. 3. Temperature can be changed by outside environment. Infinique High Speed Dome Manual...
-
Page 27: System : Info
Use the following steps to display the system information on the screen: 1. Press the MENU key Move the right position by using joystick. Note. Version can be changed by system upgrade. Temperature can be changed by outside environment. Infinique High Speed Dome Manual... -
Page 28: Reboot
Use the following steps to reboot the system: 1. Press the menu key 2. Move the right position by using the joystick 3. Select reboot 4. To reboot the system, Press [ENT] or [OPEN] To CANCEL REBOOT, Press [ESC] or IRIS [CLOSE]key Infinique High Speed Dome Manual... -
Page 29: Factory
5. Press [ENT] button or move the cursor to <SAVE and EXIT> and then move the right position by using joystick. ALL : OFF→All of old parameters saved. ALL : ON →All of old parameters removed. Cam, Preset, Tour, Pattern, and Scan are same as above. Infinique High Speed Dome Manual... -
Page 30: Event Log
When the user scrolls up and down using joystick, the user can find kinds of error occurred during the operation. Press the [ESC] or [IRIS CLOSE] key to return the previous menu. Infinique High Speed Dome Manual... -
Page 31: Password
6. [ENT] or [IRIS OPEN] key to save password . [ESC] or [IRIS COLSE] key to return previous menu move. Note The default password is “0000” The user has to remember if the password is changed. Infinique High Speed Dome Manual... -
Page 32: Display : Osd Setup
5. To change the label position, press [TELE] button or twist the joystick clockwise. 6 Select <Save and Exit> to save settings and exit menu. 7. Select <Exit without Saving> to exit menu without saving settings. Infinique High Speed Dome Manual... -
Page 33: Area Titles
[IRIS OPEN] to save START limit angle. 5. Move the joystick to position stop limit angle and Press [ENT] [IRIS OPEN] to save STOP limit angle. 6. Edit a title, See [TITLE DEIT] section for detail. (Please see the page 24) Infinique High Speed Dome Manual... -
Page 34: Privacy Zone
(a zone is enabled automatically when it is programmed): 1. Use the joystick to position the cursor beside No.xxx .Move left or right to select zone ID. 2. Press the [WIDE] button or twist the joystick counterclockwise to clear. Infinique High Speed Dome Manual... -
Page 35: Image Setup
Mirror : Left-right reverse image Flip : Left-right, up-down reverse image. To set up image display 1. Press the MENU key. 2. Select DISPLAY and select IMAGE SETUP using joystick. 3. Select Mirror or Flip mode. Infinique High Speed Dome Manual... -
Page 36: Dome : General Setup
This setting defines the diagnostic monitoring activity. When the dome finds some problems, the error message is displayed. For details, see <SYSTEM→EVENT LOG> section in this manual. The following settings are available: OFF(default) : Disables self test Enables self test Infinique High Speed Dome Manual... -
Page 37: Motion
Azimuth zero is the pan angle from 0° to 365°. Azimuth zero is the pan position the user specifies the 0° point. Azimuth zero is normally set to Magnetic north. Once set, azimuth is based the set Azimuth zero point. Limit STOP Infinique High Speed Dome Manual... -
Page 38: Home
1 minute to 240 minutes. Note In order to call action preset, tour, pattern or scan, the user must save preset, tour, pattern or scan before call the action. MODE AUTO(default) : Enables HOME function. MANUAL : Disables Infinique High Speed Dome Manual... -
Page 39: Preset
Note Press [ENT] or [IRIS OPEN] key to save settings and exit to previous menu. - Press [ESC] or [IRIS CLOSE] key to go to previous menu without saving any settings at any time. Infinique High Speed Dome Manual... -
Page 40: Tour
To disable or clear a tour. 1. Use the joystick to position the cursor beside NO.xxx. Move left or right to select tour ID. 2. Press the [WIDE] button or turn the joystick counterclockwise to clear. Infinique High Speed Dome Manual... -
Page 41: Pattern
1. Use the joystick to position the cursor beside NO.xxx. Move the Joystick left or right to select a pattern ID. 2. Press the [WIDE] key or turn the joystick counterclockwise. * You can access this pattern setting menu with [PRTN] key in the controller. Infinique High Speed Dome Manual... -
Page 42: Scan
- Press [ENT] or [IRIS OPEN] key to save settings and exit to previous menu or Press [ESC] or [IRIS CLOSE] key to go to pervious menu without saving any settings at any time. OPERAION & PROGAMMING Infinique High Speed Dome Manual... -
Page 43: Camera : Focus/Zoom
Press [ENT] or [IRIS OPEN] key to save settings and exit to previous menu. Press [ESC] or [IRIS CLOSE] key to go to previous menu without saving any settings at any time. OPERATION & PROGAMMING Infinique High Speed Dome Manual... -
Page 44: W-Balance
Press [ENT] or [IRIS OPEN] key to save settings and exit to previous menu or press [ESC] or [IRIS CLOSE] key to exit to previous menu without saving any settings at any time. OPERATION & POGRAMMING Infinique High Speed Dome Manual... -
Page 45: Exposure
If auto iris is set auto mode, it will remain that way until the iris is manually opened or closed. The dome will return to auto mode when it is panned or tilted. OPERATION & PROGRAMMING Infinique High Speed Dome Manual... -
Page 46: Advanced
PAL = 17.7344MHz EXTERNAL When a TTL level V-Lock pulse is input, the camera synchronizes to the input signal (V-lock synchronization). When using a camera with AC power supply, this mode can be used. OPERATION & PROGRAMMING Infinique High Speed Dome Manual... -
Page 47: Alarm
*If you want cancel the alarm event, please move to joystick and then go to the “No.xxx” (alarm number). Press the <WIDE> button or turn the joystick counterclockwise. If the joystick is moved, the alarm setting will be stopped for 10sec. OPERATION & PROGRAMMING Infinique High Speed Dome Manual... -
Page 48: Housing & Accessory
Alarm input schematic method (ex. Alarm 0) EX) NO or NC Type magnetic Sensor Schematic HOUSING & ACCESSORY Infinique High Speed Dome Manual... - Page 49 HOUSING & ACCESSORY Infinique High Speed Dome Manual...
- Page 50 Infinique High Speed Dome Manual...
