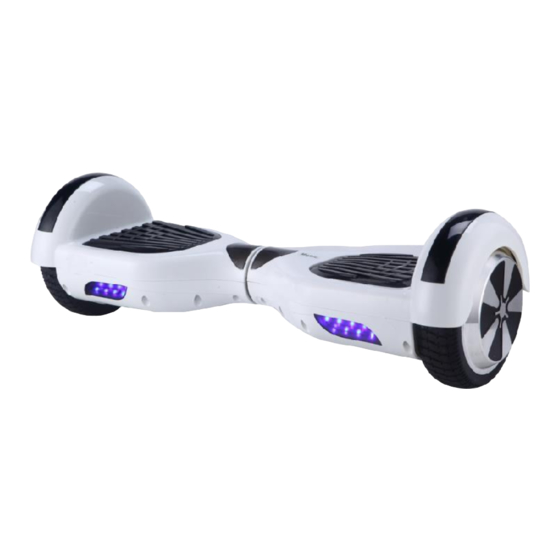

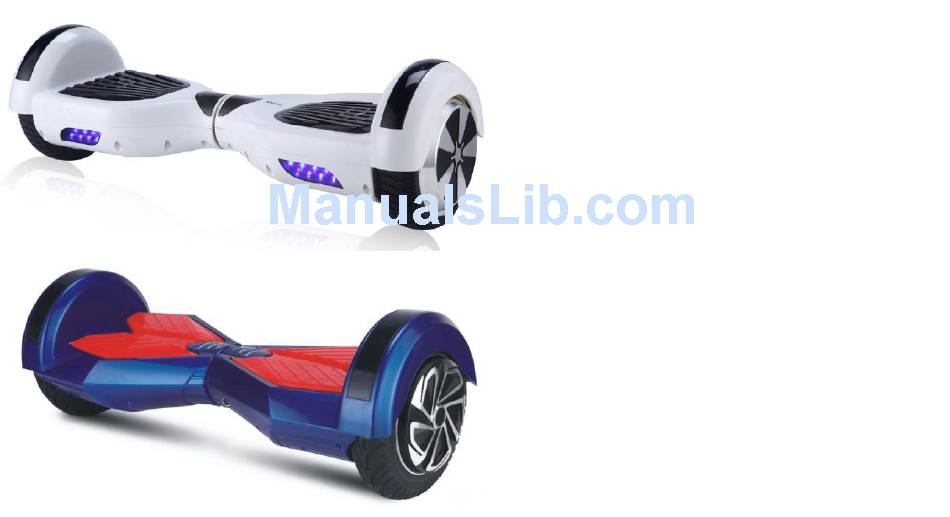

- Page 1 USER MANUAL Item no.: LME-S1 SMART SCOOTER F4H NAVBOARD Item no.: LME-S2...
- Page 3 Principle of operation The Smart scooter detects, as it balances, the change in its centre of mass, and first establishes and then maintains a corresponding speed, forward or backward. Gyroscopic sensors and fluid-based levelling sensors detect the weight . While standing on the pedals, it is very simple and intuitive to drive the scooter forwards, backwards, to steer it or stop it by merely shifting your body weight in the appropriate direction.
-
Page 4: Table Of Contents
SAFETY INSTRUCTIONS STRUCTURE & PARTS OPERATION INSTRUCTIONS 6-10 DRIVING SAFETY GUIDANCE 11-12 BATTERY USING GUIDE 13-15 TECHNICAL DATA MAINTENANCE & STORAGE 17-19 WARRANTY CARD CONTENTS >>... -
Page 5: Safety Instructions
Instruction before driving • We sincerely hope all drivers could enjoy a lot of fun and take a ride of SMART safely. • All experiences of riding a bicycle, car, skiing or use other similar vehicle could be applied to our products controlling and driving. •... -
Page 6: Driving Safely
Driving safely • Do not drive SMART if you are too young or too old, please wear safety equipment while driving. • Do not drive SMART if you are under the influence of alcohol or other non conscious situation. • Driver‘s maximum weight limit: 100KG •... -
Page 7: Safety Instructions
Endurance mileage The endurance of the Navboard battery depends on many factors, such as: • Road type：Smooth, flat ground with long travel distance, and on the contrary with short travel distance. • Weight: Driver's weight affects the travel distance. • Maintenance: Reasonable charging and maintenance of batteries will increase driving distance, and on the contrary will reduce travel distance. -
Page 8: Structure & Parts
STRUCTURE & PARTS >>... -
Page 9: Structure & Parts
Pedal Sensors • SMART is equipped with four sensors under foot pedal, it will adjust to equilibrium state automatically while stepping on foot pad. • Do not step beyond foot pad edge, please ensure your foot is sturdily placed on the pedal while driving. •... -
Page 10: Operation Instructions
Please follow the prompt operation instructions to learn and practice driving. Ensure you are in comfortable clothes and shoes, and make sure you don’t lose flexibility of body. If necessary, please wear safety equipment while driving, We hope you can successfully complete this initial driving stage. I-SWEET driving practice •... - Page 11 DRIVING PRACTICE NOTICE When you drive outside, please make sure you can operate SMART skillfully. • Please try to wear comfortable leisure sports clothes, flat shoes, to ensure the flexibility of the body. • Please practice driving SMART at open and flat place until you can operate easily getting on, moving forward, drawing back, stopping and getting off.
- Page 12 OPERATION INSTRUCTION >>...
- Page 13 Prohibited to drive at high speed in uneven place or turn curves at high speed in order to avoid dangerous. Do not turn on a slope running transversely, this will cause the car balance offset angle and affect safety driving. OPERATION INSTRUCTION >>...
-
Page 14: Operation Instructions
SMART SELF-PROTECTION In the process of operation, if there are any system errors or irregulanrities, SMART will remind driver in different way as below: • If scooter forward or backwards over 10, and rocking over 30 seconds, SMART system will be into self-protection mode which the indicator light and high frequency alarm buzzer. -
Page 15: Driving Safety Guidance
Below are the safety instructions, please read carefully before using the SMART self balance scooter. • Injury may occur due to loss of control, collision, falling when using the scooter, in order to avoid an accident, please read this guidance before riding scooter, be sure the SMART is in good condition before use. •... - Page 16 • Do not drive the scooter if your weight is over 100kgs, otherwise it can cause falls, injuries or accidents. There is also a chance that it will cause function damage. • Do not drive scooter if your weight less than 20kgs as this will reduce control over the scooter. •...
-
Page 17: Battery Using Guide
Here mainly introduce SMART charging, maintain battery, safety cautions and battery explanation. To ensure you and others safety, maximize the battery life and provide the battery performance. Please use the battery according to the following battery guidance. LOW BATTERY When you find the battery indicator light is one time, it's lack of power. We recommend you stop driving. When the battery lack of power, SMART is not enough energy for driving. -
Page 18: Battery Charging
BATTERY CHARGING • Ensure the power socket is dry. • Insert the charger head and place the plug into the power supply (110V~240V; 50-60hz), confirm the green charging lamp indicator is normal light before switching on the mains. • When the red charging indicator lamp is light up, the Navboard is in normal charging mode, otherwise please check all cable connections. - Page 19 Battery in high temperature or low temperature. If you want to make SMART run efficiency, the temperature of the battery must be marked within the temperature range no matter before charging or under charging. Close to the recommended temperature, the charge efficency is the highest. If too cold or too hot, the charging time will be longer or not completely filled full.
-
Page 20: Technical Data
SMART TECHNICAL DATA SPECIFICATION PARAMETER The minimum load 20kg The maximum load 100kg/220lbs The highest speed per hour 10km/h The maximum mileage 15km Maximum climbing angle 15 degree Turning radius Power Rechargeable lithium battery Voltage 100-240V Battery 36V, 4.3Ah TECHNICAL DATA >>... -
Page 21: Maintenance & Storage
Daily maintenance • SMART requires the daily maintenance. Below is the related procedures of maintenance SMART and important operation tips. Please ensure the power and charger are disconnected before operation the following steps. It's not allowed to operate if the power turned on or the battery charged. - Page 22 Storage: • Please ensure the SMART is fully charged before storage, to prevent the battery from over discharge for long time of no usage. • Please remove the battery to store the SMART if it will not be used for over a month, and ensure to conduct a full charge of the SMART at least every three months.
- Page 23 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
-
Page 24: Warranty Card
Dear customers: Thank you again for your purchasing SMART we would like to provid you good after-sale services since your purchasing date. WARRANTY CARD >>...
