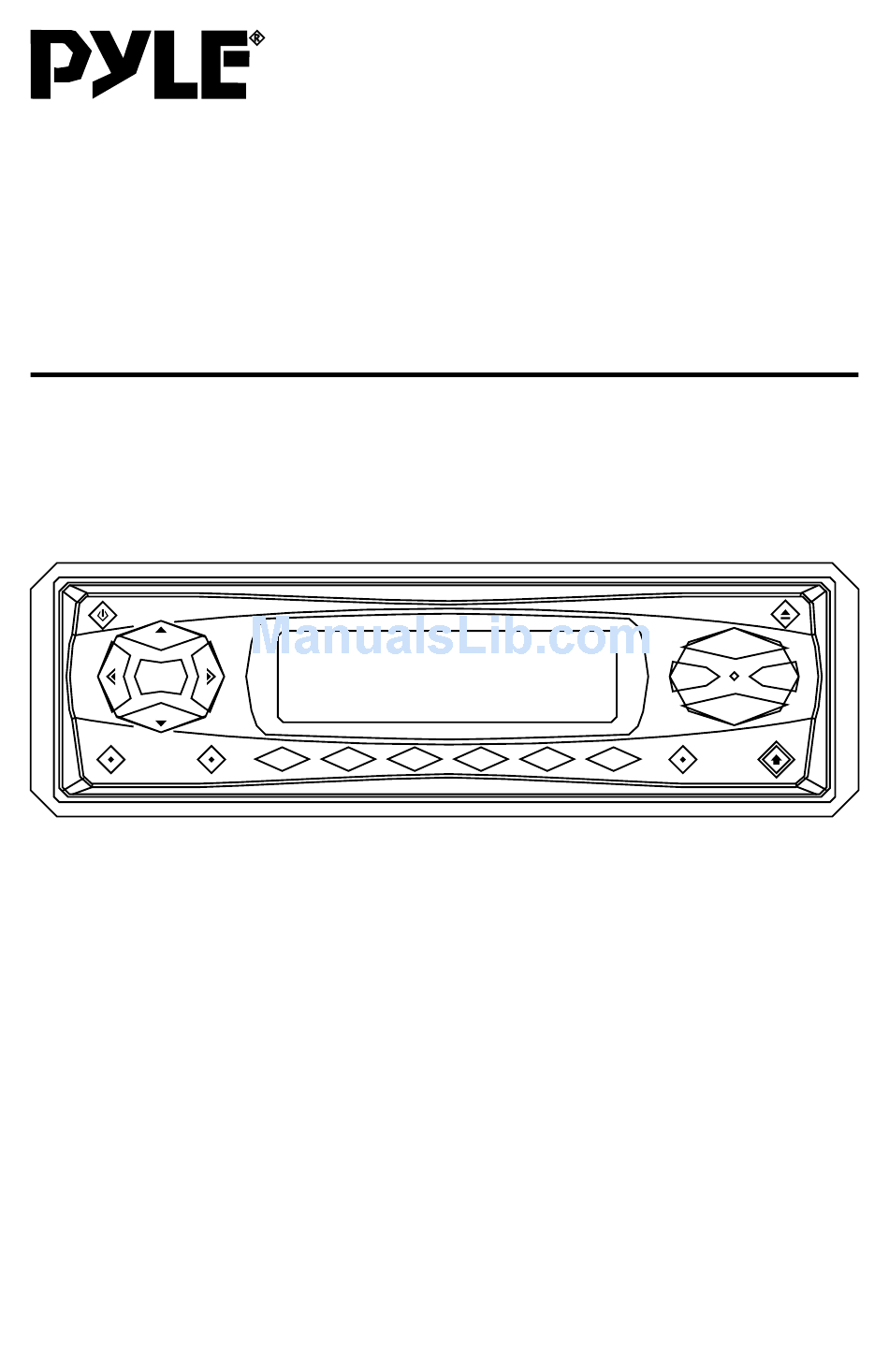

PLCD18MRMP
OWNER'S MANUAL
Mobile Audio System
• PLL Synthesizer Stereo Radio
• Digital Compact Disc Player/MP3 Player
• Automatic Memory Storing
• Slide Down Detachable Panel
• Program CD Tracks
• Electronic Shockproof (ESP) Function
• CD Changer Control
• Auxiliary Input Function
www.pyleaudio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLCD18MRMP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PYLE Audio PLCD18MRMP

  • Page 1 PLCD18MRMP OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Digital Compact Disc Player/MP3 Player • Automatic Memory Storing • Slide Down Detachable Panel • Program CD Tracks • Electronic Shockproof (ESP) Function • CD Changer Control • Auxiliary Input Function...
  • Page 2: Table Of Contents

    CONTENTS Installation ...3 DIN Front-Mount...3 Installing the unit...3 Removing the unit...4 Using the Detachable Front Panel ...5 Wiring Connection ...6 Operation ...7 General Operation ...11 Radio Operation ...13 CD Operation ...14 CD Changer Operation ...15 MP3 Operation ...15 Specification...18 Trouble Shooting ...19...
  • Page 3: Installation

    INSTALLATION Notes: • The unit can be installed on the vehicle or the ships. • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
  • Page 4: Removing The Unit

    INSTALLATION (Fig. 2) 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5x25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place. The strap can be bent by hand to the desired angle. 7.
  • Page 5: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL To Detach the Front Panel 1. Press the OPEN button, the front panel will slide down. Open 2. When the front panel slides down, press the bottom button of the front panel upward and pull it out from the panel bracket.
  • Page 6: Wiring Connection

    WIRING CONNECTION ANTENNA SOCKET IGNITION SWITCH (B+) MEMORY YELLOW BACK-UP BLACK GROUND (B–) POWER BLUE ANTENNA FRONT Lch SPEAKER WHITE/BLACK REAR Lch SPEAKER GREEN/BLACK MAIN UNIT WHITE GREEN WIRING REMOTE (BLACK) CONNECTOR SOCKET (BLACK) CD CHANGER CONNECTOR SOCKET (YELLOW) AUX IN Rch RED Lch WHITE (GREY)
  • Page 7: Operation

    OPERATION CONTROL & FUNCTIONS KEYS This unit is a marine rated wired remote control made using a modified controller or similar layout. It is capable of operation specified functions on the marine AM/FM/CD receiver and the marine AM/FM/Cassette receiver. The body, buttons, controls and display need to be UV and water-resistant.
  • Page 8 OPERATION 4 MODE SELECTION button Press the MODE button (4) to step sequentially through the following sources: e.g. radio mode to CD mode (or cassette mode) to CDC mode to AUX in mode. 5 BAND SELECTION button FOR WEATHER BAND VERSION ONLY: Press the BAND button (5) to step sequentially through the following bands: FM1, FM2, AM, WX.
  • Page 9 INSTALLATION INSTALLATION HARDWARE HOLDER SCREW (ø4X50) INSTALLATION DIAGRAM 1. First insert the hooks on the base into the slots of the holder to install the base to the holder. 2. Select the proper object, then place the remote mounting bracket on the base and let the object go through the base and the mounting bracket.
  • Page 10 INSTALLATION 3. Align the screw holes on the holder with the screw holes on the base and the screw holes on the bracket, then use the two screws (ø4X50) and nuts to fix the bracket, the base and holder to the proper location. 4.
  • Page 11: General Operation

    OPERATION LOCATION OF KEYS GENERAL OPERATION • ON/OFF Switch on the unit by pressing PWR button (9). When system is on, press PWR button (9) again to turn off the unit. • FACEPLATE RELEASE Press OPEN button (7) to slide down the removable faceplate.
  • Page 12 OPERATION For detailed operations, please see below: BEEP ON/OFF When beep on, the beep in generated when every button is pressed. When beep off, the beep is disabled when press any button. Program power on volume level In this mode, you can set the desired volume level when the unit turns on.
  • Page 13: Radio Operation

    OPERATION RADIO OPERATION • BAND SELECTION At tuner mode, press BAND button (18) shortly to select the desired band. The reception band will change in the following order: • SELECTING STATION Press button (16) or shortly to activate automatic seek function.
  • Page 14: Cd Operation

    • PAUSE PLAYING Press / MUTE button (3) to pause CD player. Press it again to resume play. • REPEAT THE SAME TRACK Press RPT button (21) to continuously repeat the same track. Press it again to stop repeat.
  • Page 15: Cd Changer Operation

    OPERATION CD CHANGER OPERATION • SELECT TRACKS Press button (16) or move to the previous track or the following track. Track number shows on display. Hold and press button (16) or button (17) to fast reverse or fast forward. Disc play starts from when you release the button.
  • Page 16: Display Information

    OPERATION Note: In this mode, you can also press the corresponding buttons listed on the Table 1 below to input your desired character to select the files or directories. KEY Assigned IN Searching mode (Table 1) Normal In MP3 searching SCAN MP3 Searching Mode Select...
  • Page 17 OPERATION Note: A. Notes on discs: 1. Attempting to use non-standard shape discs (e.g. square, start, heart) may damage the unit. Be sure to use round shape CD discs only for this unit. 2. Do not stick paper or tape, etc, onto the label side or the recording side of any discs, as it may cause a malfunction.
  • Page 18: Specification

    Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB)
  • Page 19: Trouble Shooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
  • Page 20 88-C1802-15...
