Page 1: Operating Instructions

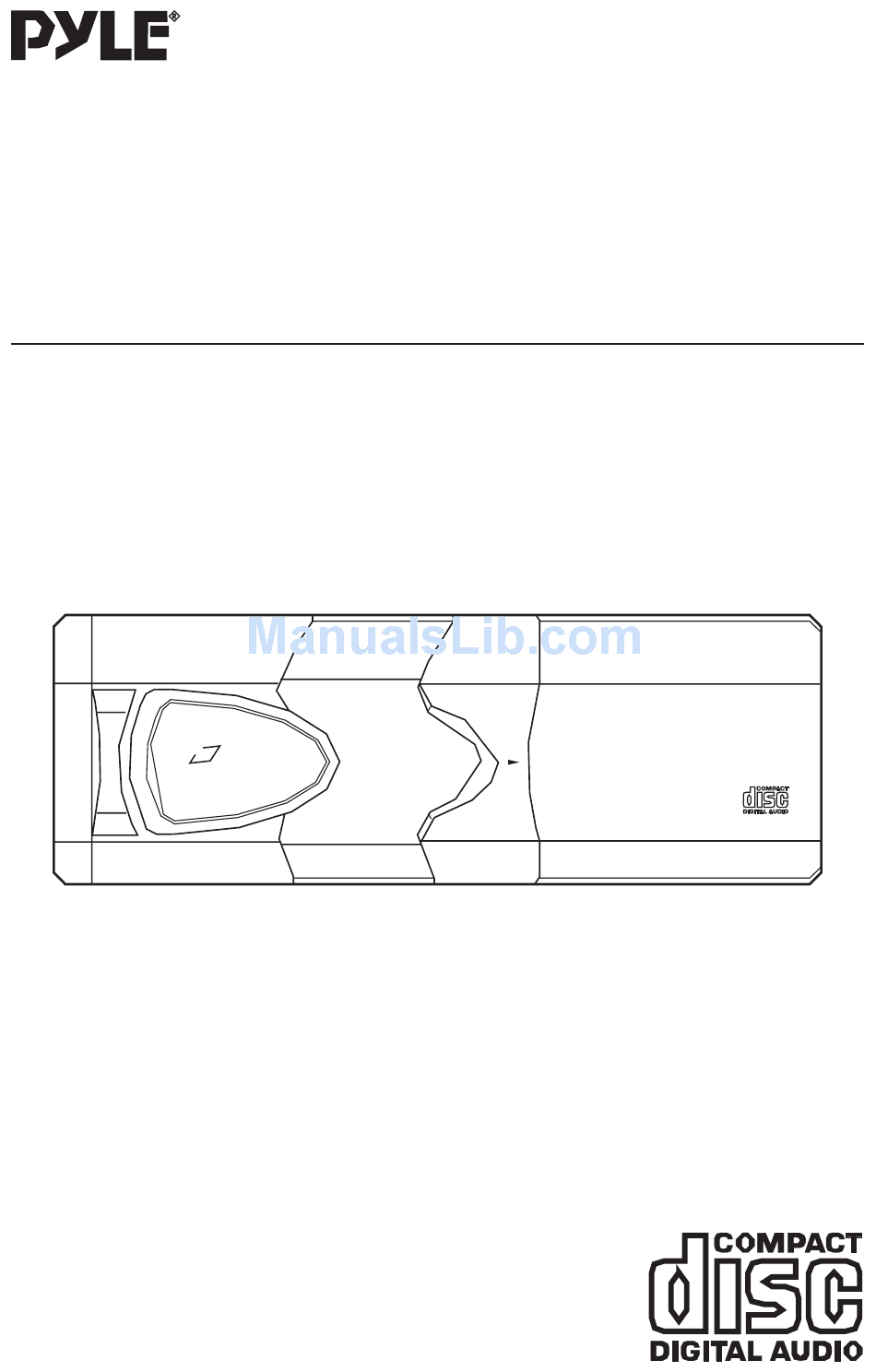

OPERATING INSTRUCTIONS DIGITAL AUDIO COMPACT DISC CHANGER Compact Disc Auto Changer PLCD10CH Disc Magazine Open Compact Disc Changer System Disc Auto Changer... -
Page 2: Table Of Contents
CONTENTS HINTS FOR CORRECT AND SAFE OPERATION HOW TO USE THE MAGAZINE PRECAUTIONS FOR HANDLING DISCS INSTALLATION PARTS WIRING RESET FUNCTION BEFORE INSTALLING THE UNIT • Transport Lock Screws • Installation and Wiring Precautions • Position of the built-in anti-vibration Board INSTALLATION •... -
Page 3: How To Use The Magazine
HOW TO USE THE MAGAZINE Loading a disc 1. Pick the tab on the magazine’s disc tray and pull out only of the trays. 2. Place the disc on the tray with its play surface facing down (label surface facing up). •... -
Page 4: Precautions For Handling Discs
PRECAUTIONS FOR HANDLING DISCS With new discs The symptoms described below sometimes occur when new discs are used: • The disc is not played even when it is loaded. • Operation changes to the next disc before the first disc has a chance to be played. -
Page 5: Installation Parts
Bracket (B) DIN 8 Pin Cable Connect this cable to the terminal of the CD player. The reset button must be activated with either a ball point pen or thin metal object. It is to be activated for the following reason: •... -
Page 6: Before Installing The Unit
BEFORE INSTALLING THE UNIT Transport Lock Screws The mechanism in the CD changer is “locked” into place during shipment by the transport screws. Be sure to remove the screws prior to installation. Caution After removing the transport lock screws, place the supplied seals over the screw holes. -
Page 7: Position Of The Built-In Anti-Vibration Board
Position of the built-in anti-vibration board This unit can be installed horizontally (suspended), vertically, and at a 45° angle. Once the installation position has been decided, it’s necessary to set the position of the built-in anti-vibration board inside the unit. Please do this before performing the procedure listed below. -
Page 8: Installation
INSTALLATION Procedure for Installation on Carpet (Horizontal Position) • Confirm that the built-in anti-vibration boards on both the left and right sides are set to the horizontal installation position “0”. • Attach the left and right brackets (A) using the hexagonal bolt (M4 x 5). •... -
Page 9: Procedure For Installation On Carpet (Vertical Position)
INSTALLATION Procedure for Installation on Carpet (Vertical Position) • Set that the built-in anti-vibration boards on both the left and right sides are set to the vertical installation position “90”. • Attach the left and right brackets (A) using the hexagonal bolt (M4 x 5). •... -
Page 10: Procedure For Installation On Carpet (At A 45° Angle)
INSTALLATION Procedure for Installation on Carpet (at a 45° angle) • Set the built-in anti-vibration boards on both the left and right sides to the 45° installation position “45°”. • Attach the left and right brackets (A) using the hexagonal bolt (M4 x 5). •... -
Page 11: Procedure For Installation (Suspended Position)
INSTALLATION Procedure for Installation (Suspended Position) • Confirm that the built-in anti-vibration boards on both the left and right sides are set to the horizontal installation position “0”. • Attach the left and right brackets (A) using the hexagonal bolt (M4 x 5). •... -
Page 12: Handling The Discs
HANDLING THE DISCS Dirt, dust, scratches and warpage cause sound skips during playback and a deterioration of sound quality. How to take care of your disc: 1. Use compact discs that have the mark shown on the right. 2. Fingerprints and dust should be carefully wiped off the disc’s signal surface (glossy side) with a soft cloth.
