Summary of Contents for StreetStrider Indoor Trainer Stand
- Page 1 INDOOR TRAINER STAND ASSEMBLY GUIDE 1-800-348-0998 | www.StreetStrider.com...
-
Page 2: Parts List
PARTS LIST (Note – Right and Left refer to sides when standing on the StreetStrider.) PART # DESCRIPTION Main frame Side Stabilizers, Right and Left Roller Assembly L-rod and Knob Podium with Top Cradle and Draw Clamp, Right and Left... - Page 4 STEP 1 STEP 3 Slide each stabilizer into main frame and secure with Raise roller assembly so that L rod protrudes through rear 65 x 6 mm hex bolt and 13 mm lock nut. hole, slide washer over threaded end and screw on knob. STEP Slide L rod into frame tube.
- Page 5 STEP 6 - 3i and 7i StreetStrider STEP 7 - 3i and 7i StreetStrider To mount the rear frame onto podium cradles, rotate Set chain stay in cradle about 1 inch in front of drop out. cradles so that the 45° lip is toward the inside.

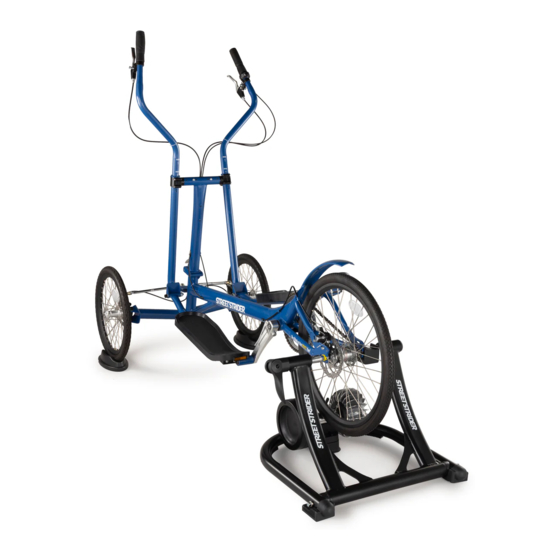

- Page 6 STEP 8 STEP 9 Screw L rod knob in at rear of roller assembly to Screw in resistance knob on side of roller assembly to press roller against tire. increase resistance. Resistance can also be increased by shifting to a higher gear while riding. STEP 10 ASSEMBLED TRAINER STAND Front wheel riser blocks can be used to help stabilize...
- Page 7 OUTDOORS + INDOORS...
- Page 8 1-800-348-0998 | www.StreetStrider.com...
