Deltamess TKS-WM Operating Manual
Heat meters
Hide thumbs
Also See for TKS-WM:
- Installation instructions manual (40 pages) ,
- Operating manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Deltamess TKS-WM
Summary of Contents for Deltamess TKS-WM
-
Page 1: Operating Manual

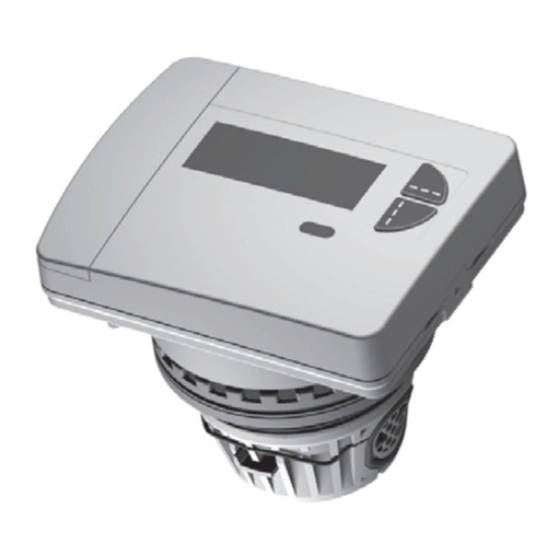

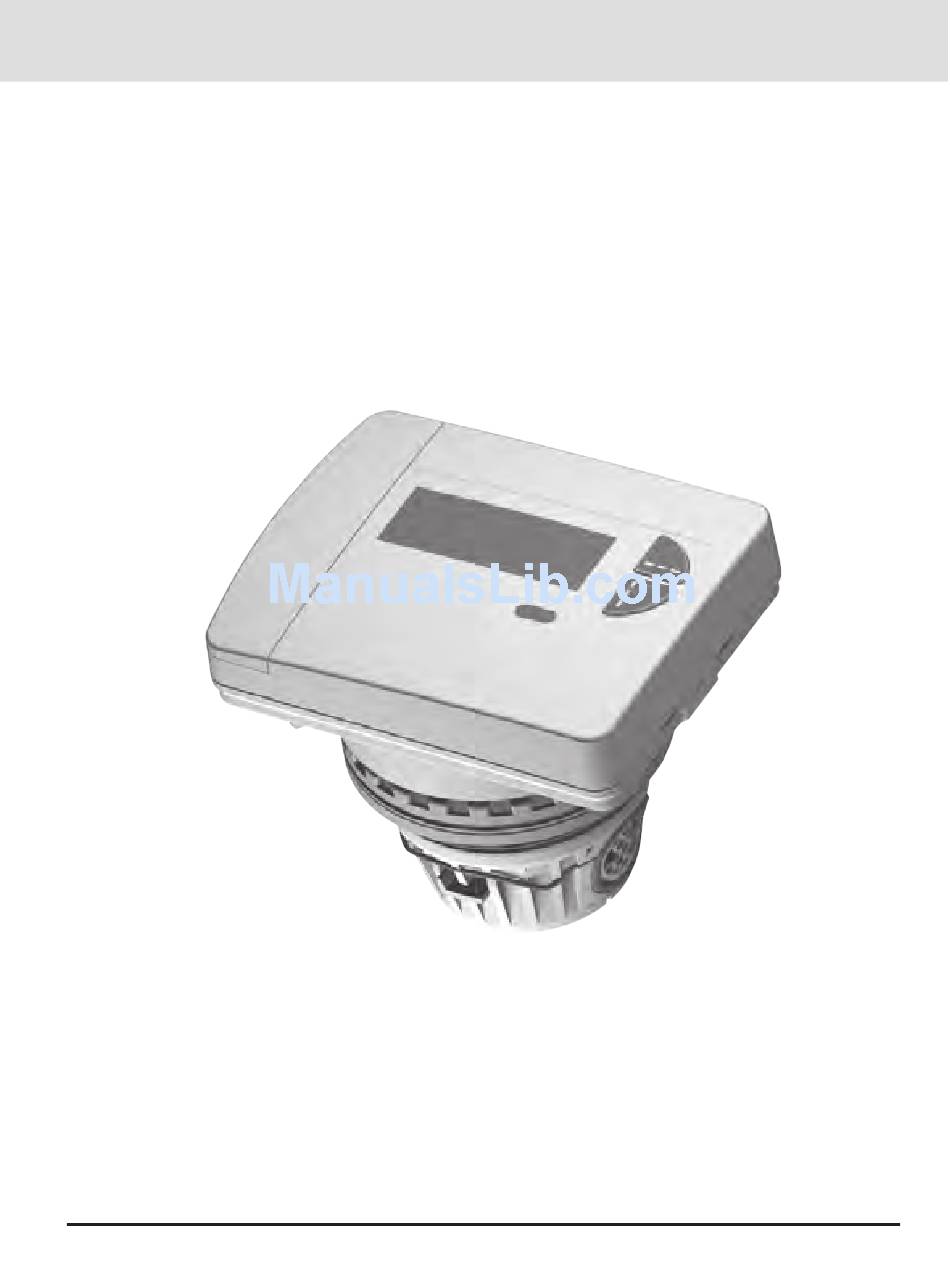

Operating manual IMPORTANT! READ CAREFULLY BEFORE USE. KEEP FOR THE ENTIRE LIFE OF THE PRODUCT. Heat meters Deltamess TKS-WM compact heat meter... -
Page 2: Table Of Contents
Contents Safety and warranty ..................3 Radio system ....................3 Lithium battery safety ................... 4 Safety instructions for lithium batteries ............4 Standards and directives ................5 Standards and directives ................5 Temperature sensor ..................5 Calculator - volume measuring part connection cable ........5 Instrument elements .................. -
Page 3: Safety And Warranty
Safety and warranty Important information competent personnel. Intended use Heat meters are used for central recording of heating energy consumption. Heat meters are intended for this use only. Improper use Any use other than the use described above or any changes made to the instru- tions must be made in writing beforehand and must be especially approved. -
Page 4: Lithium Battery Safety
Lithium battery safety Safety instructions for lithium batteries Certain components of the heat meter can be equipped with a lithium battery. ALWAYS COMPLY WITH THE RESPECTIVE VALID TRANSPORT REGULA- Handling lithium batteries: • store protected from moisture • • do not short-circuit •... -
Page 5: Standards And Directives
Standards and directives Standards and directives CE conformity refer to Declaration of Conformity (enclosed) Electromagnetic compatibility Immunity EN 61000-6-2 Emission EN 61000-6-3 Degree of protection IP rating IP65 Heat meters European Measuring Instruments Directive (MID) 2004/22/EC DE-12-MI004-PTB009 Heat meters EN 1434 Heating medium quality to VDI Guidelines 2035 Electromagnetic class... -
Page 6: Instrument Elements
Instrument elements Controls and interfaces (1) By default, the display is always off (sleep mode). Briefly press the key <H> or <V> to bring up the display loop to the quick reading. Press the key <H> or <V> for more than 3 seconds to call up the plane operating display diagramm. -
Page 7: Status Displays
Instrument elements Status displays Display Description The data displayed applies to: • Heat = heating • Monthly pulse input 1 values • Cool = cooling • Monthly pulse input 2 values • (empty) = Displayed value is a current value •... -
Page 8: Display
Display Call display loop QUICK READ By default, the display is always off (Sleep mode - Briefly press the key <H> or briefly press the key <V> Current heat meter The display for quick reading reading starts with the current con- 5 sec. -
Page 9: Levels Overview
Display Levels overview Current consumption values • Default level Annual consumption values • Default level Instantaneous values • available in all instrument versions • Can be hidden individually Parameter • Available in all instrument versions • Can be hidden individually Connections •... -
Page 10: Display Level L0 - Current Consumption Values
Display... -
Page 11: Display Level L1 - Annual Consumption Values
Display... -
Page 12: Display Level L2 - Instantaneous Values
Display Display level L2 – instantaneous values Level display temperature Instantaneous return temperature Instantaneous temperat- alt. ure difference Instantaneous Operating hours Cumulated volume High-resolution heat meter reading This segment appears depending on High-resolution heat meter reading... -
Page 13: Display Level L3 - Parameters
Display Display level L3 – parameters Level display Date of next reference date Flow sensor pulse value Calibration Calibration Check number Serial number Firmware version Firmware version alt. alt. This example: Possible + activated Levels 2, 3, 4 and 5 are shown, levels = level 6 is hidden, 2x spaces = level 7+8 not available,... -
Page 14: Display Level L4 - Connections
Display Display level L4 – connections Level display Walk-by Radio mode annually 4/2 records Transmission monthly 6/0 records Start time Stop time Transmission-free days Postponement in days... -
Page 15: Display Level L4 - Connections
Display Display level L4 – connections Level display Primary address Heat meter M-Bus Primary address Heat meter M-Bus Primary address M-Bus Pulse 1 Primary address M-Bus Pulse 2 Level display Primary address Heat meter M-Bus Primary address Heat meter M-Bus... -
Page 16: Display Level L5 - Monthly Heat Values
Display... -
Page 17: Display Level L87- Monthly Pulse 1 Values
Display... -
Page 18: Display Level L9 - Highest Values
Display Display level L9 – highest values Level display Max. temperature Date Duration above limit Flow alt. alt. Return alt. alt. Date Duration > qp Heat meter alt. alt. Error messages Error display Error description Measures/Notes • Hardware fault or •... -
Page 19: Eu-Declaration Of Conformity
Conformity EU-Declaration of conformity QUNDIS GmbH Sonnentor 2 99098 Erfurt declare under our sole responsibility that the product(s): HMR5-DM01-XXXX XXXXX to which this declaration relates is/are in conformity with the requirements of the fal- lowing directive(s) 2004/108/EC Electomagnetic Compatibility (EMC) 2004/22/EC Measuring Instrument Directive (MID Modul B+D) 2011/65/EU... -
Page 20: Correct Disposal Of This Product
DELTAMESS must not be disposed of via public collection points for electrical appliances. All old electronic appliances from DELTAMESS must be sent to us for disposal. The prepaid delivery is to be sent to the following address:...
