- Page 1 Patriot Power Generator User Manual Unit 4.1L...
- Page 2 Lion Energy products are a trademark of Lion Energy. Patriot Power Generator is a registered trademark of 4Patriots, LLC. Notice of Copyright Patriot Power Generator User Manual. Copyright © 2017 4Patriots, LLC. All Rights Reserved. Exclusions for Documentation Unless specifically agreed to in writing, 4Patriots and the Patriot Power Generator: A.
-
Page 3: Table Of Contents
CONTENTS ABOUT THE PATRIOT POWER GENERATOR SYMBOLS AND TERMS SAFETY INSTRUCTIONS GETTING STARTED UNIT OVERVIEW TROUBLESHOOTING/FAQ TECHNICAL SPECIFICATIONS WARRANTY INFORMATION... -
Page 5: About The Patriot Power Generator
The quiet, portable device is all about practicality and endurance, lasting up to 2,500 complete life cycles. Other generators try, but none can match the power of the Patriot Power Generator and still offer all of the following: Safe: No emissions —... -
Page 6: Symbols And Terms
SYMBOLS AND TERMS Important Symbols The following symbols are used in this guide: Warnings are conditions and practices that could result WARNING in personal injury. CAUTION Cautions are conditions and practices that could result in damage to the unit or other equipment. Important Terms The following terms are helpful for you to know and are used in this guide. -
Page 7: Safety Instructions
• Before using your unit, read ALL instructions and information in this user manual. • Although intended for indoor use, the Patriot Power Generator can be used outdoors if sheltered. DO NOT expose the unit to rain, snow or extreme temperature environments. To reduce the risk of fire hazard, DO NOT cover or obstruct fan vents located on the back and side of the unit. -
Page 8: Getting Started
• In order to get the most from your unit, be sure to carefully read this user manual. Even though your Patriot Power Generator has many advanced built-in safety features, it is still important to take some time to become familiar with the Safety Instructions on Page 7 of this guide before operation. - Page 9 Smart LCD Display • Press main power button. The button will stay down and the power symbol on the button will turn red. The display will light up and your generator is now on. • Press the power button to turn the unit off. The button will become flush with the metal and your unit will be turned off.
- Page 10 Interface Panel 75 °F 120V 13.3V / 0.6 A U S B 5.0V 0.0 A 13.6V / 8.4 A MAIN SW AC OUTPUTS 120V 1500W Max 20A Max...

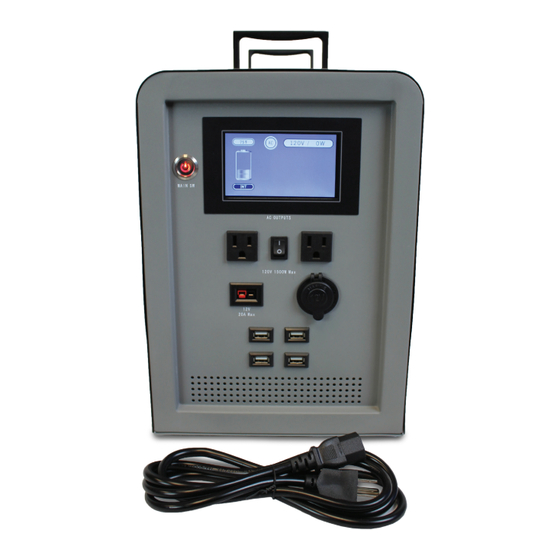

- Page 11 1. Main Power Button 2. Smart LCD Display 3. AC Outlets (2) 4. AC Outlet Switch 5. DC Anderson Outlet 6. DC Cigarette Outlet 7. DC USB Outlets (4)
-
Page 12: Back Panel
Back Panel AC INPUT DC INPUT 100V–240V 12V 15A EXTERNAL PORT (DC12V) - Page 13 1. Cooling Fan 2. AC Charging Input 3. DC Charging Input 4. Expandable Battery Port...
- Page 14 AC CHARGING WARNING AC INPUT DC I Electrical shock can occur if AC cord is damaged or frayed. Never use a damaged or frayed AC cord. Replace with a new cord before proceeding with AC charging. See Contact Information on page 2. 100V–240V •...
- Page 15 U S B 5.0V 0.0 A AC USAGE OUTLETS 13.6V / 8.4 A MAIN SW WARNING Electrical shock can occur if AC OUTPUTS AC cord is damaged or frayed. Never use a damaged or frayed AC cord. Replace with a new cord before proceeding with AC usage.
- Page 16 AC OUTPUTS DC USAGE OUTLETS WARNING 75 °F 120V Electrical shock can occur if DC cord is damaged or frayed. 120V 1500W Max 13.3V / 0.6 A Never use a damaged or frayed DC cord. Replace with U S B 5.0V 0.0 A a new cord before proceeding...
-
Page 17: Troubleshooting/Faq
• Should you encounter further trouble please contact our customer service department. 2. I used the Patriot Power Generator once, and now it won’t charge when I plug it into the wall. • The generator is designed to work for over 2500 full discharge and charge cycles. - Page 18 • Please contact customer service if the generator isn't operating to these specifications. 4. My Patriot Power Generator battery doesn’t last as long as I thought it would. • The generator has a capacity of 600W/h, or 0.6kW/h. While the generator has a very large energy capacity, it is not limitless, and after being used will need to be recharged.
- Page 19 • To extend the life of your generator battery, consider using more energy-efficient devices and connecting it to solar panels during use. 5. How do I know when my Patriot Power Generator is fully charged? • To ensure the generator is fully charged while using the AC 120V charger: - Turn all other switches and buttons to the off position.
- Page 20 6. How do I know when my Patriot Power Generator is fully discharged? • The generator has an LCD screen that will tell you how full the battery is. The battery gauge has 6 bars. When the gauge is full, so is the battery.
- Page 21 8. My Patriot Power Generator won’t charge when I connect my solar panels to it. • Solar panels work best when pointed directly at the sun without obstruction. The solar panel will not produce an adequate charge if it is:...
- Page 22 Power Generator does not need to be kept on a trickle-charger, or have the charger plugged in constantly to retain a charge. 11. My Patriot Power Generator’s fans are on after I turned it off. Should I be worried? • No. The generator may continue to run to cool the internal components to optimal temperatures after being turned off.
- Page 23 12. The Patriot Power Generator emits a burning odor while operating. • The generator should not have any odor while functioning or stored. Dust, dirt, or debris should not be allowed to enter the generator, but if it does, it may emit a very light odor similar to a clothes dryer when functioning.
- Page 24 • Check the cable for damage and verify it is fully plugged in. If problem persists try another cable. 18. My Patriot Power Generator got wet and now will not turn on. • It is possible to damage the generator when used improperly or in harsh conditions.
- Page 25 19. Can I use my Patriot Power Generator as part of a daisy chain with other Patriot Power Generators? • No. The generator is designed for use as a stand-alone power unit. It should not be connected to other batteries in series or parallel in a battery bank.
-
Page 26: Technical Specifications
TECHNICAL SPECIFICATIONS Dimensions: 13.375" L x 9.375" W x 15.875" H Weight: 46 lbs (20.87 kg) Operating Temperatures: 32–194 °F (0–50 °C) Battery: • Lithium Iron Phosphate Based Chemistry (LFP) • Prismatic Cell Geometry • 50 Amp/h (600W/h) • 12V •... - Page 27 Controls: • On/Off - The generator has an LED-lit master power button next to the LCD display. The LED will be illuminated when the generator is on and will not be illuminated when the generator is off. Input Ports: • AC: 100V-240V •...
-
Page 28: Warranty Information
WARRANTY INFORMATION 0–365 days from the date of delivery: What is covered? • Defects in materials or workmanship • Non-Cosmetic normal wear-and-tear related damages • Units are authorized for return. To receive authorization, please contact our customer service team (see contact information on page 2). - Page 29 Additional Terms: 1. Damage caused willfully or by negligence will void both the warranty. Willful or negligent damage is determined upon receipt and inspection of the unit. All refunds/returns will be processed after inspection for willful or negligent damage. 2. Any unit that has been altered or repaired by an unauthorized service is voided of any warranty.
- Page 30 Notes...
