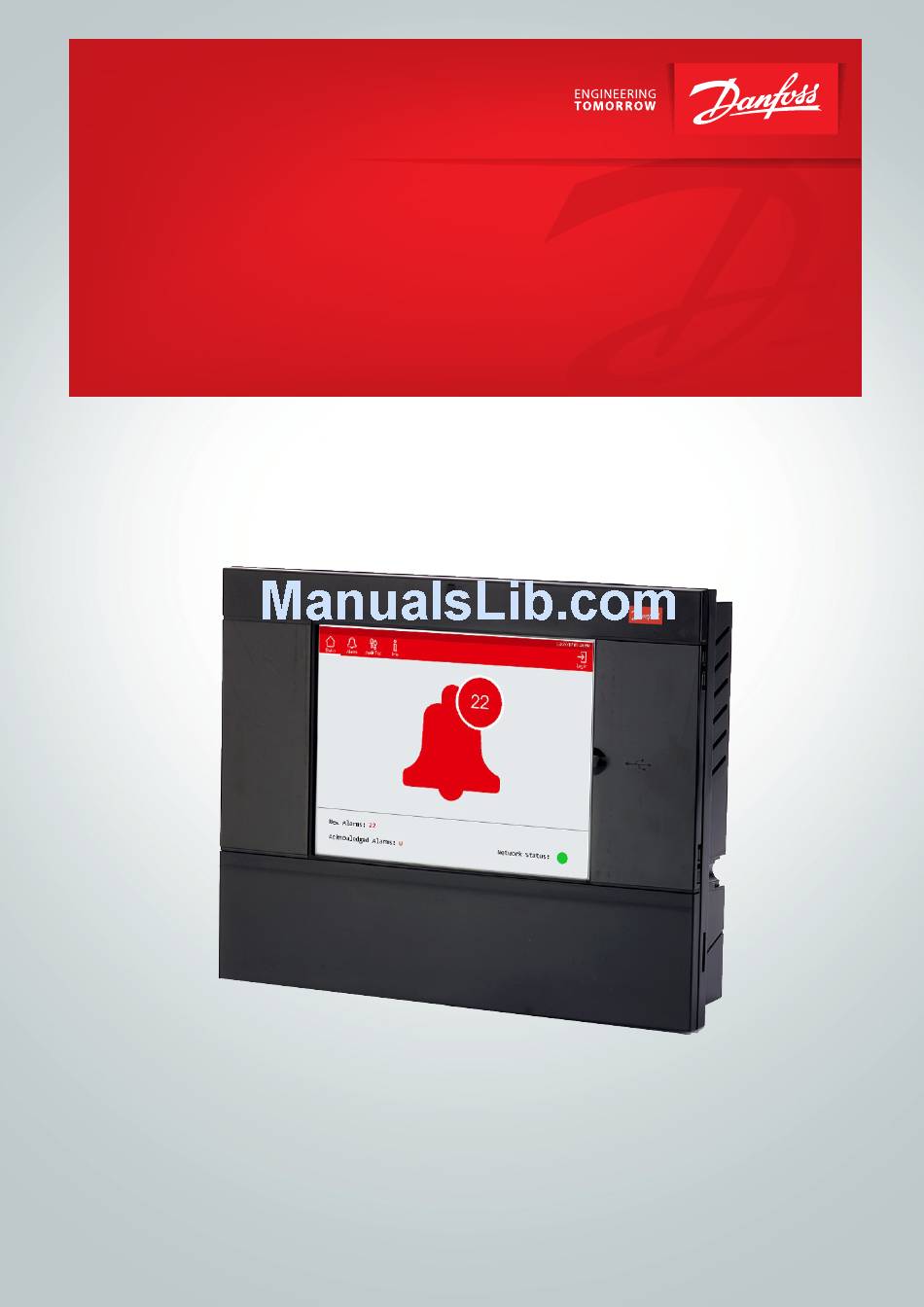

- Page 1 User Guide Alarm Logger AK-SM 800AL ADAP-KOOL® Refrigeration Control System...
-
Page 2: System Requirements
The AK-SM 800AL is intended to be part of the System Manager host network, utilizing IP/Ethernet communications between all units. Alarms raised at any System Manager 800 can be forward- ed/routed to the alarm logger for action and escalation by store staff. -
Page 3: Principle Of Operation
Danfoss System Manager 800 application. The main purpose of the AK-SM 800AL is to provide clear notifi- cation when an alarm occurs from any of the connected System Managers and offers the ability to acknowledge alarms, via an easy to use touch screen. - Page 4 First time setup – setup wizard Wizard 1/3 Language Upon first start up, the AK-SM 800AL will display a simple 3-step wizard. The first screen will ask what language the unit should operate in. There is no requirement to reset the AK-SM 800AL when selecting the language, the unit will dynamically adjust per the selection.
- Page 5 AK-SM 800 host units For the AK-SM 800AL to function it is required that at least one AK-SM 800 unit be present in the host system. As part of the auto- mated configuration process in the last wizard step the AK-SM 800 unit(s) will be set as default ‘all on’...
-
Page 6: System Settings
– A reminder alert will be triggered if there are any new or acknowledged alarms in the AK-SM 800AL. The time between alerts is configurable and the AK-SM 800AL will check to see if there are any active (new / acknowledged) alarms, every x minutes. -
Page 7: Daily Operation
Acknowledging current alarms When a new alarm or alarms are received by the AK-SM 800AL the alarm icon will update with the count of active and acknowledged alarms. If configured to do so, the AK-SM 800AL will turn the front LED red and will emit an alarm buzzer sound. - Page 8 Alarms that are no longer in error condition will be shown in this screen. Screen saver The AK-SM 800AL has a screen saver feature that protects the screen from ‘image burn-in’ and offers a continuous live status of current system alarms. During screen saver mode one of two icons may be shown depending on alarm or system status;...
-
Page 9: Product Specifications
- Regulation 2005/37/EC - EN 12830, 07-1999 - EN 13485, 11-2001 Approvals - CE 080R1213 - C-Tick 080R1214 - UL E31024 Ordering Type Function Code No. AK-SM 800AL Alarm Logger 080Z4014 RS8HR102 | 9 © Danfoss | ADAP-KOOL® | 2018.01... - Page 10 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alternations can be made without subsequential changes being necessary in specifications already agreed.
