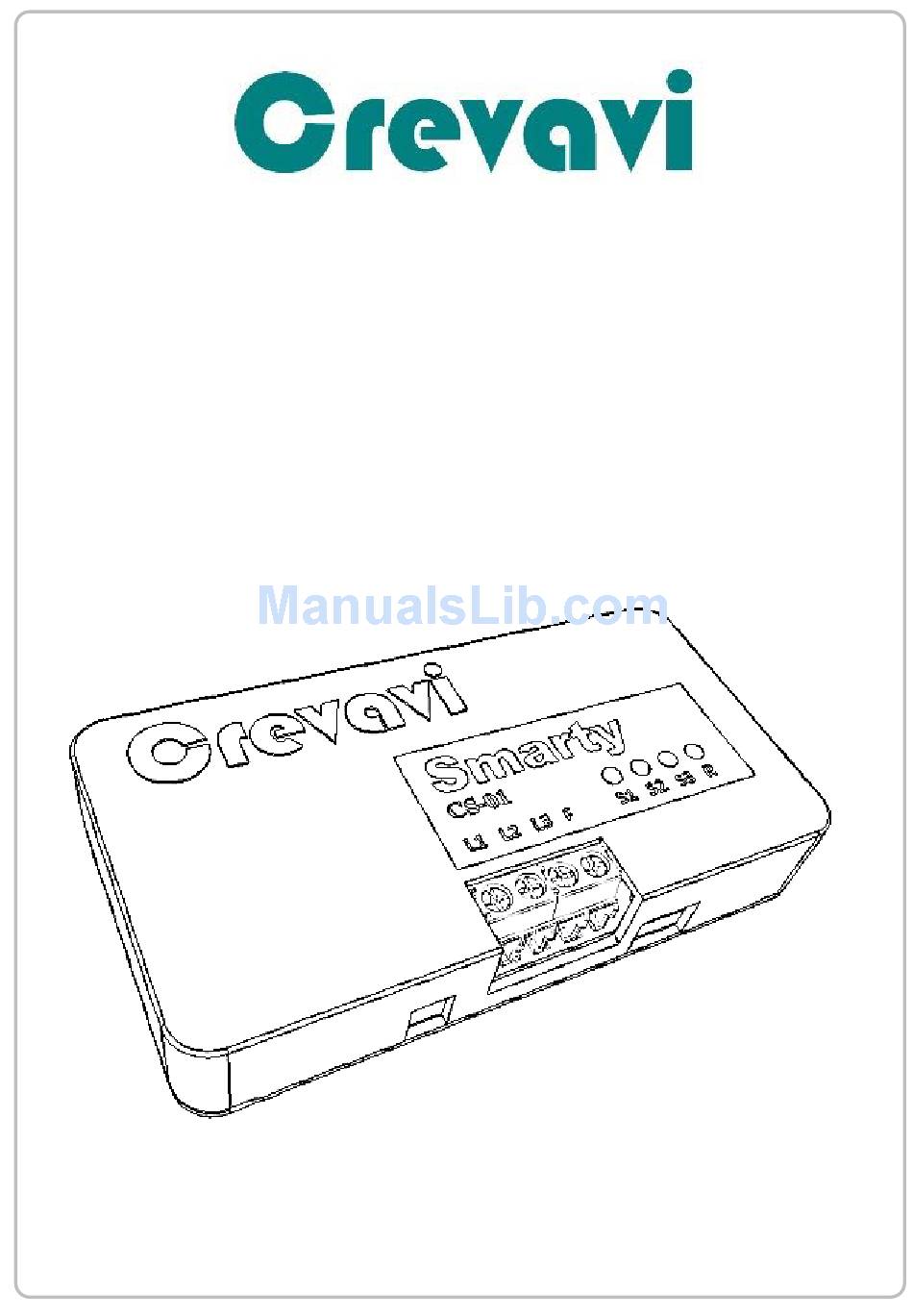

- Page 1 Smarty Quick Reference Guide Version: 1.2...
-
Page 2: Table Of Contents
Download Smarty App Introduction ..............3 Product Functionality ............3 Warning ................5 Wiring ................6 Smarty App ..............12 5.1. Configuration: ..............12 5.2. Operation ............... 15 Page 2 of 16... -
Page 3: Introduction
1. Introduction Crevavi Smarty – A smart switch to provide automation to any and every house lighting applications. It can retrofit into any of the existing switchboards and you can use your smart phone to operate light or fan switches. - Page 4 ❖ Smarty App ▪ Home • User can create “groups”, like Bedroom, Hall, Kitchen, etc. Where multiple devices could be connected to one/more which boards • Once smarty is configured (process explained in section 4.1), it shows the group on home screen •...
-
Page 5: Warning
• Switches can be scheduled for ON/OFF at a scheduled time, 3 schedules per switch can be configured. 3. Warning o Any work with AC mains must be done by trained professional o Main switch must be switched off before performing any wiring o Internal parts of the device conduct high voltage AC / DC current. -
Page 6: Wiring
4. Wiring Smarty box fits inside most traditional switch boxes, and attach to existing wiring. There are three types of wires to be connected o Light/Fan outputs – on an existing switch-board light/fan wires are connected to switches, remove them from switch, and connect them to output terminal of smarty. - Page 7 Step-2: Open the switch board, and note the connections Step 2 Page 7 of 16...
- Page 8 Step-3: Remove the light/fan wires from switch Step 3 Page 8 of 16...
- Page 9 Step-4: Connect these disconnected wires to smarty L1, L2, L3, and R terminals Step 4 Page 9 of 16...
- Page 10 Step-5: Connect the switches to input S1, S2, S3, and F wire Step 5 Page 10 of 16...
- Page 11 Step-6: Connect Phase and Neutral Step 6 Finish: Make sure there are no open wires. Close the switch box, and Switch on Mains Page 11 of 16...
-
Page 12: Smarty App
5. Smarty App Download and install the Smarty app from google play – search for “Crevavi Smarty”, or scan the QR code on front page to directly get the google play link for the app. Install and Open the App 5.1. - Page 13 ✓ Step-4: Press on “Add Device” icon on top of screen to pair a Smarty box. This process with scan for available smarty boxes and connect automatically to the one which is within 1ft proximity. You may touch the screen for manual configuration.
- Page 14 ✓ Step-5: You may press on each of the switches icon and name to modify it. Select a suitable icon for each your switch, and name them. ✓ Step-6: Schedule for each switch can be configured here by pressing the schedule button on right side of switch name.
-
Page 15: Operation
wattage of the light connected to individual switches by pressing on the wattage field. This will provide more accurate utilization data. 5.2. Operation ✓ Smart app shows the groups configured on home screen ✓ Touch on a group to connects to smarty-boxes (within proximity) configured for that... - Page 16 For support, please contact us Visit: www.crevavi.com/smarty Call us: +91 821 2518805 Mail us: contactus@crevavi.com Page 16 of 16...
