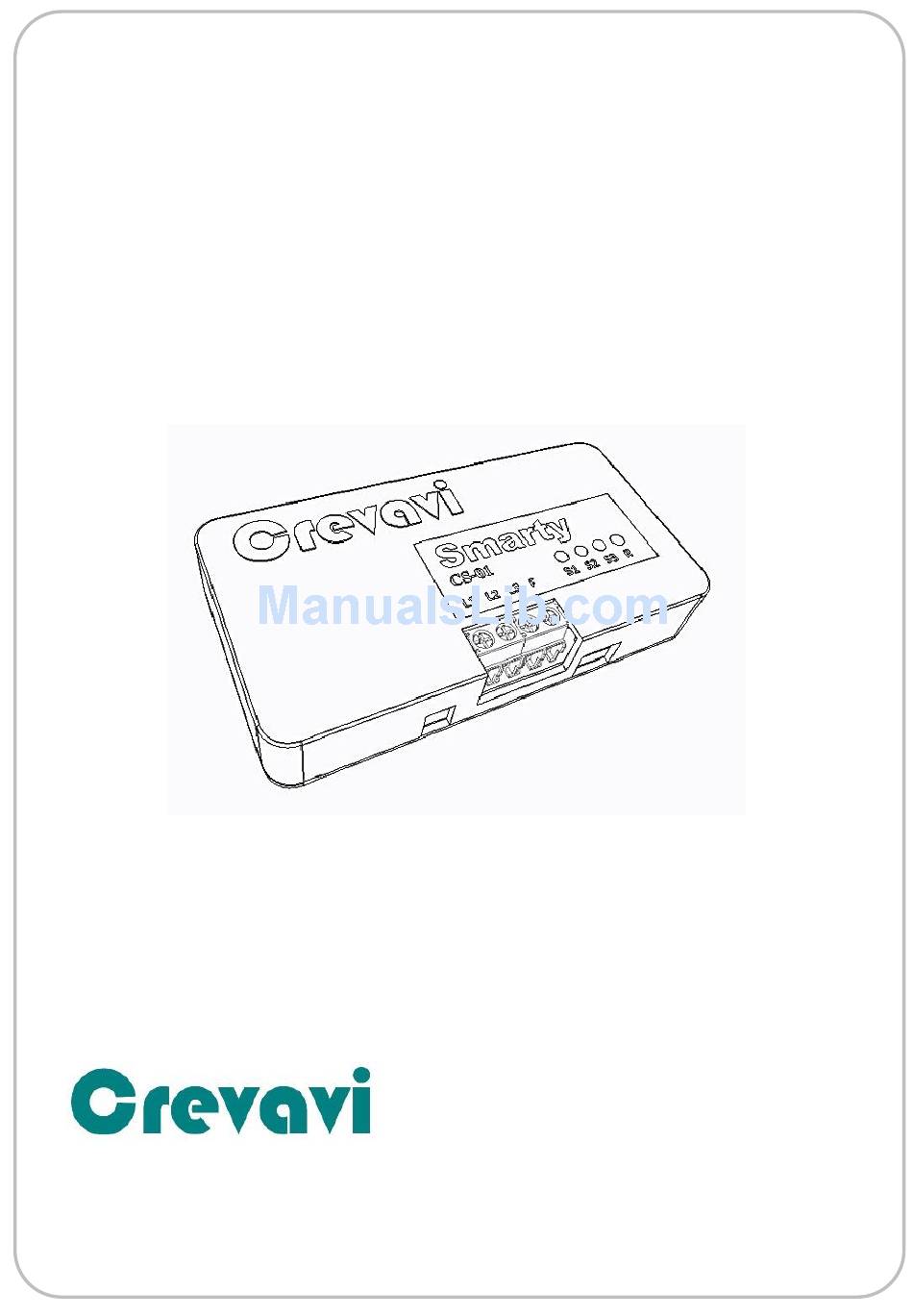

- Page 1 Smarty Quick Reference Guide Version: 0.2 Date: 16 November 2017...
- Page 2 Contents Introduction ................................3 Product Functionality ..............................3 Warning ..................................3 Wiring ..................................4 Smarty App ................................6 5.1. Configuration: ............................... 6 5.2. Operation ................................8 Specification ................................8 Crevavi Confidential Page 2 of 8 Document Template V1.0...
- Page 3 Crevavi Smarty – A smart switch to provide automation to any and every house lighting applications. Crevavi Smarty can be retrofit into any of the existing switchboards and you can use your smart phone to operate light or fan switches.
- Page 4 4. Wiring Smarty box fits inside most traditional switch boxes, and attach to existing wiring. There are three types of wires to be connected • Light/Fan outputs – on an existing switch-board light/fan wires are connected to switches, remove them from switch, and connect them to output terminal of smarty.
- Page 5 Step-3: Remove the light/fan wires from switch Step-4: Connect these disconnected wires to smarty L1, L2, L3, and R terminals Step-5: Connect the switches to input S1, S2, S3, and F wire Crevavi Confidential Page 5 of 8 Document Template V1.0...
- Page 6 Step-7: Make sure there are no open wires. Close the switch box, and Switch on Mains 5. Smarty App Download and install the Smarty app from google play – search for “Crevavi Smarty” Install and Open the App 5.1. Configuration: For first time usage, the smarty-box(s) need to be paired with the app: Step-1: Open Menu ->...
- Page 7 Step-3: You may press on the new group icon and name to modify it. Select a suitable icon for your group and name it. Step-4: Press on “Add Device” icon on top of screen to pair a Smarty box. This process with scan for available smarty boxes in the proximity, and list the device IDs.
- Page 8 Note: Smarty is capable of monitoring utilization of each light/fan connected to it. It is recommended to enter the wattage of the light connected to individual switches by pressing on the wattage field. This will provide more accurate utilization data.
