CLAMP MECHANISM ORIENTATION
ADJUSTMENT

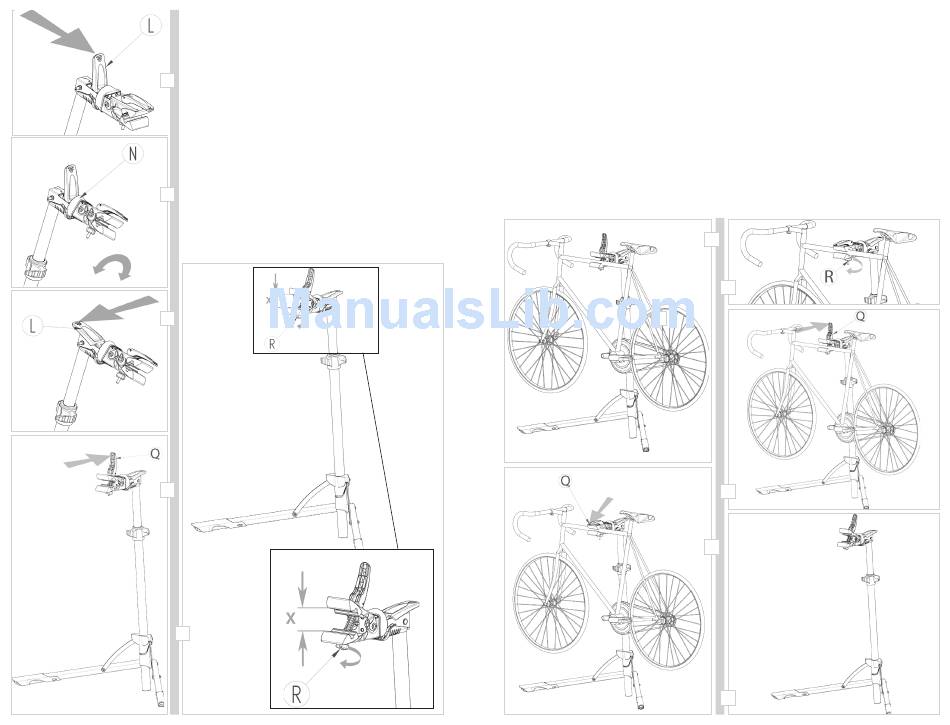

1. Release the clamp rotation fixing system by
pulling the lever (L) upwards (fig.10). Turn the
10 clamp disc (N) to the required position (fig.11).
Push the lever (L) back down to its initial
position to lock the mechanism again (fig.12).

BICYCLE CLAMPING

1. Open the clamp mechanism by pulling the
lever
(L) upwards (fig.13).
2. If the opening of the clamp jaws, dimension
11
"X", is not enough to insert the required part of
the bicycle, turn the handwheel (R) clockwise
to increase dimension X or counterclockwise to
decrease dimension X (fig.14).
12
13
14
3. Secure the bicycle (fig.15).
4. Close the clamp by pushing the lever (L) downwards (fig.16).
5. Fine adjustment of clamping pressure is possible by turning the handwheel (R)
(fig.17)
Turn clockwise to tighten the grip.
Turn counterclockwise to decrease the grip.
6. It is now possible to proceed with bicycle maintenance.

BICYCLE REMOVAL

1. Open the clamp jaws by pulling the lever (L) upwards (fig.18).
2. Remove the bicycle (fig.19).
1
15
17
18
16
19
