Summary of Contents for Vogue 361280

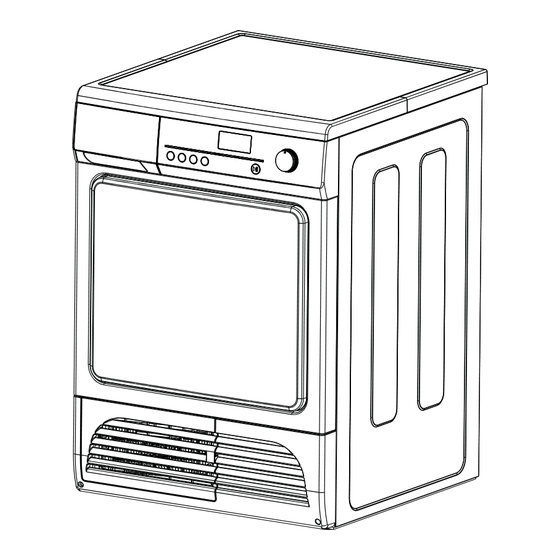

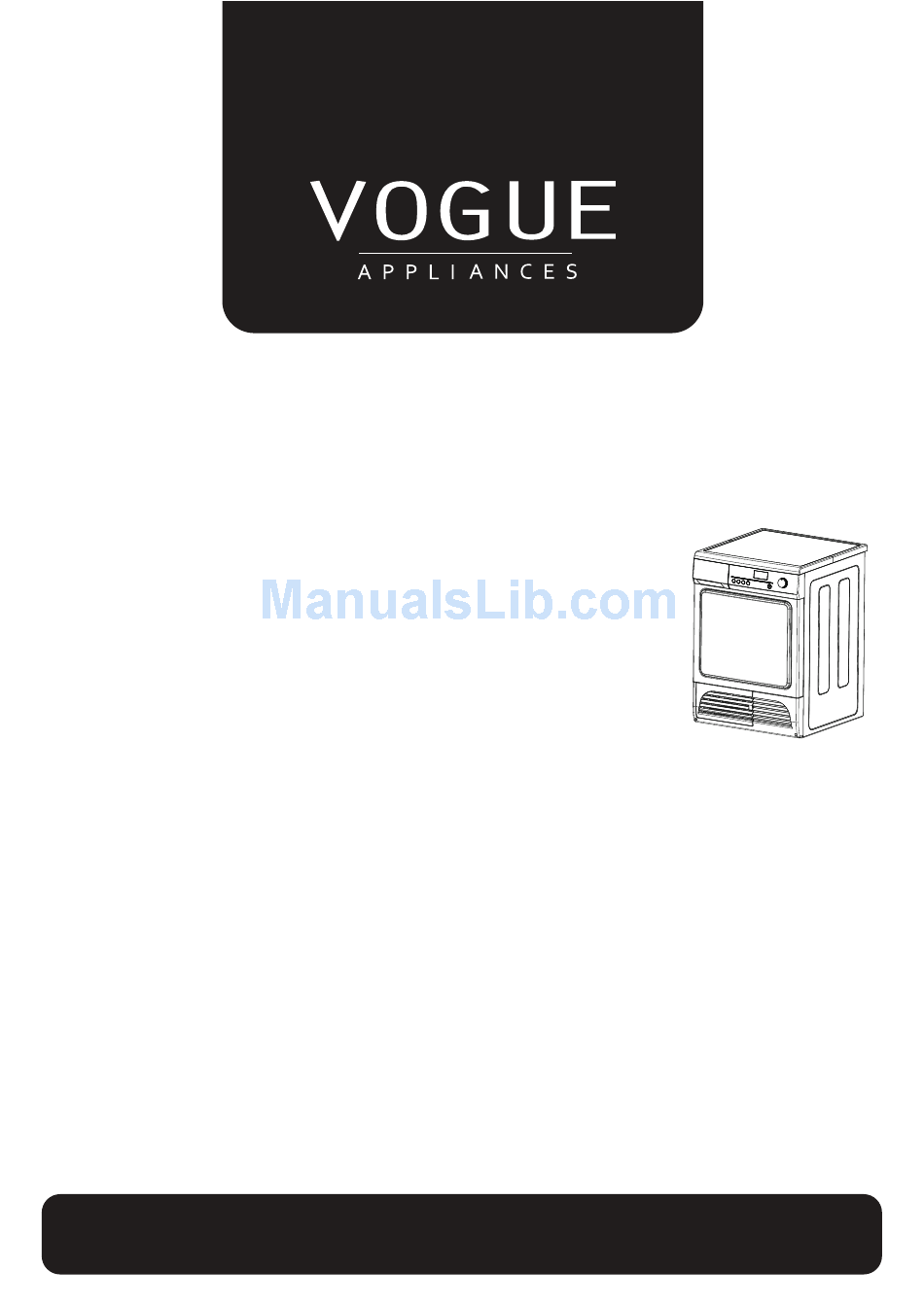

- Page 1 INSTALLATION INSTRUCTIONS USER GUIDE VOGUE Condenser Dryer 8kg 361280 To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time...
- Page 2 Electric diagram............24...
- Page 3 Do not install the appliance close to fire sources or heat sources. Read and understand thoroughly this safety instructions before use.The items indicated here are very important safety Do not rest any burning candles or cigarettes on the appliance. precautions,which must be followed.Any failure and losses Do not install the appliance in places with dampness or suffer from rainfalls, caused by ignoring the above mentioned items and cautions mentioned in the operation and installation instruction are not...
- Page 4 The lint trap has to be cleaned frequently Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
- Page 6 You can choose different programme base on your different clothes materials.The device has the function with sensor the moisture in order to automatically adjust the drying time for optimal drying.This drying system is fit for cottons,synthetics sections and Anti-Bacterial, silk programme. Depending on the programme,different functions can be combined.These must be selected after choosing the desired programme and before depressing the Start/Pause button.
- Page 7 If you select other programme becasuse of incorrect operation while the programme is running,the display shows Ers(error). It comes on after each program and also when the water tank is full.which remind you to empty the water container.Note! Empty the water container after each program to avoid the alarm when use in next time.
- Page 8 The function will be released in the following cases: Open the door during operation Take out condenser during operation Water tank full You can set again the “Child Lock” function when you restart the machine.
- Page 9 Jeans,work clothes and so on. Heavy Jeans,work clothes and so on. Strong Damp recommended loads are not too tightly packed; Iron Extra Cupboard Iron Drying thick or multi-layered textiles, 30’,60’,90’ e.g.terry towelling items.For drying individual items of laundry or for small volumes. Anti-Bacterial Silk Freshen-up...
- Page 10 Water container emptied Water container collects all of the water from condenser.Water container need to be emptied after every drying cycle.If the water container is full, an active programme will break off automatically. light will comes on and the buzzer sounds.In order to continue the programme,the water container must first be emptied.
- Page 11 Use Process Humidty sensor In the movement process,this device is used for induction clothing humidity,it means that it must be carried on cleaning.Major cause of clean is must scour out the calcium oxide boiler which on the sensor surface up.Clean the sensor in the tumbler (See picture).
- Page 12 Earth note This appliance must be earthed.In case of failure or damage,earth can provide a minimum resistance to reduce the possibility of electric shock.The power cord has grounding wire with device and power cord with plug.Plug must be inserted into a properly installed and grounded socket(in accordance with all local rules and standards).
-
Page 13: Environment Concerns
Environment concerns Appendix Check across the corner When press on the edge,the machine should not shake up and down.(please check two direction) when press on the top frame (across the corner),the dryer shakes,need to re-adjust the adjustable feet. Do not put stacks of blanket or a rope on the floor, which could generrate some heat and affect the machine running. -
Page 14: Electric Diagram
Electric diagram Appendix Electric diagram To save energy and to help protect the environment,we recommend that you follow these hints: Try to load the maximum capacity of the machine as small loads are uneconomical. Do not over-dry laundry,this avoids creasing and saves energy. Select the drying programme according to the type of laundry and the required degree of dryness.
