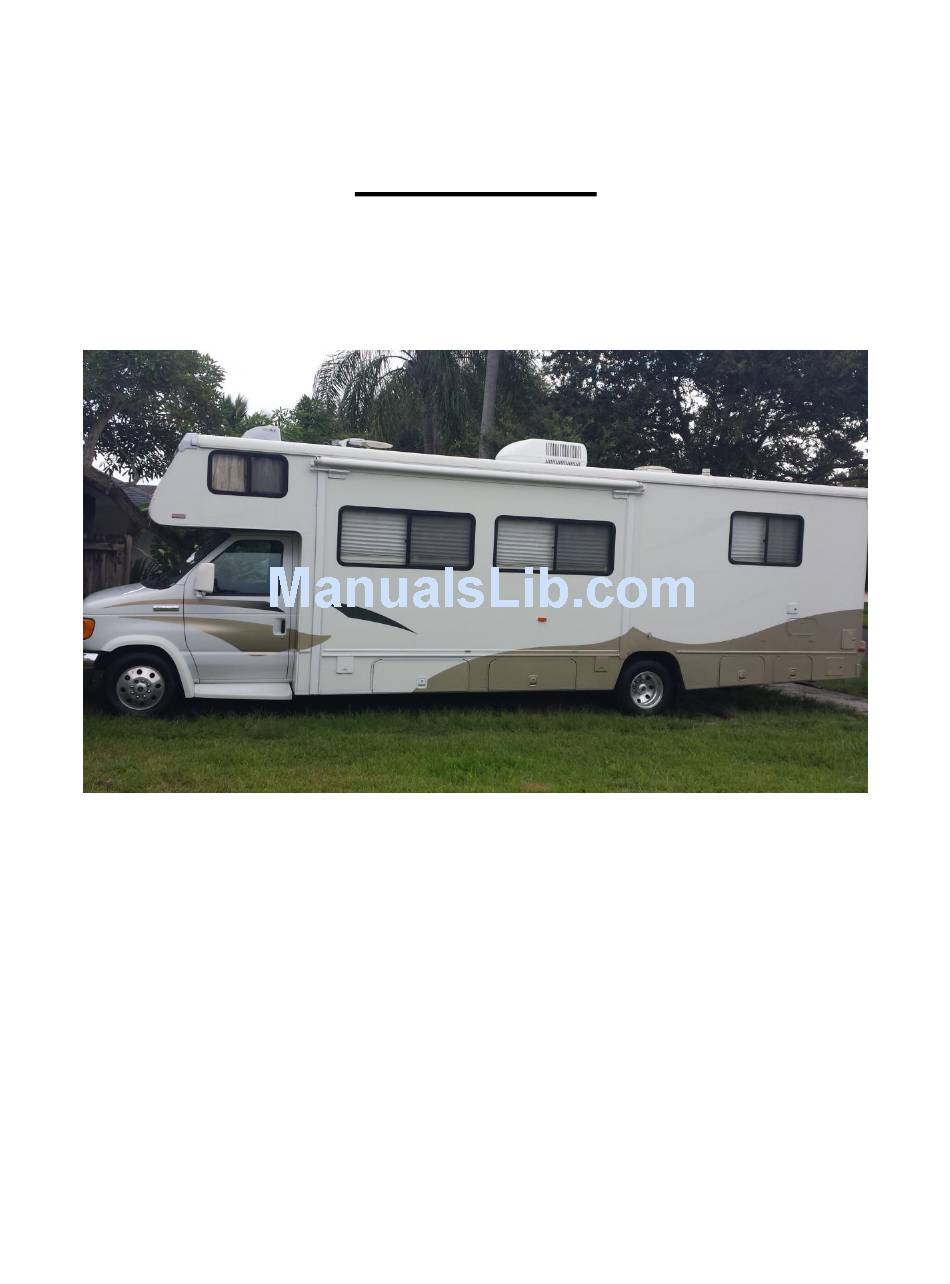

- Page 1 RV Manual Itasca Spirit 31’, Ford E450...
-
Page 2: Table Of Contents
Table of Contents Vehicle Master Battery Switch Vehicle Security Lockout Master Battery Switch Electric Power Source Generator Power Water Lavatory Propane Car Radio TV / DVD Player Cable Backup Camera Appliances Fridge Toilet & Sinks Exit switches Moon roofs Slide Outs Blinds Night Sleep Privacy Shades Converting Dining Table / Bed... -
Page 3: Vehicle Master Battery Switch
Vehicle Master Battery Switch The red nob to the right of the battery is a master on/off switch for power to the entire vehicle. It is primarily used for storage parking. Vehicle Security Lockout To start the RV, you must first disable the security kill switch for the ignition. To do so, use the small white square tag on the key chain and touch it to the black patch to the right of the steering wheel on the dash panel. -
Page 4: Generator Power
City Electric Power Source - The shore line hookup is located in the panel at the exterior rear on the RV driver side. The large black cable/plug must be unattached from the internal receptacle and plugged into the park’s electric access box. The RV uses 30 amp hookups. -
Page 5: Water
The Thermostat is located on the wall beside the dining table. There is a time delay built in for compressor to kick in. Please turn off when shutting down generator or disconnecting from park electric so that it is off for future startup. -
Page 6: Lavatory
Lavatory Dump – Hoses are in a container in the main rear storage bin. Dump valves are located in exterior driver side lav storage bin. Cap must be on during transit or risk $10K fine. Dump lines may be connected to park facilities when camped, or some parks have a dump station which you must drive up to upon exiting / checking out. -
Page 7: Car Radio
Car Radio / CD Player The vehicle radio has a power switch located to the left of the steering wheel, to select power source from either the house battery or conventional setting from the vehicle battery. TV/DVD Player The TV channels need to be set by using the remote control to access the menu feature to perform a channel scan either: through the cable when hooked up at a park, or by scanning the air using the internal digital antenna to pick up available channels in your vicinity. -
Page 8: Cable
Cable A park hookup is located at the back of the power shorecord bin at the rear driverside corner of the RV. Once a coaxial cable is attached to the RV and the park cable source, cable TV is available throughout the RV. You must run a channel scan on the TVs to assign channels. -
Page 9: Fridge
Fridge The fridge has a setting for electric, propane, or auto adjust. The gas mode is for use when the vehicle is in a remote setting. For park electric hookup or generator use, keep mode set on Auto only. Note: Fridge must be level to operate properly. If you are parked on a steep incline, it will not function. Note: The first time an RV fridge is powered on after having set several days, it may take up to 3-4 hours to cool down initially. -
Page 10: Moon Roofs
Moon roof Please don’t open the moonroofs during travel. They are not designed to be open while the vehicle is in motion on the highway. Slideouts To operate the slide-outs, the vehicle parking brake must be on. The control panel is located on the side of the cabinet at the entry door. - Page 11 Privacy Curtains Sleeping curtains can be drawn to enclose the sleeping compartment above the front cab. Also on board is a privacy shade for nighttime use, to ensure no one can se inside the RV through the front windshield. It is attached with snaps to either side of the bunk.
-
Page 12: Door Locks
Door locks The inside of the camper door has a red and a white locking switch. The red switch locks the handles to the door. It can be opened from the outside with the key, or from the inside red switch. The upper white switch is an additional security bolt for in- transit travel with children, or to provide additional security. -
Page 13: Awning
Awning This can be opened when parked and remaining stationary. See owner for demonstration. There is an awning metal rod for use in unlocking the security latch located at top of roller. The rod is in one of the exterior bins. To open, unlatch the gray travel clips from the posts. -
Page 14: Bunk Ladder
To close the awning: loosen the black knob, depress the grey tab at the upper end of each arm to release the inner arm. Slide the inner arm down towards the RV. Turn the directional lever on the end of the awning tube to the up arrow position. -
Page 15: Roadside Assistance
Roadside Assistance The RV has a spare tire in the event of a flat. By design, the RV does not include a jack due to the weight of the vehicle. During normal daylight hours, road rangers are along the main highways and have the capability to change the tire, usually for free. - Page 16 Comments: I strive to ensure that everything on the RV is in good condition and functioning as it should. Like a boat, constant maintenance is required to fix all the little things that occasionally need replacing. It is not always easy to know what needs to be addressed, when I am not personally using the RV.
